Dodge
>>
1990
>>
Shadow L4-135 2.2L SOHC
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Dome Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

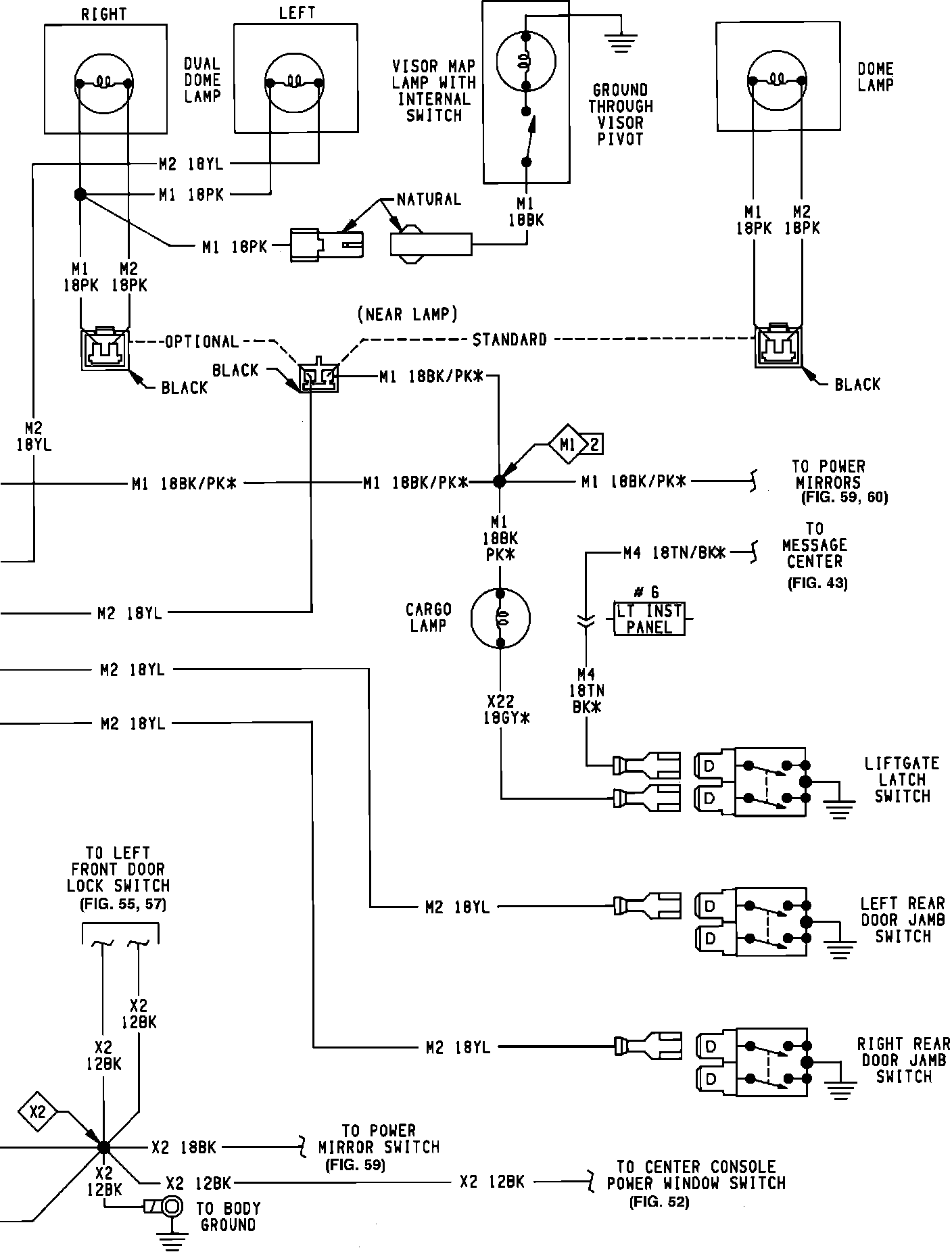

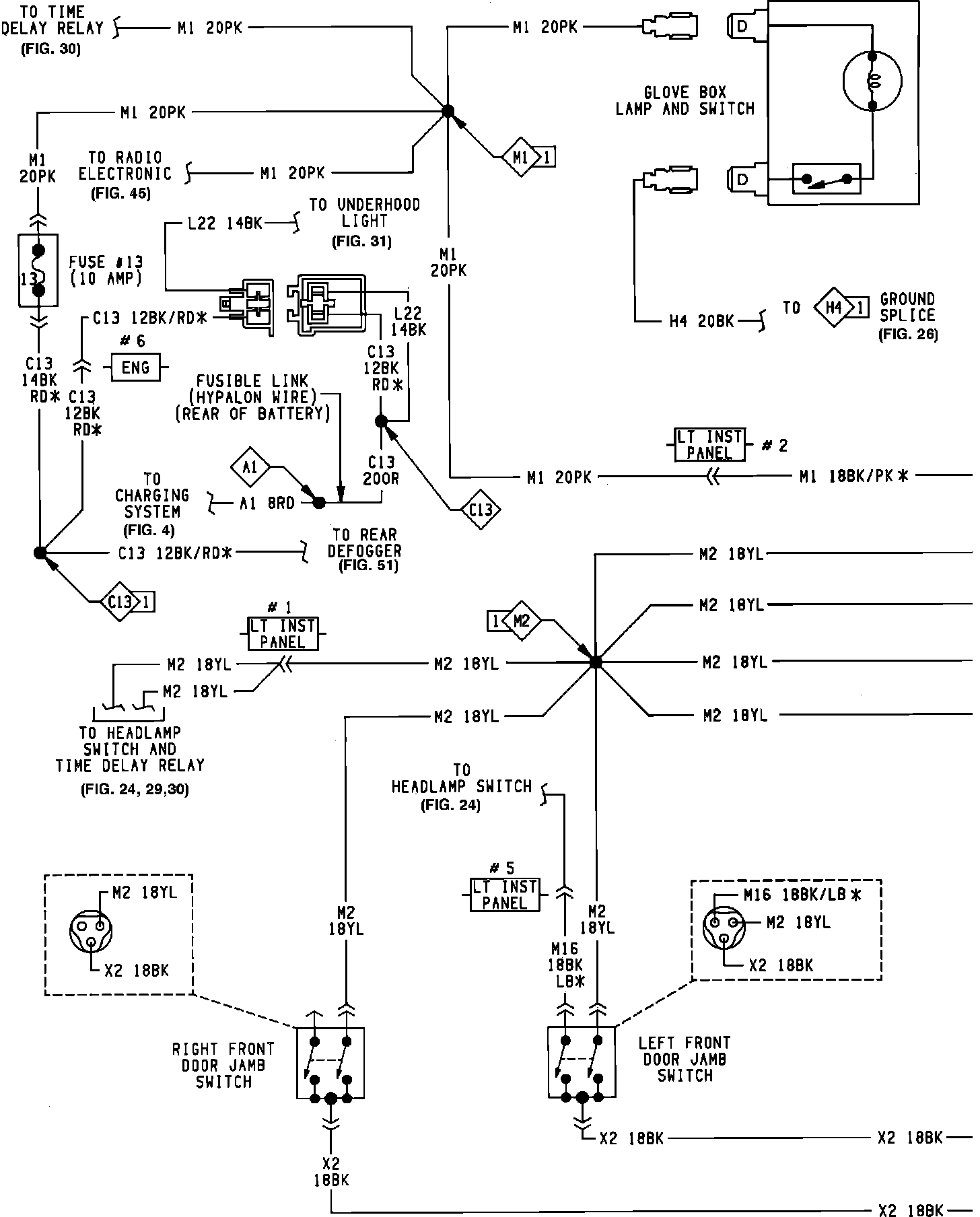

Dome Lamp:
Dome Lamp:
