Connector Views
Connector Views

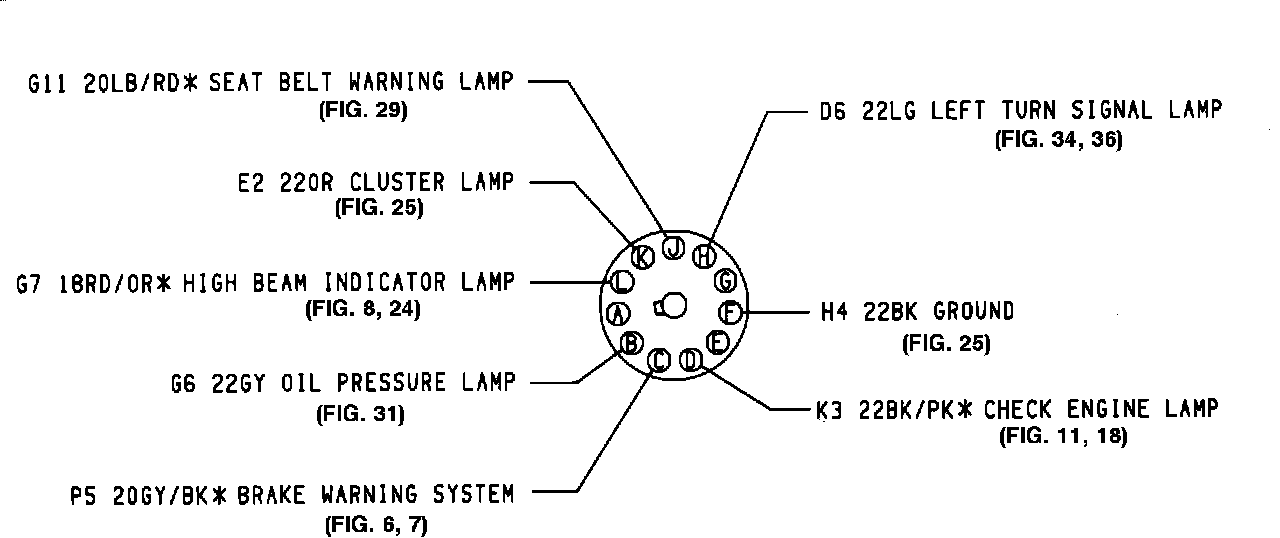

Left Printed Circuit Board Connector:

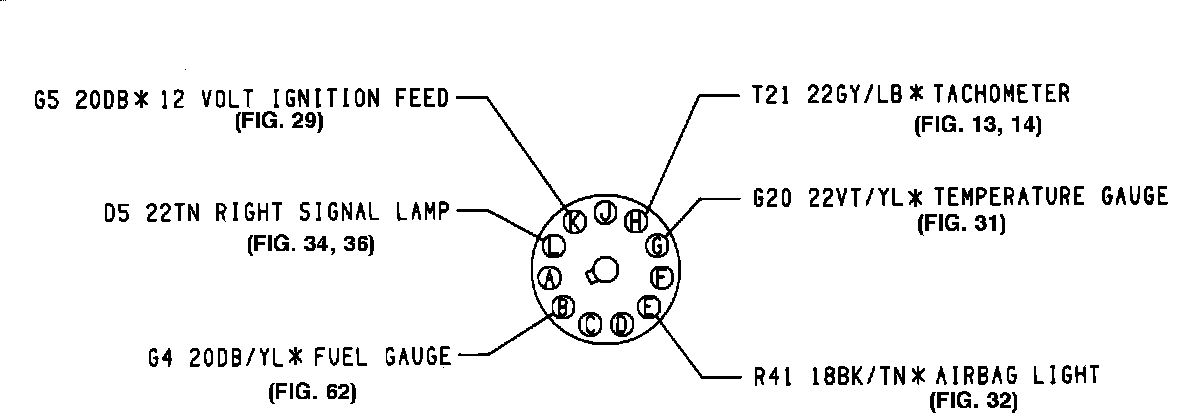

Right Printed Circuit Board Connector:
