Home
>>
Dodge
>>
1990
>>
Shadow L4-135 2.2L SOHC
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Testing and Inspection
>>

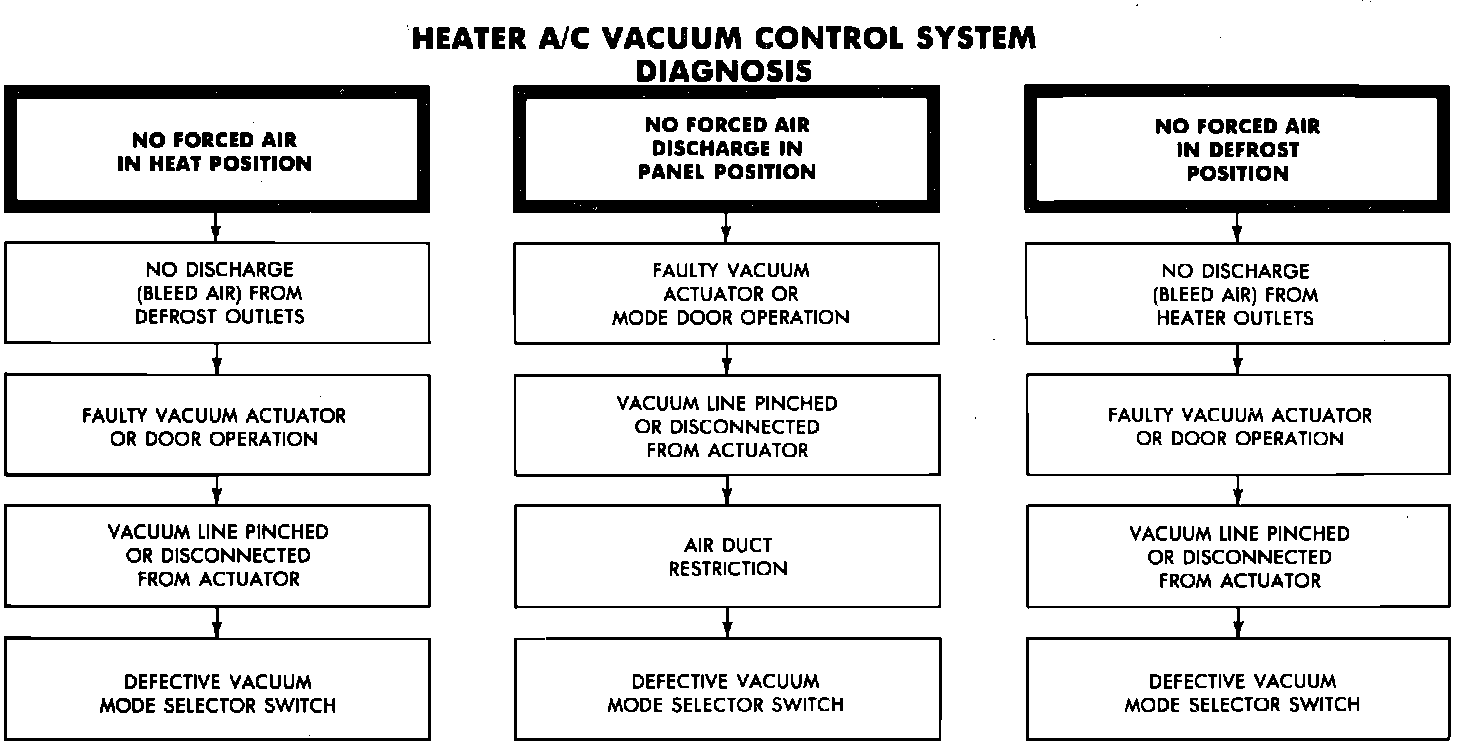

Vacuum Control System Diagnosis Chart
Vacuum Control System Diagnosis Chart
Heater & A/C Vacuum Control System Diagnosis:
