Home
>>
Dodge
>>
1990
>>
Shadow L4-135 2.2L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Driver/Vehicle Information Display
Driver/Vehicle Information Display

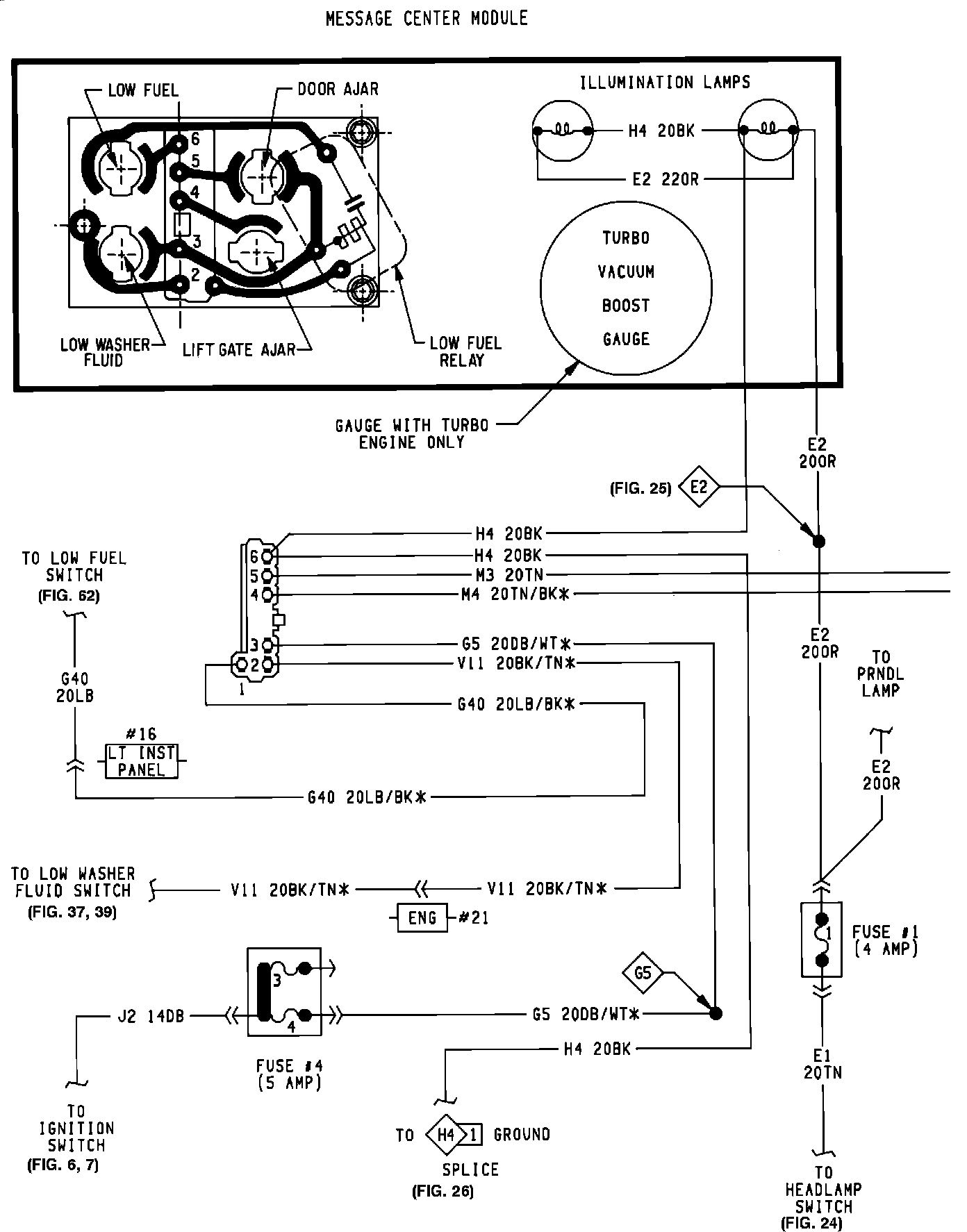

Door Ajar Switches & Message Center:
Door Ajar Switches & Message Center:
