Dodge
>>
1990
>>
Shadow L4-135 2.2L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>

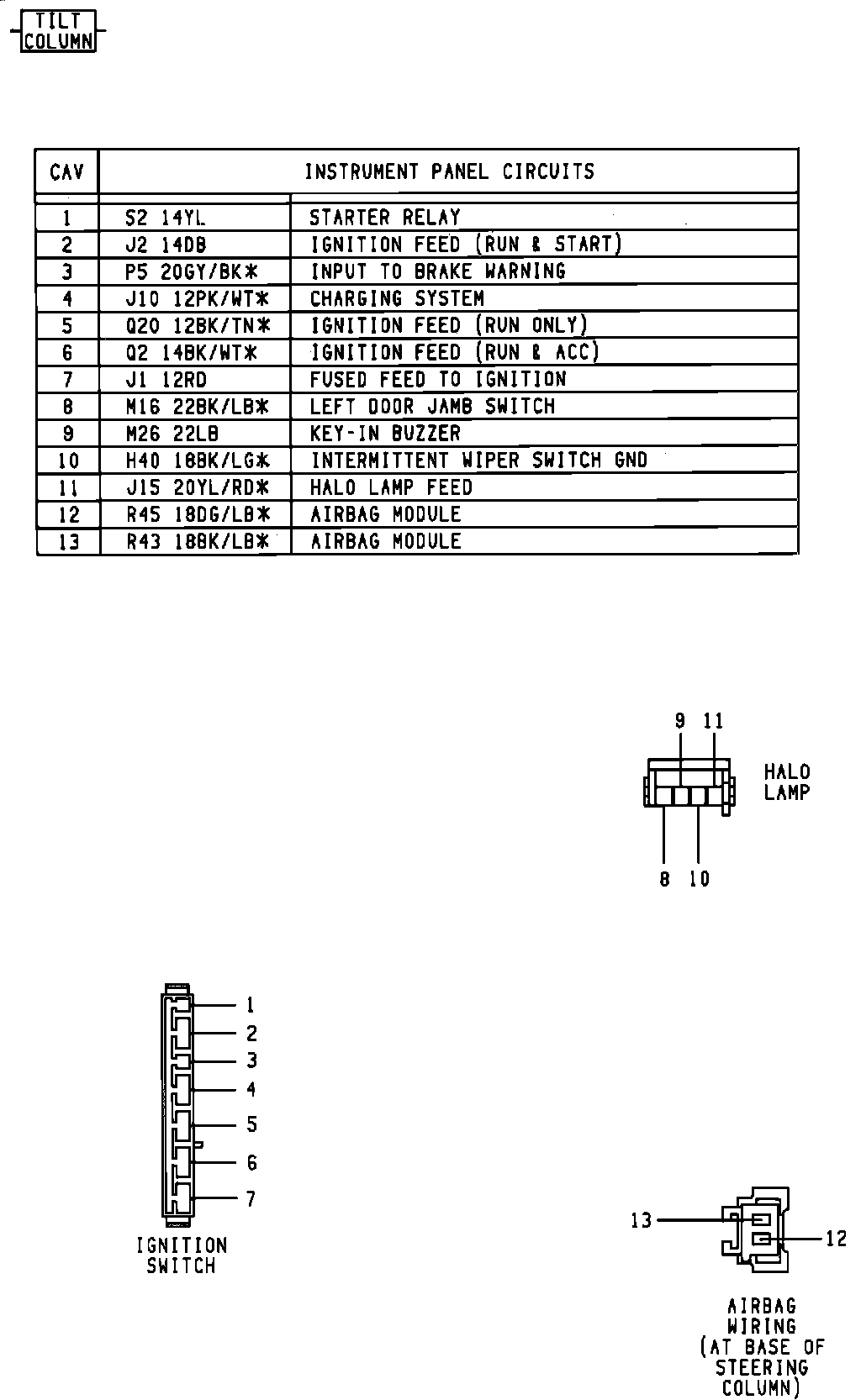

With Tilt
With Tilt

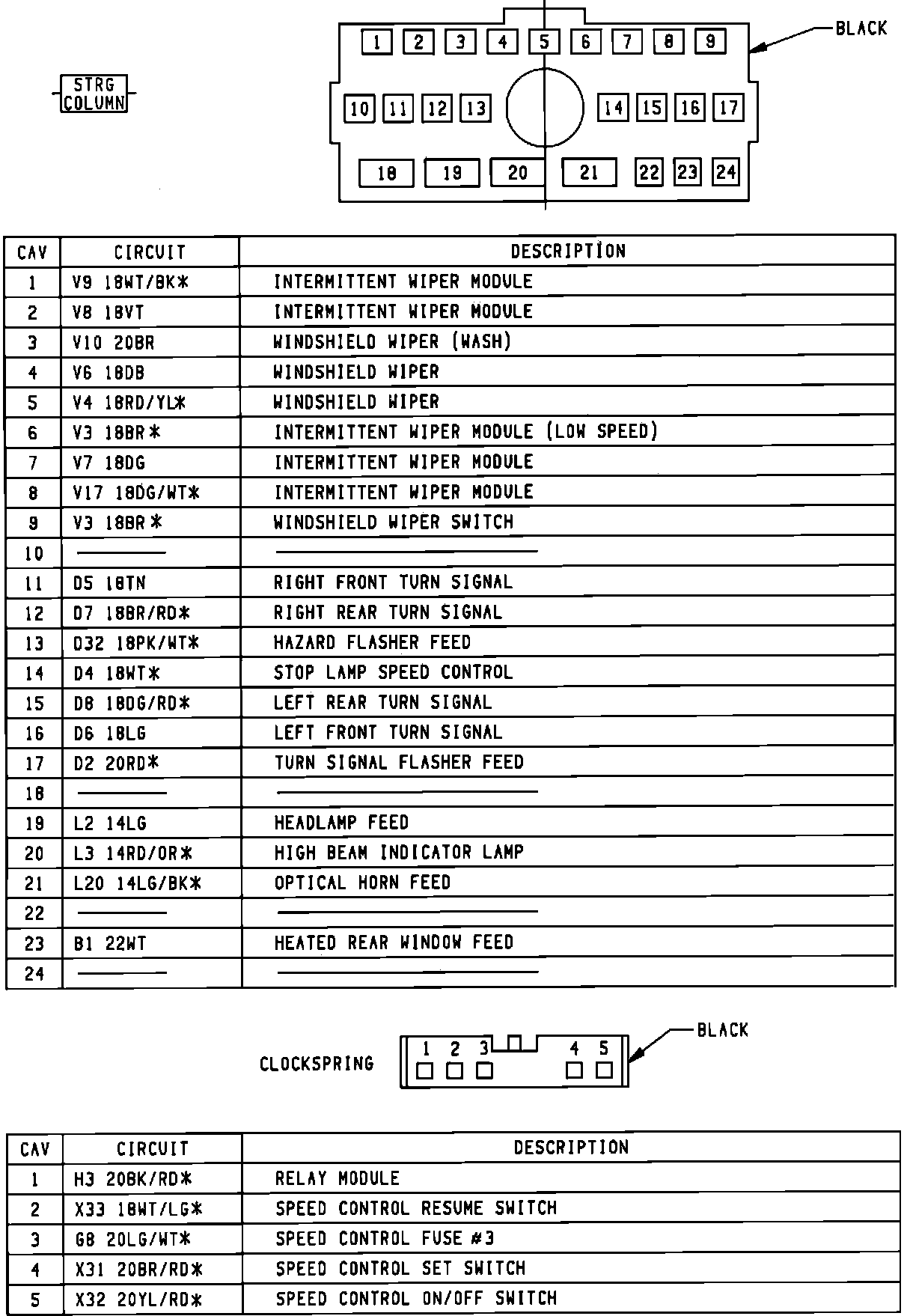

Steering Column Switch To Panel Connector - With Tilt:
Steering Column Switch To Panel Connector - With Tilt:
