Home >> Dodge >> 1990 >> Shadow L4-135 2.2L SOHC >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Seat Belt Systems >> 11 Checking G7 Wire For Open Circuit

11 Checking G7 Wire For Open Circuit

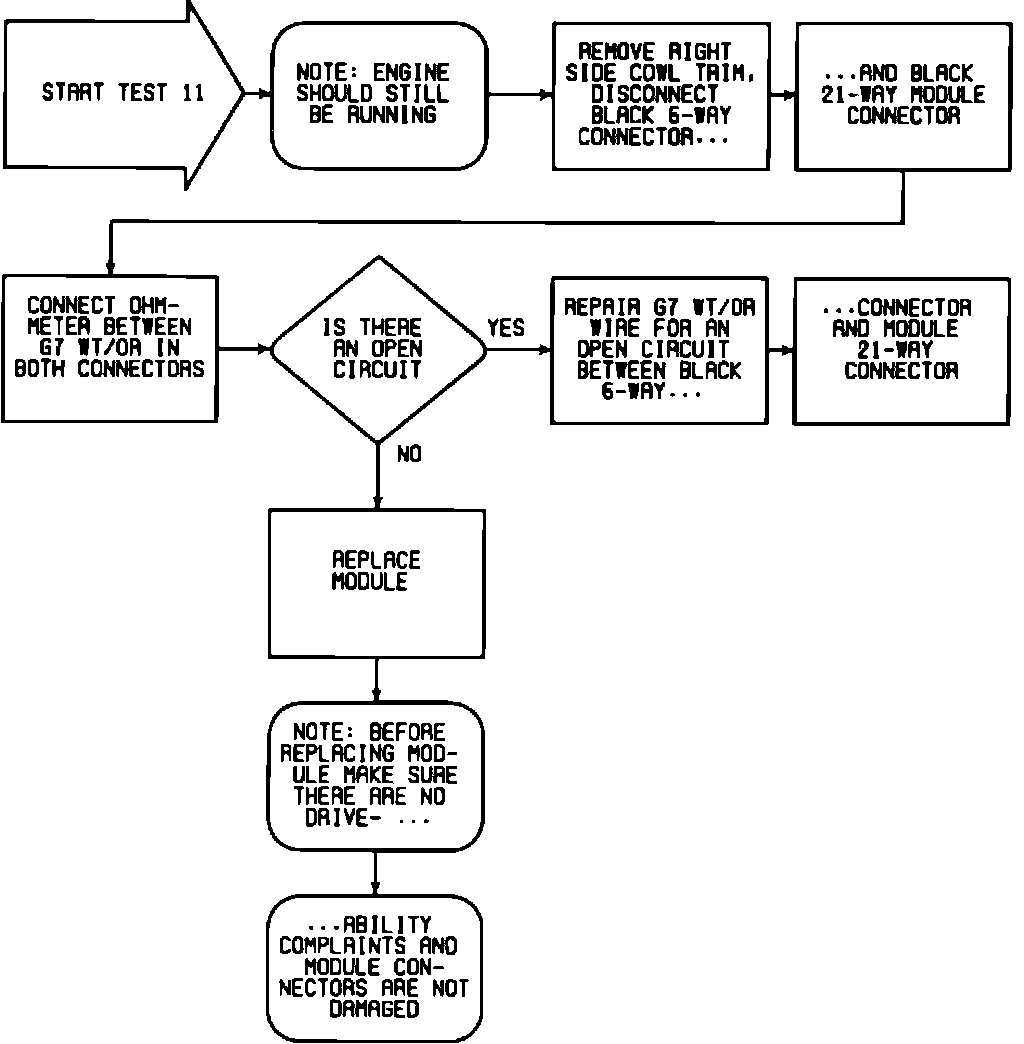

Fig. 113 Test 11 (Checking G7 Wire For Open Circuit):
