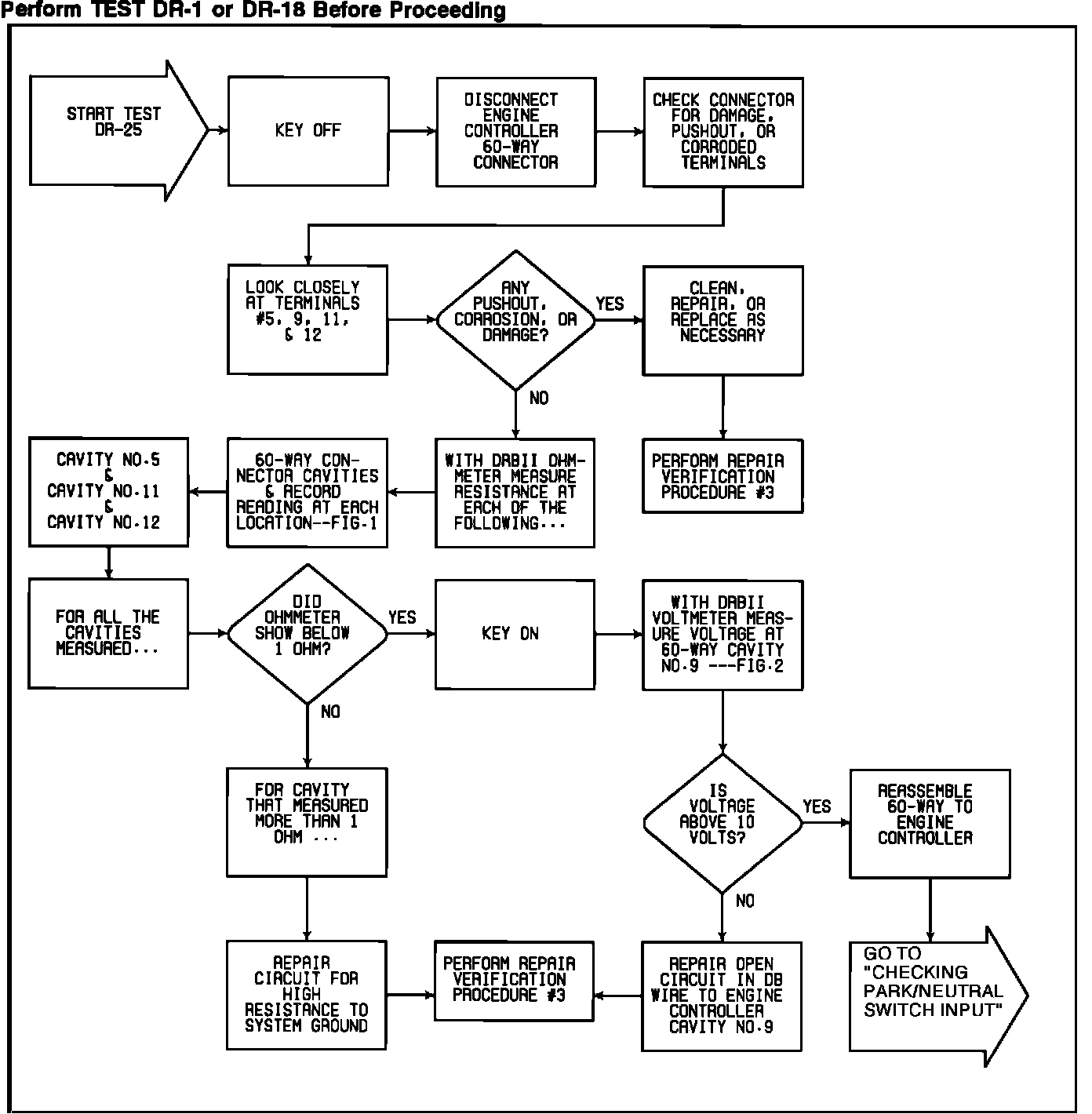

DR-25 Checking Engine Controller Ground & Power Circuits

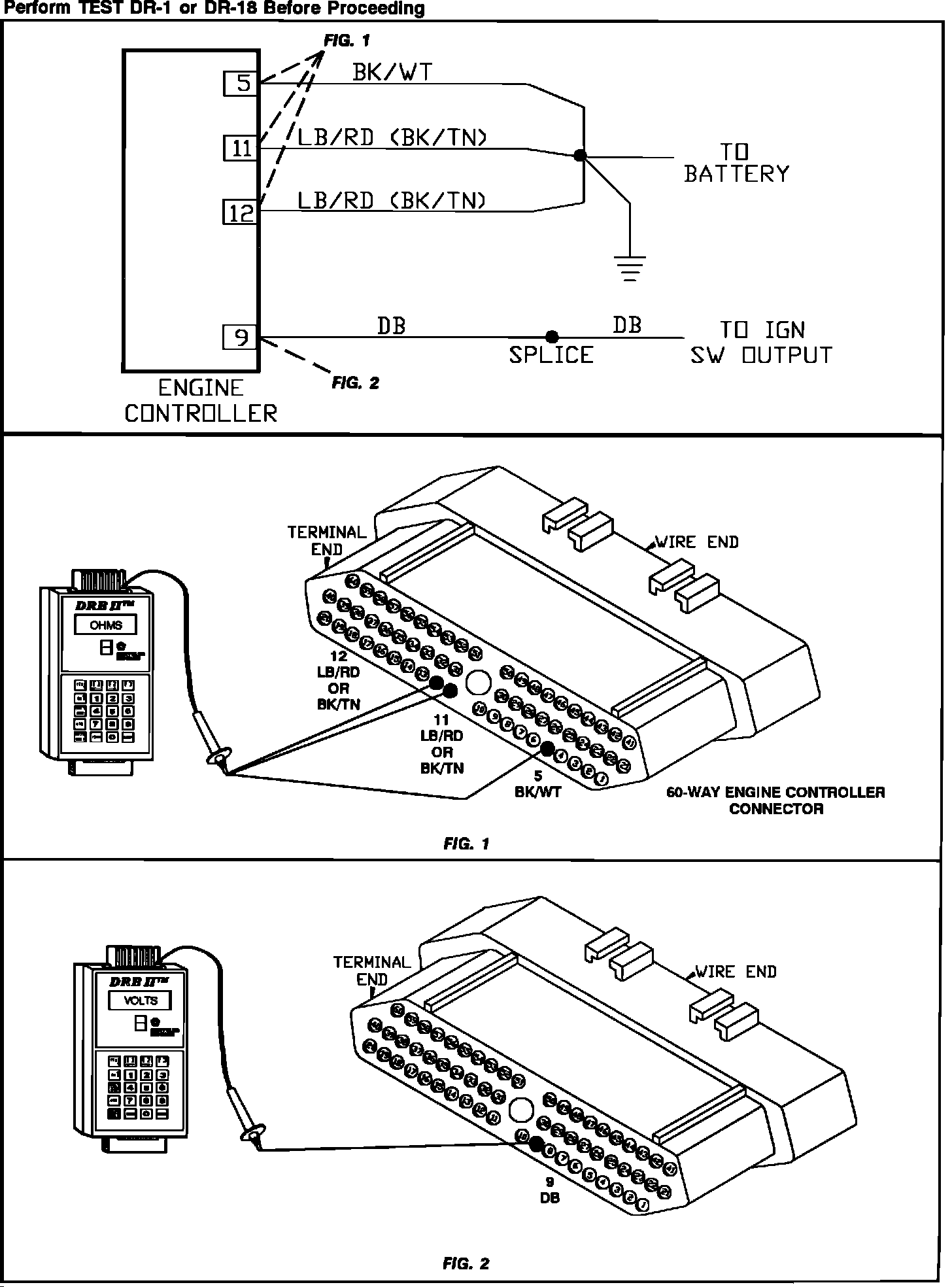

Checking Engine Controller Ground And Power Circuits:



Checking Engine Controller Ground And Power Circuits:
