Home
>>
Dodge
>>
1990
>>
Shadow L4-135 2.2L SOHC
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Antilock Brakes / Traction Control Systems
>>
Test 5 - Low Fluid/Parking Brake Fault
>>
Test 5B
Test 5B

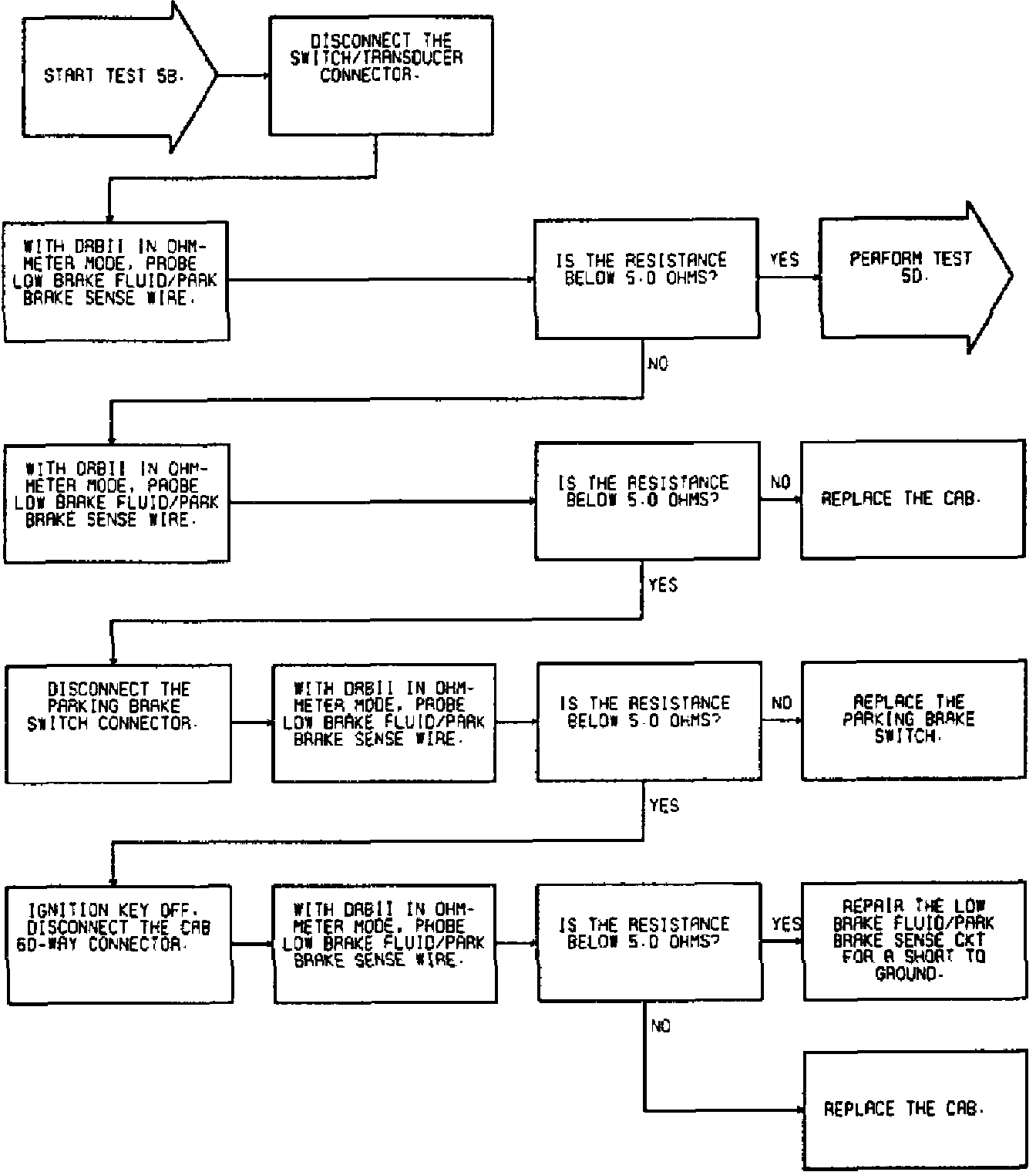

Fig. 106 Test 5B:
