Antilock Brakes / Traction Control Systems
>>
Test 17 - Primary Pressure/Delta Pressure Fault
>>
Test 17E
Test 17E

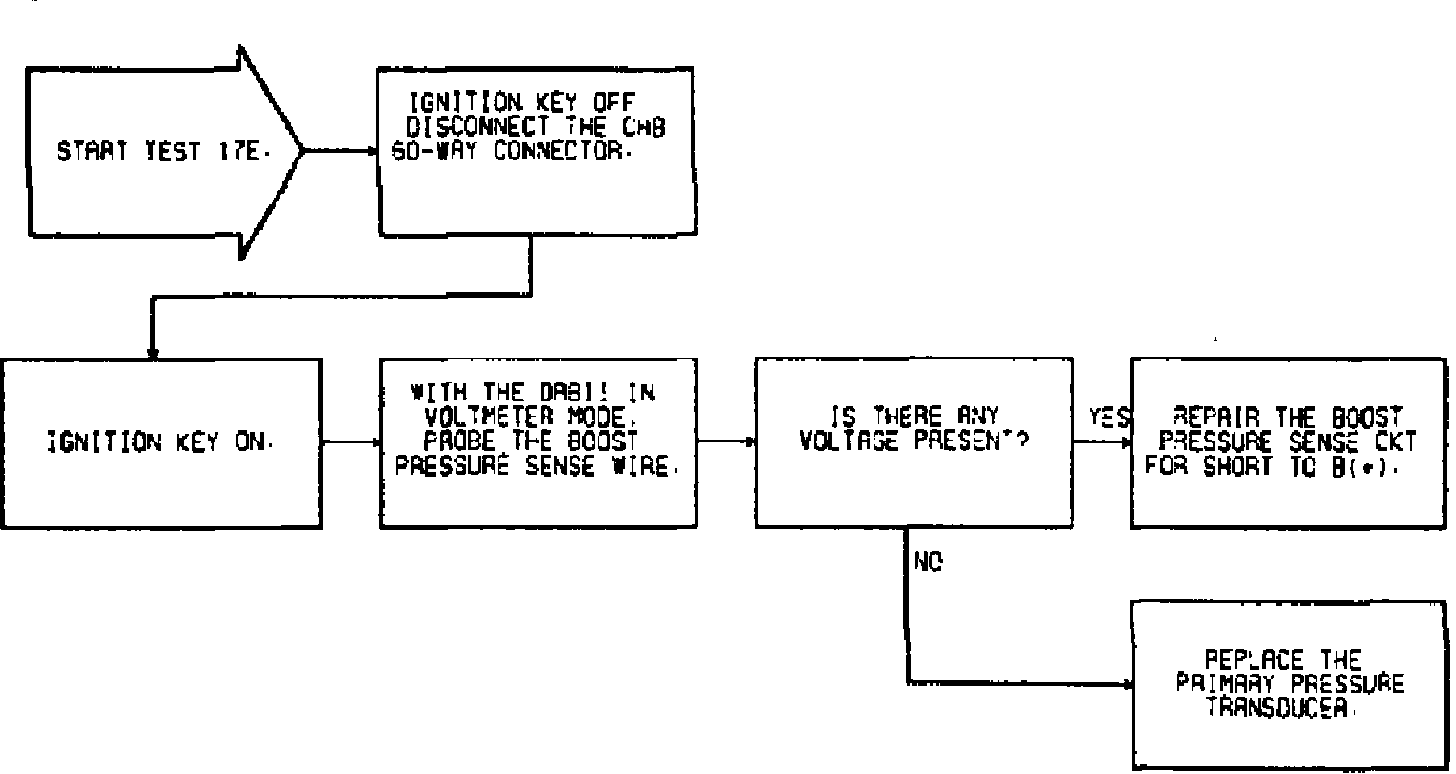

Fig. 137 Test 17E:
