Home >> Dodge >> 1990 >> Shadow L4-135 2.2L SOHC Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Driveability (DR) Tests >> DR-34 Checking Knock Sensor Output

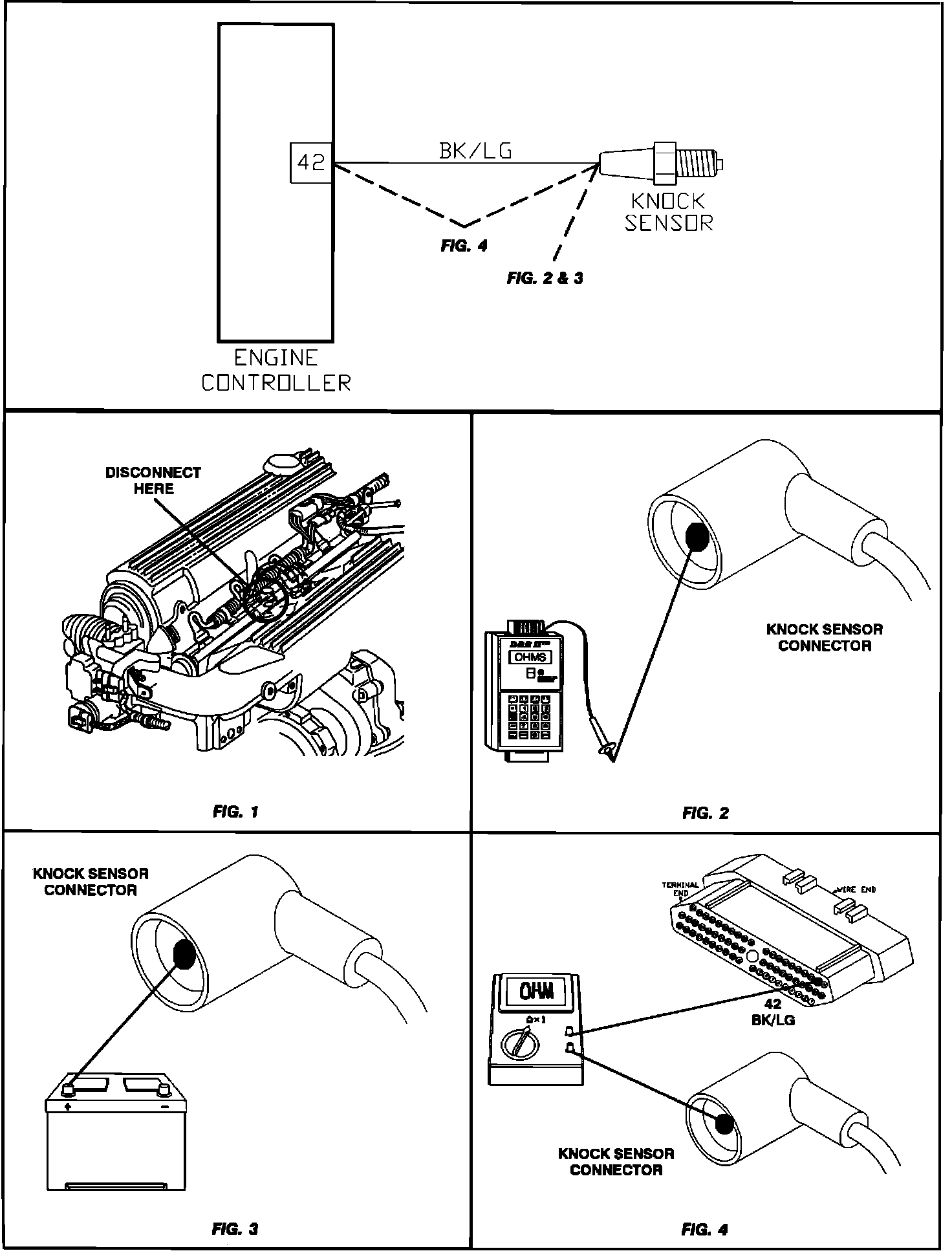

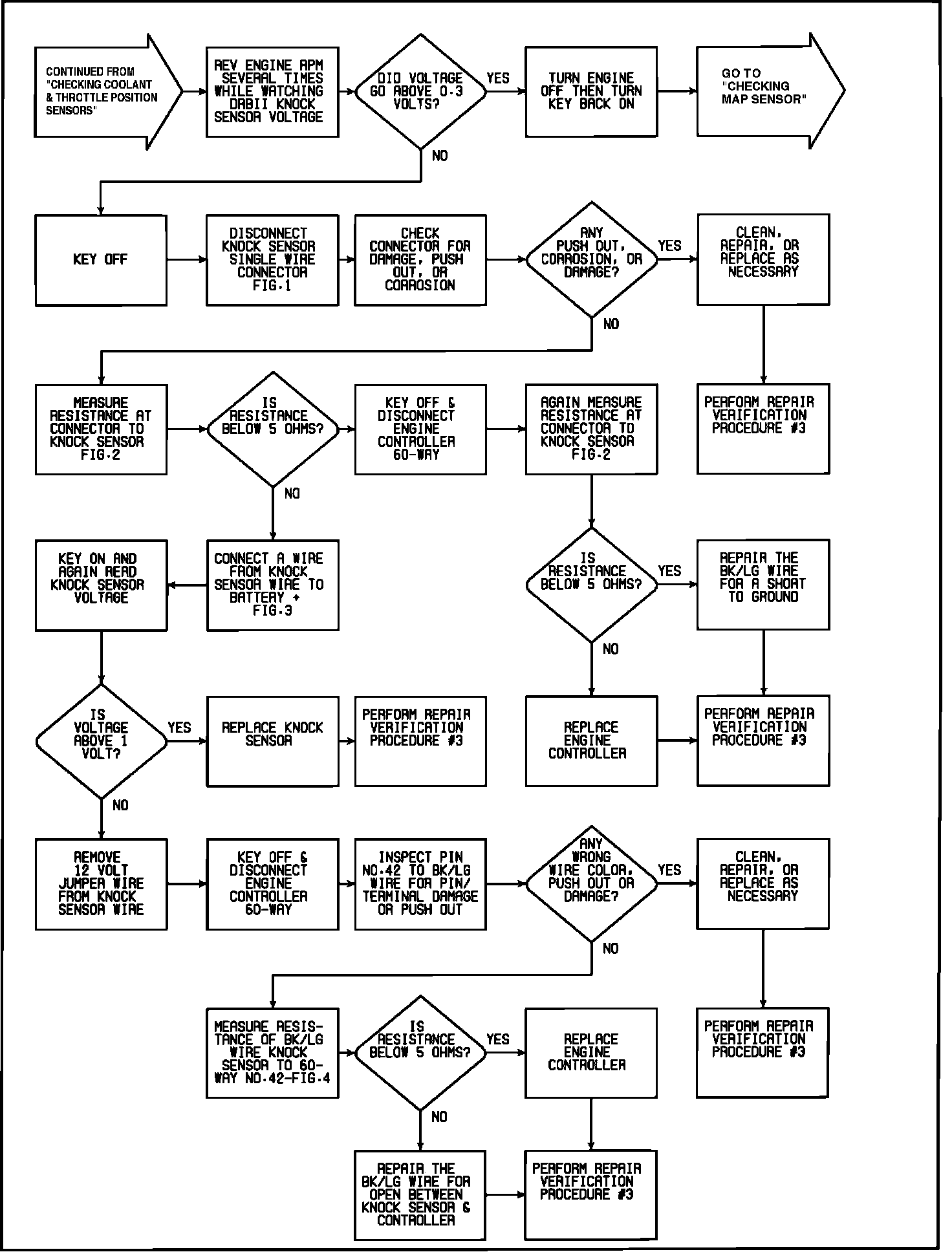

DR-34 Checking Knock Sensor Output

Checking Knock Sensor Output:



Checking Knock Sensor Output:
