Home
>>
Dodge
>>
1990
>>
Monaco V6-182 3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Restraints and Safety Systems
>>
System Diagram
System Diagram

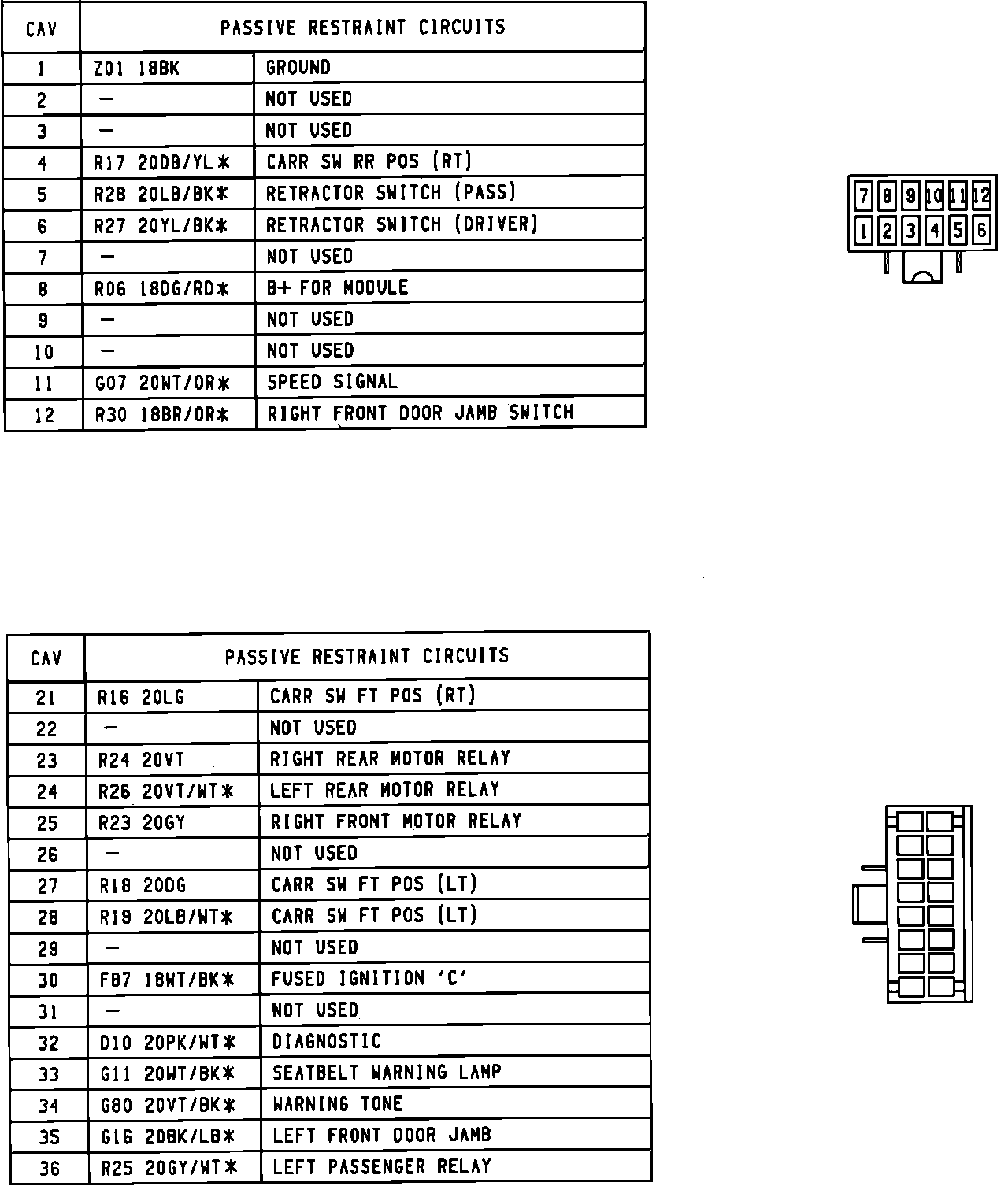

Passive Restraint Module Connectors:
