Instrument Cluster / Carrier
>>

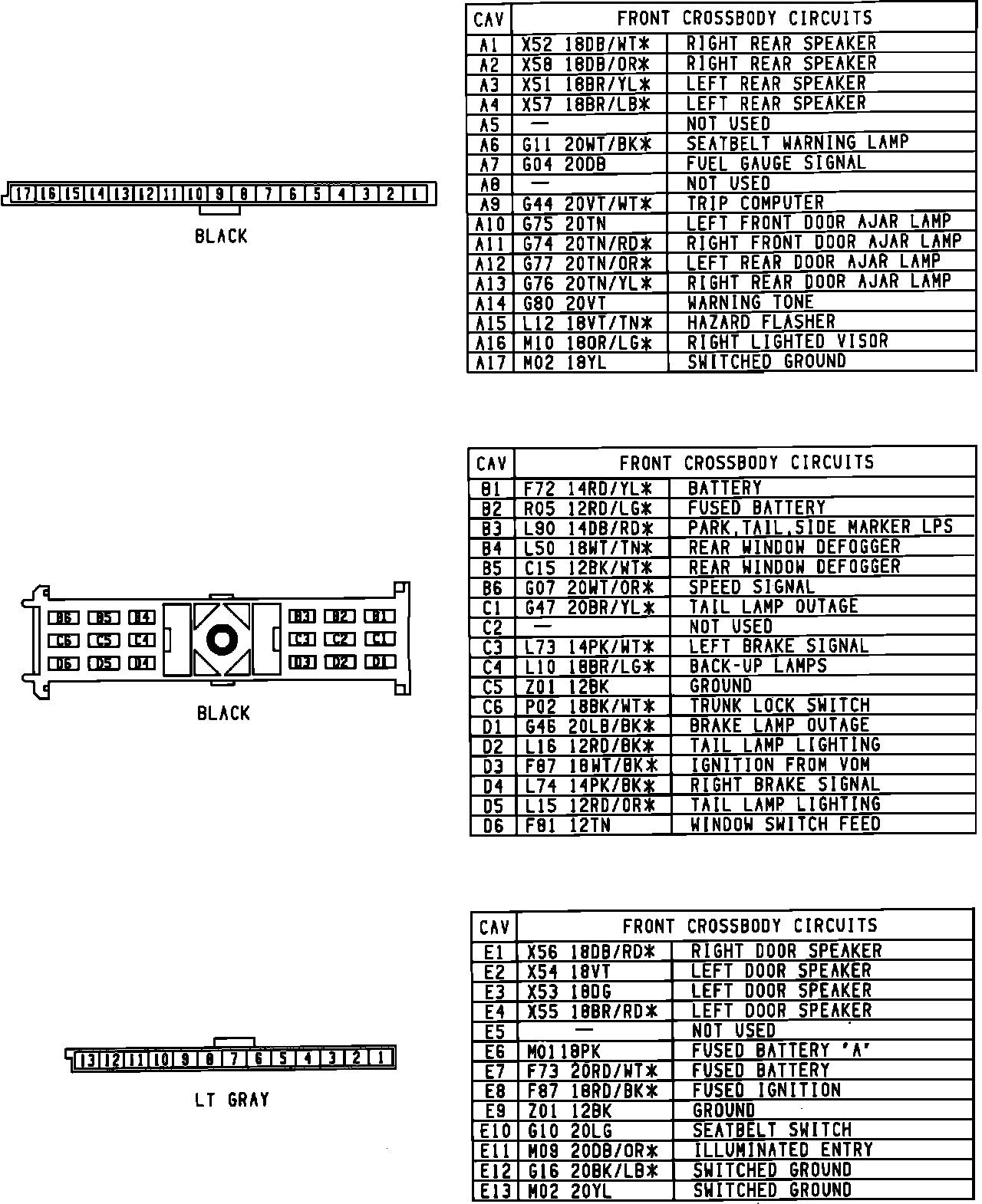

Front Crossbody
Front Crossbody

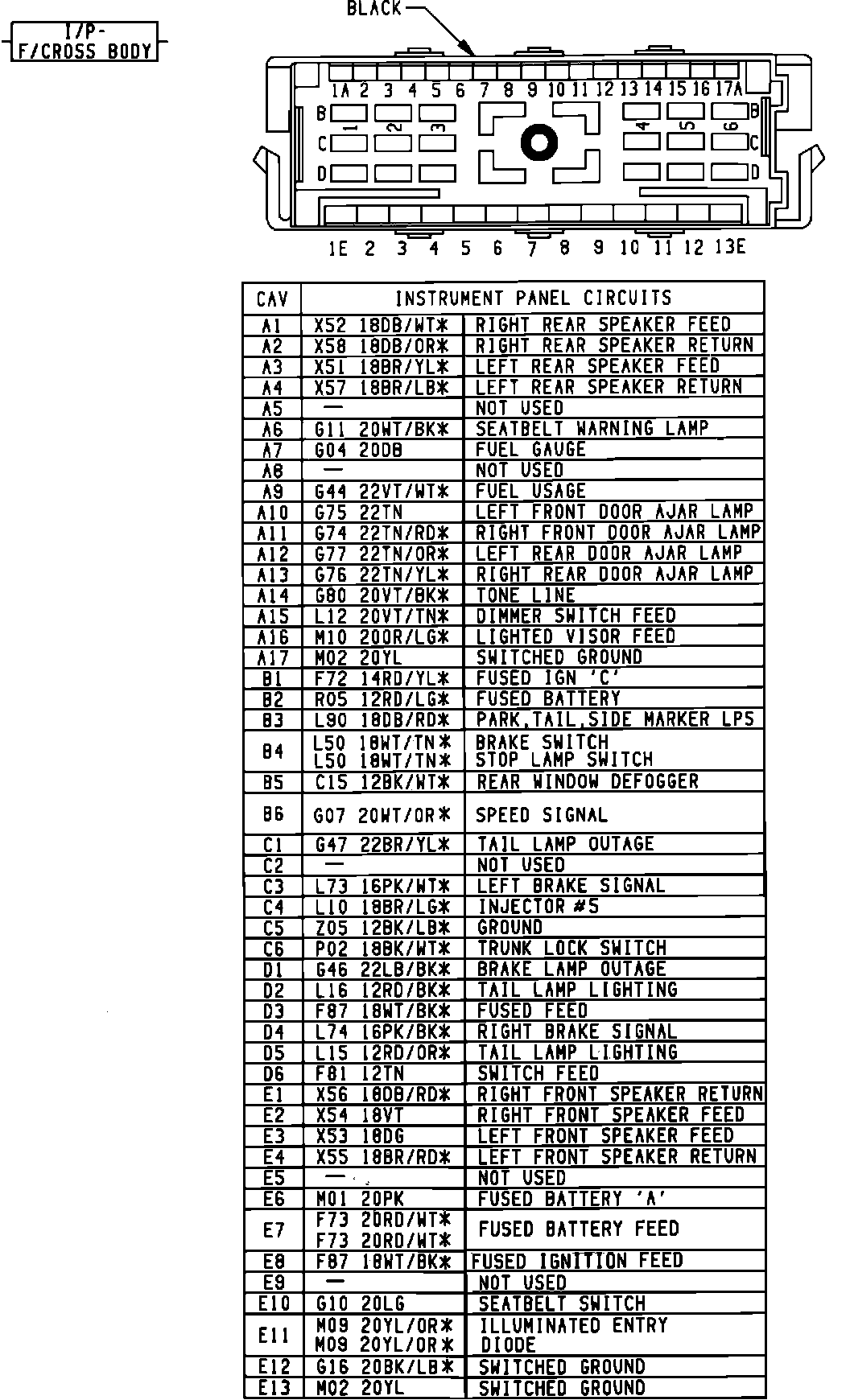

Instrument Panel To Front Crossbody Connectors:
Instrument Panel To Front Crossbody Connectors:
