Front Brakes - Service Manual Revision
90chrysler14 Models1988-1990 BB Body
Subject
Service Manual Revision - Front Brakes
Index
BRAKES
Date
July 2, 1990
No.
05-05-90
(C05-08-0)
P-1873
BODY CODE LEGEND
BB - MONACO
SERVICE MANUALL REVISION

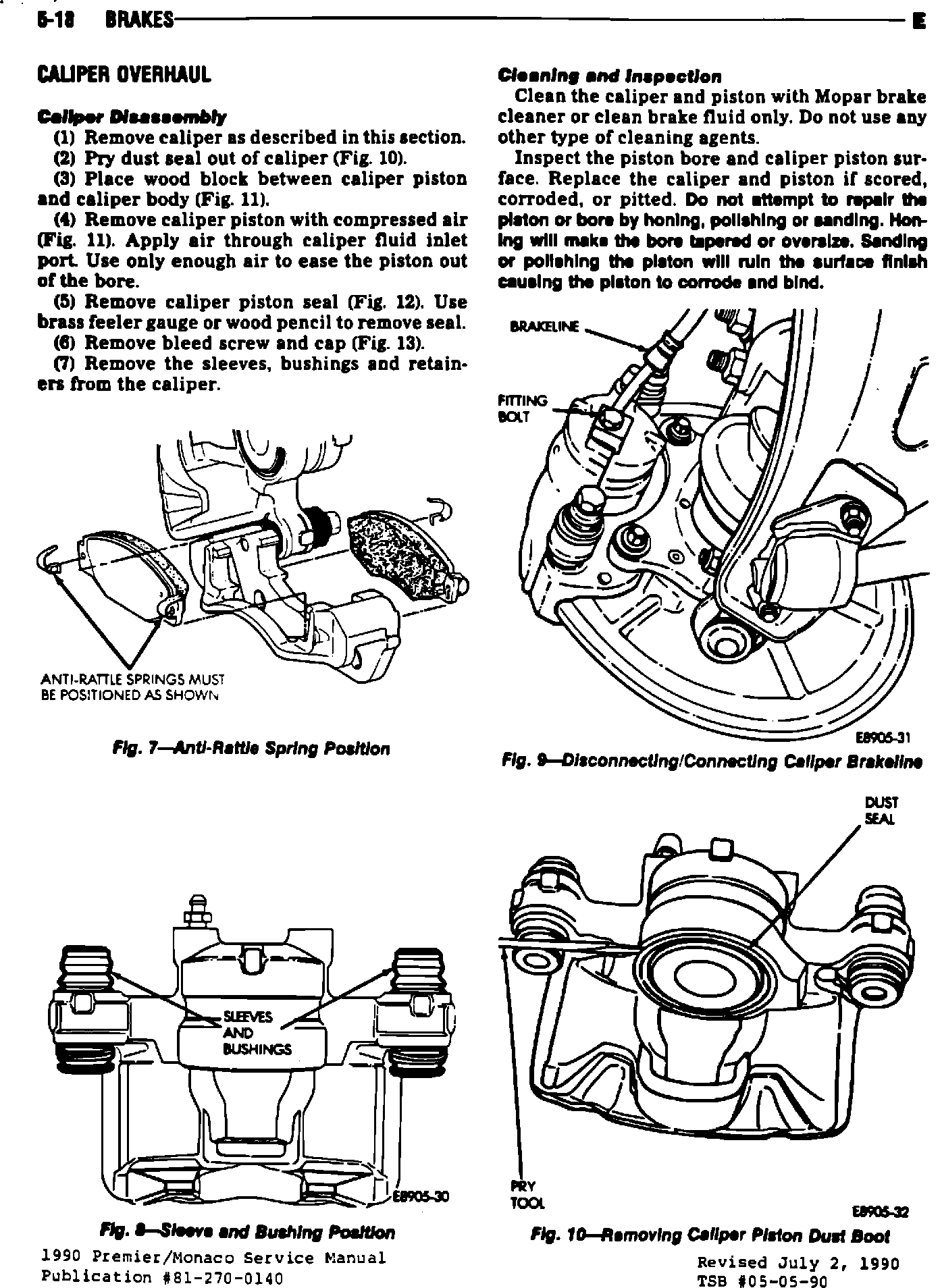

Page 5-18, Figure 7, of the 1990 Premier/Monaco Service Manual, Publication # 81-270-0140, has been revised to include a new illustration for front brake shoe anti-rattle sprin position.
Please substitute the attached page for page 5-18 in your service manual.
