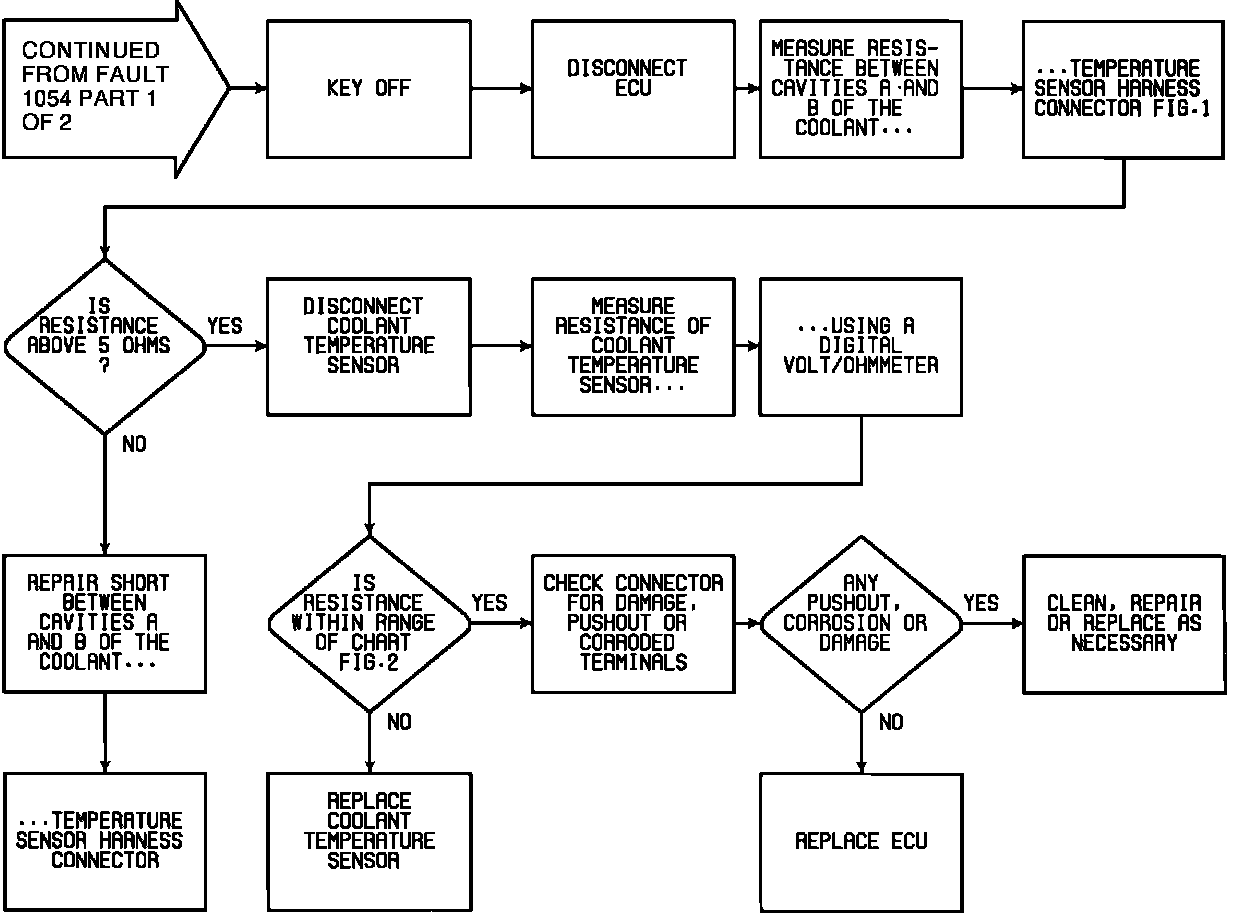

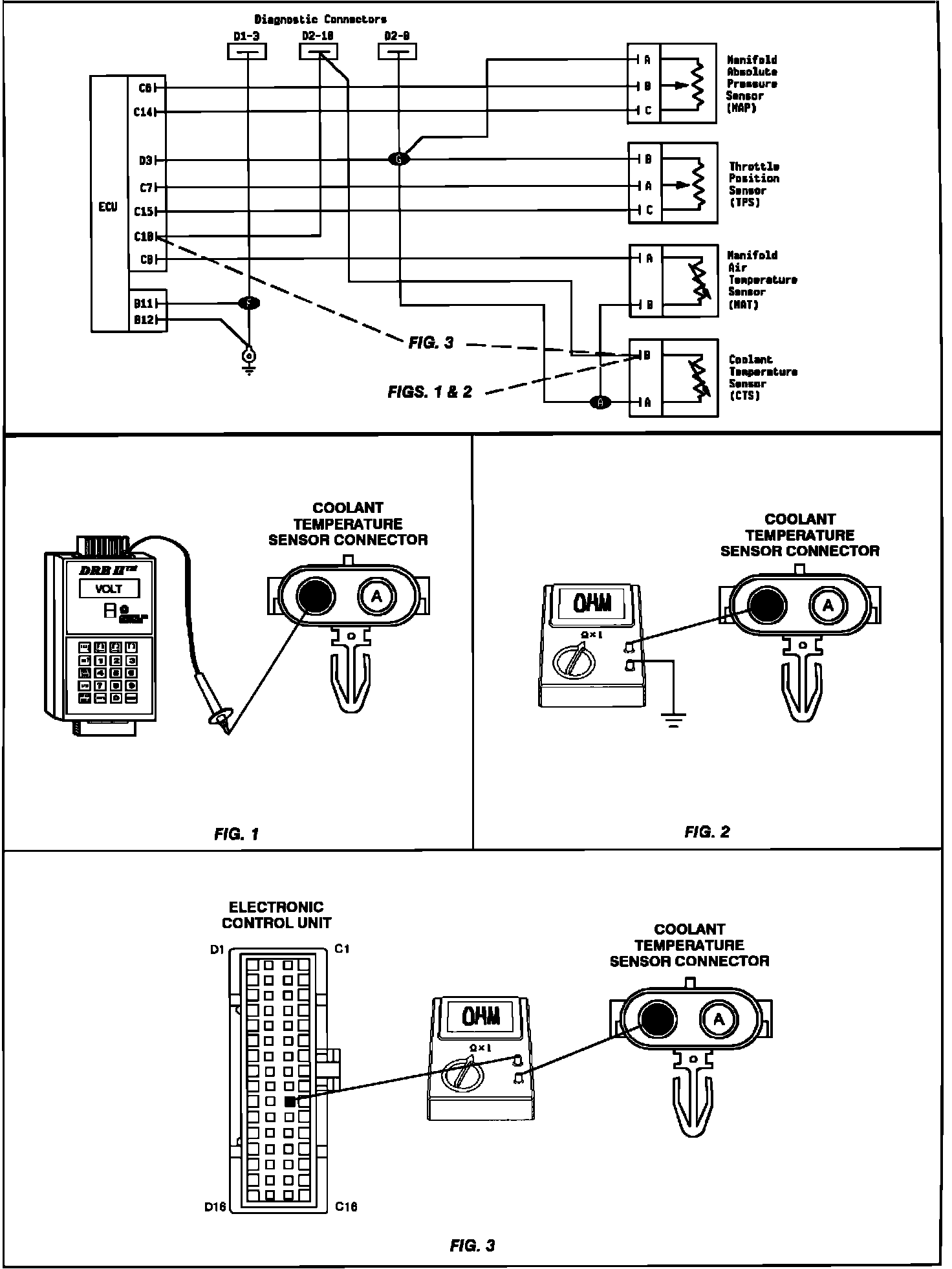

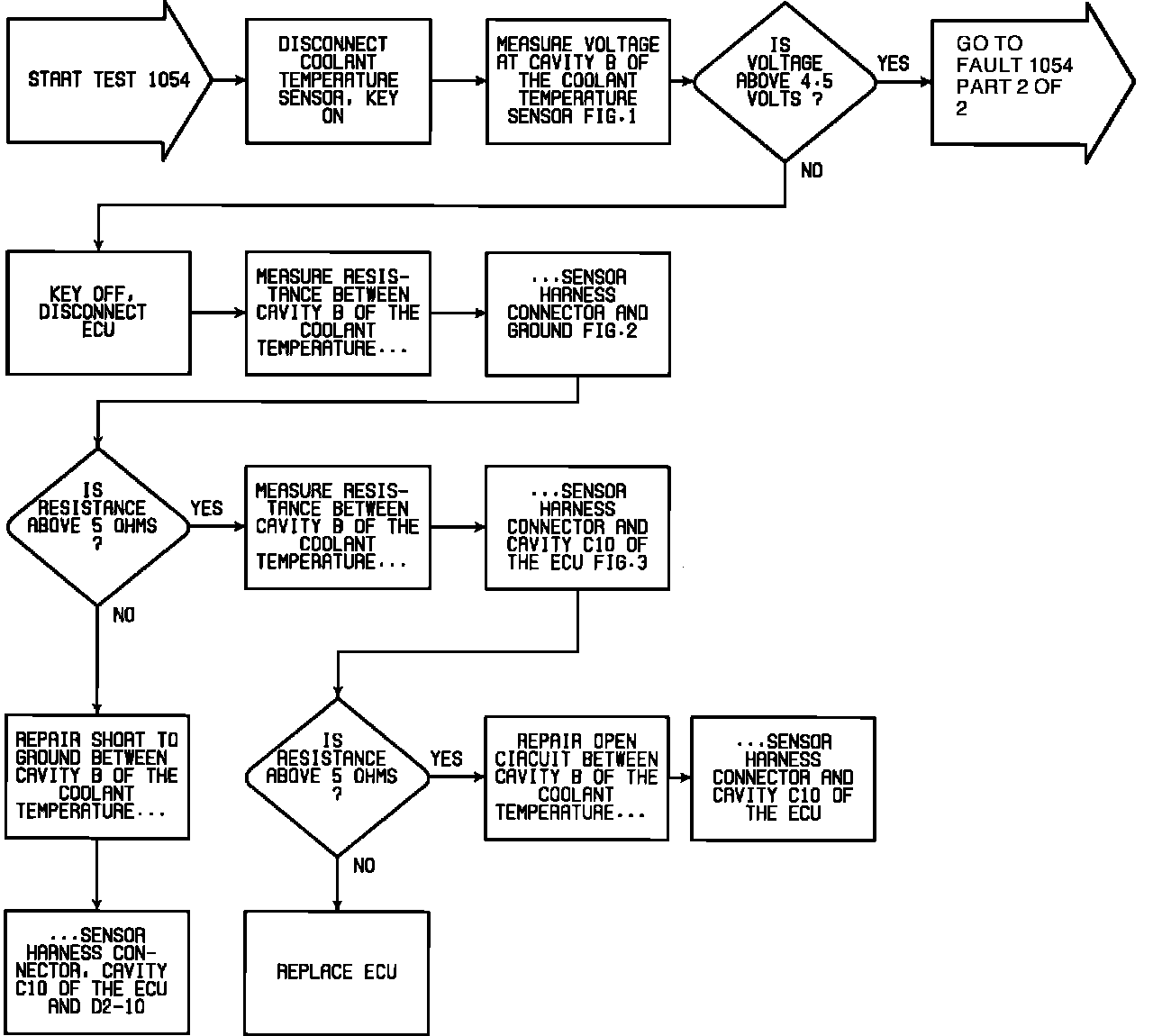

1054 Coolant Temperature Sensor Line Low

Fault 1054 - Coolant Temperature Sensor Line Low:



Fault 1054 - Coolant Temperature Sensor Line Low:



Fault 1054 - Coolant Temperature Sensor Line Low:



Fault 1054 - Coolant Temperature Sensor Line Low:
