1053 Change In MAP Sensor Reading Out of Limits

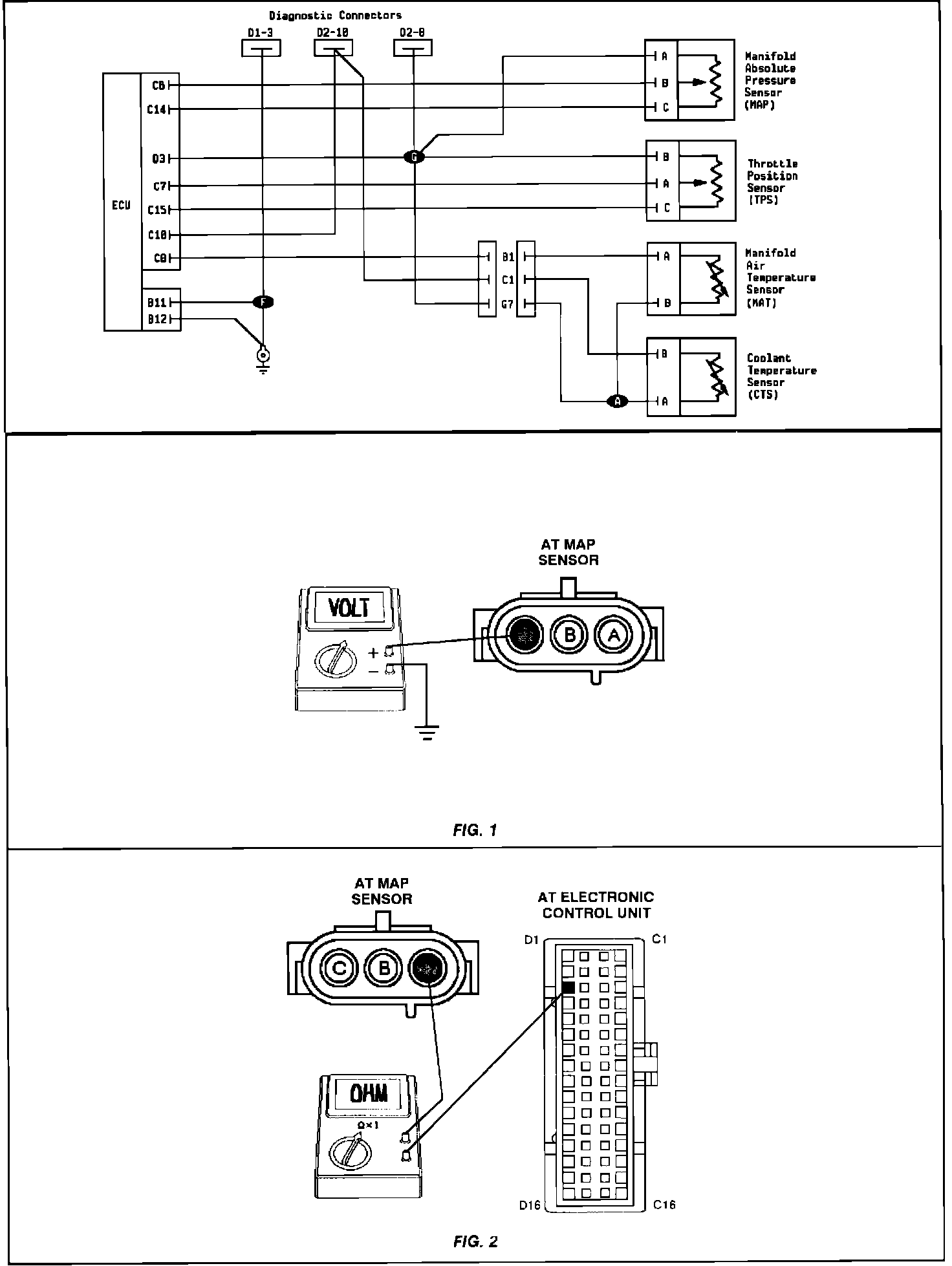

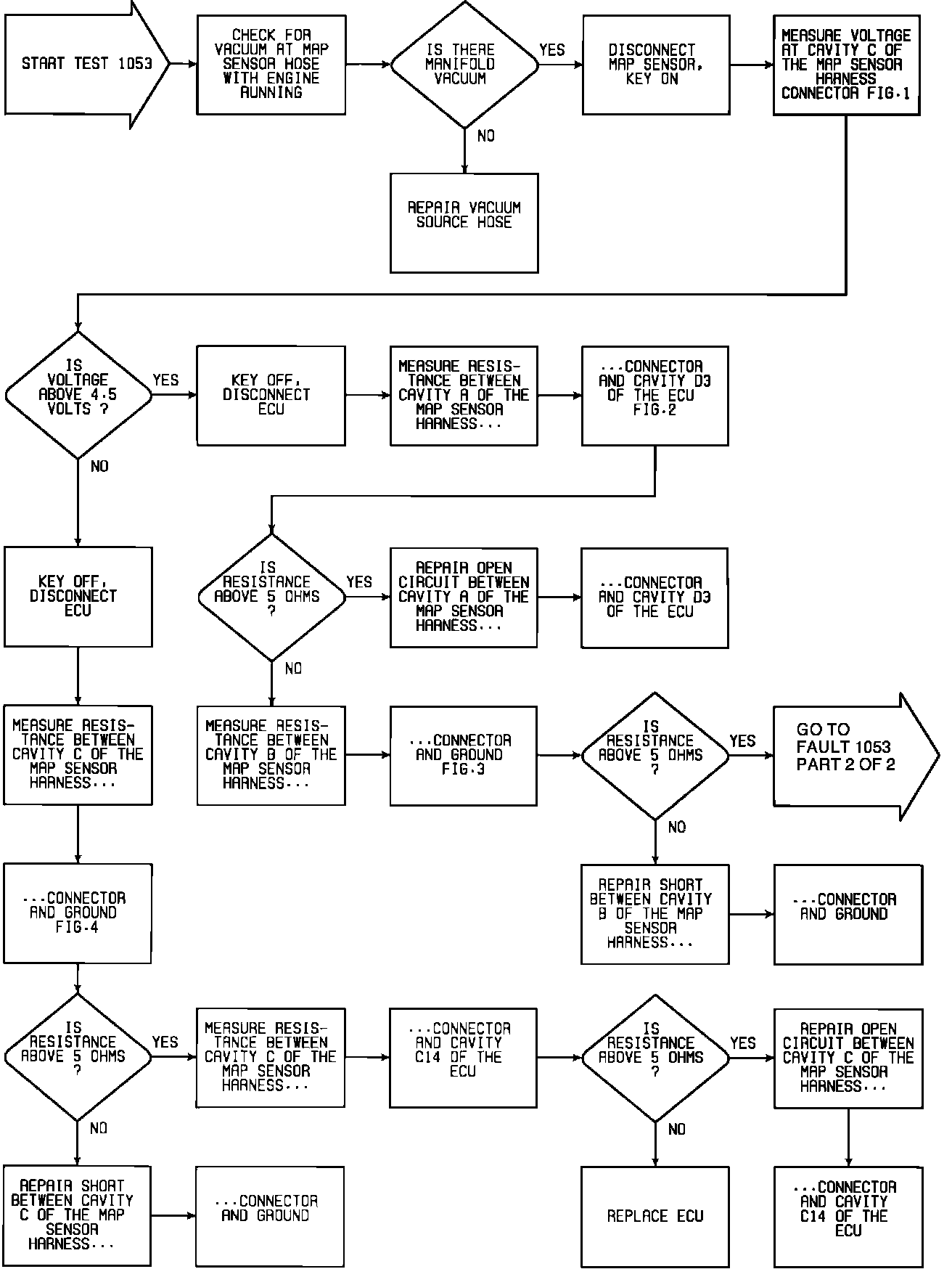

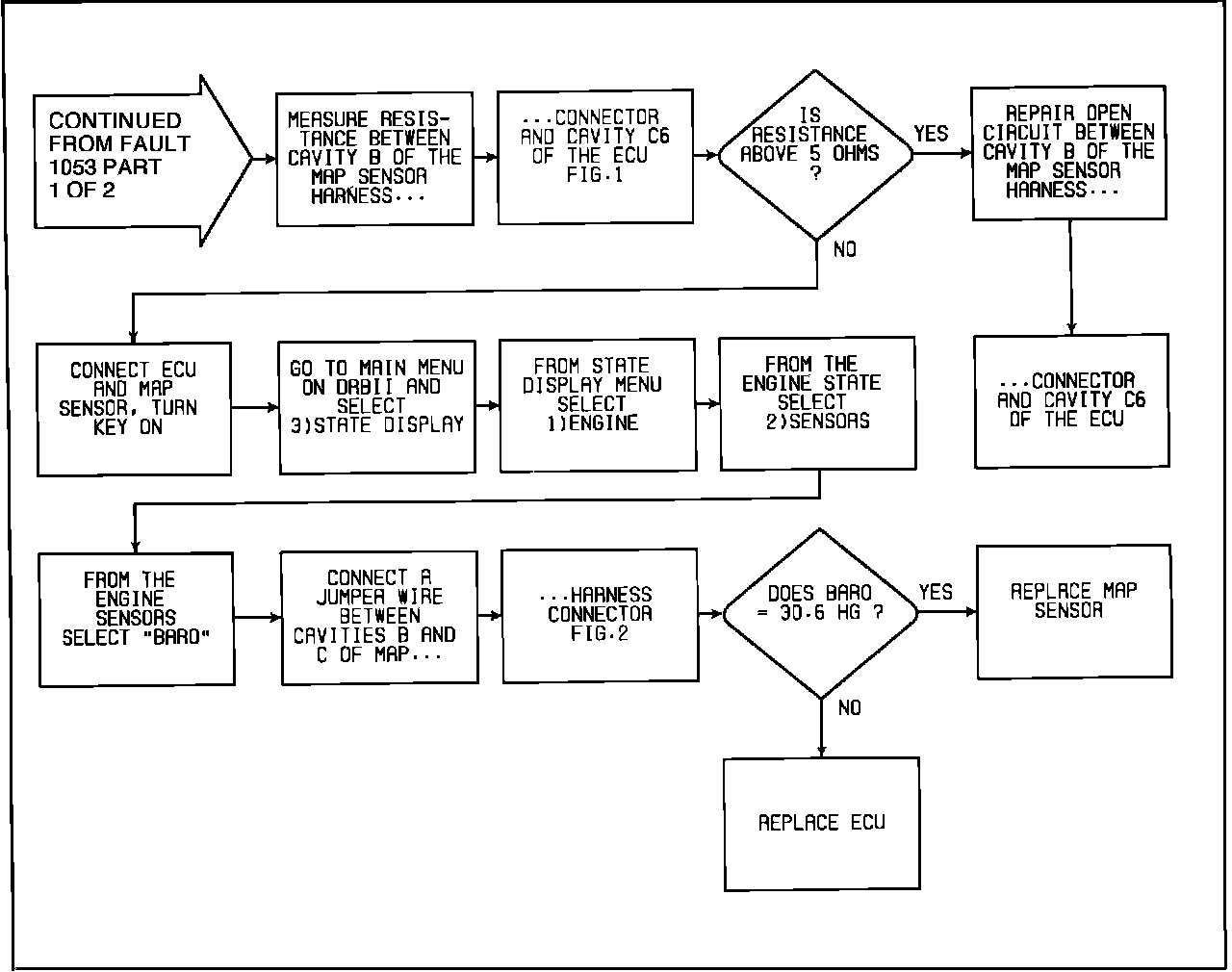

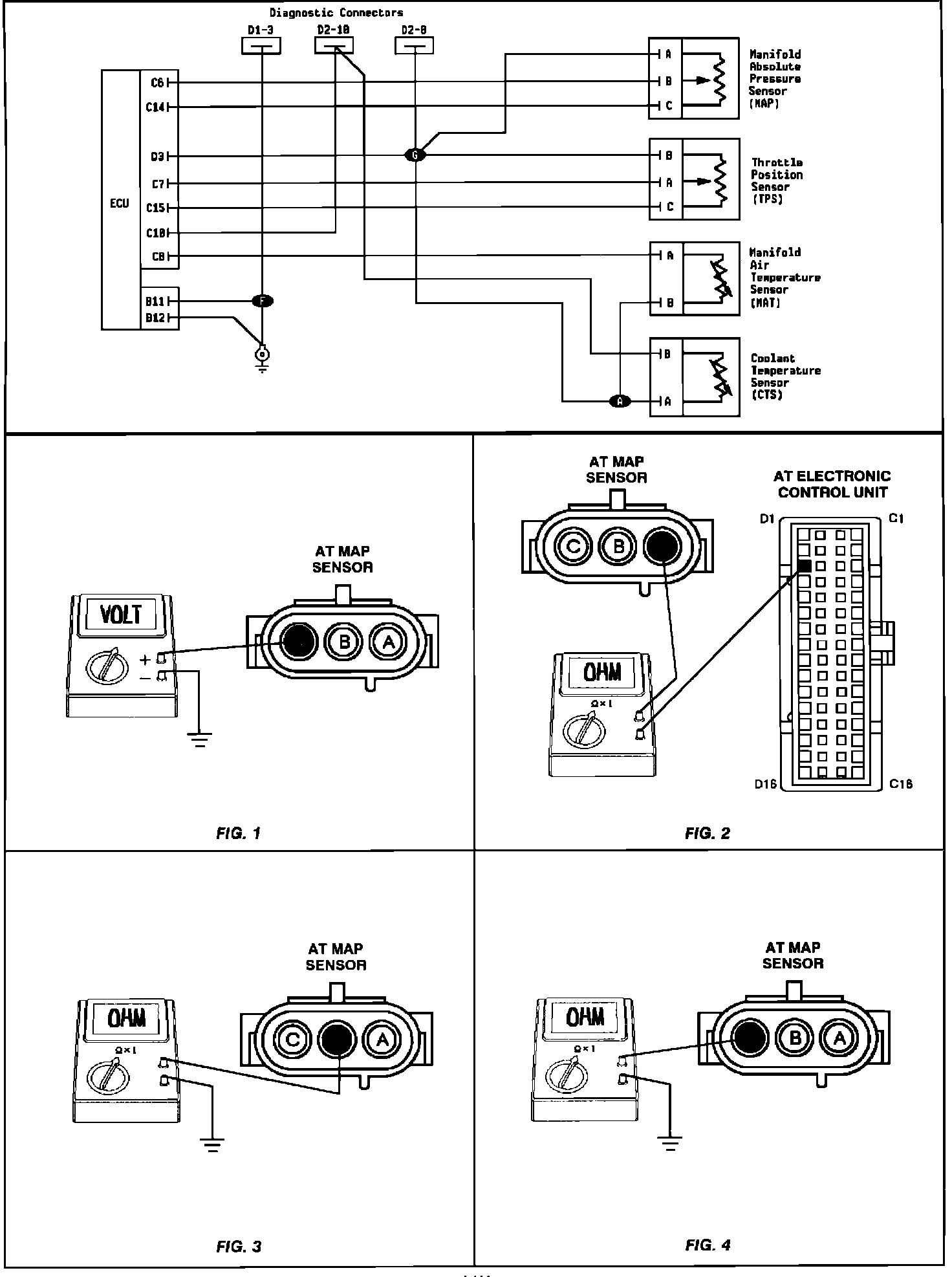

Fault 1053 - Change In MAP Reading Out Of Limits:



Fault 1053 - Change In MAP Reading Out Of Limits:



Fault 1053 - Change In MAP Reading Out Of Limits:



Fault 1053 - Change In MAP Reading Out Of Limits:
