Home >> Dodge >> 1990 >> Monaco V6-182 3.0L SOHC >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> 4 Digit Codes >> 1017 Charge Air Temperature Sensor Line Low

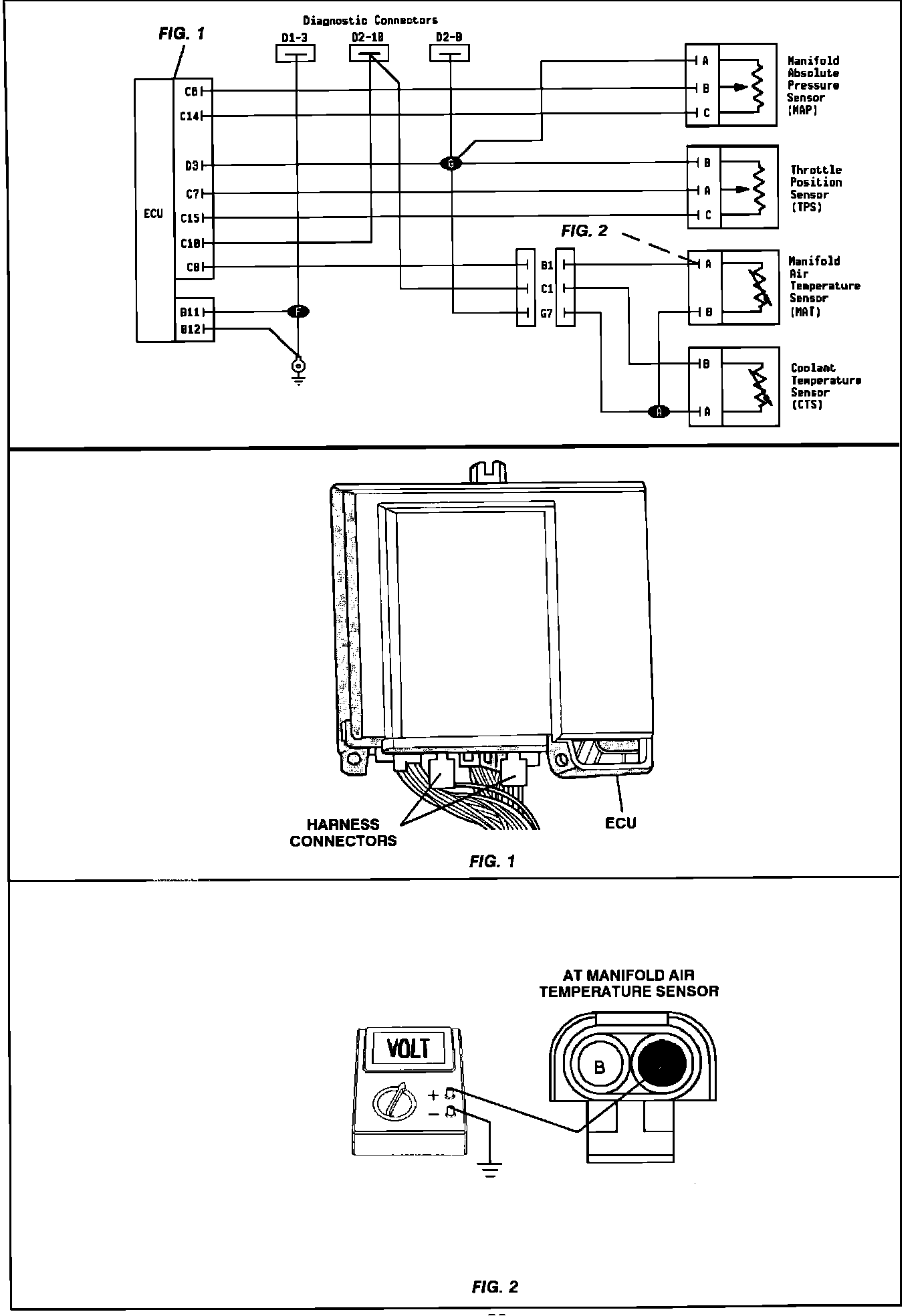

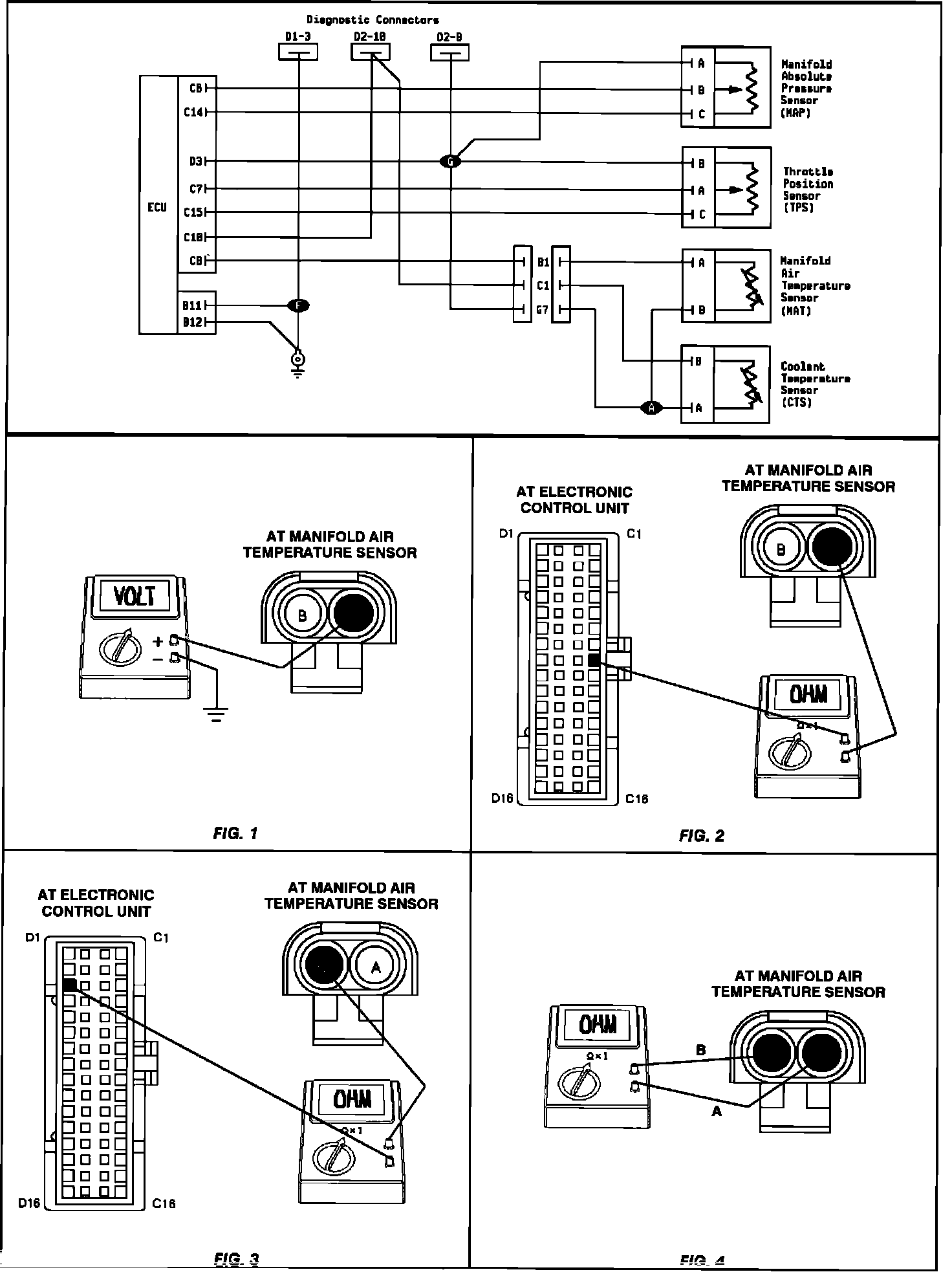

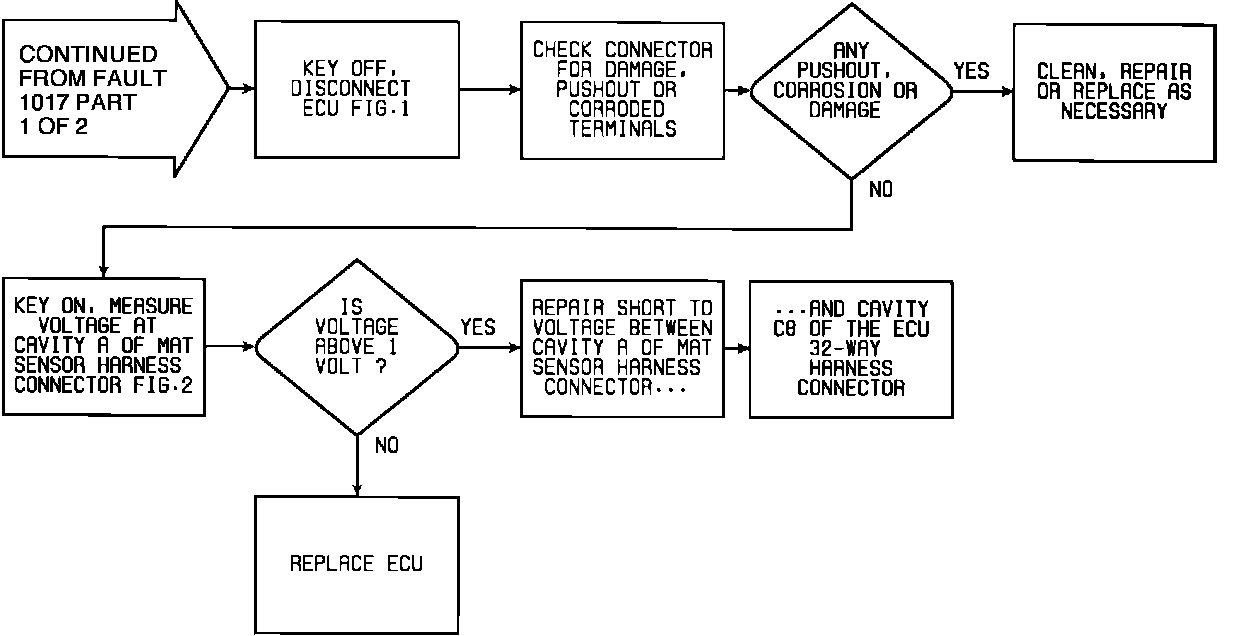

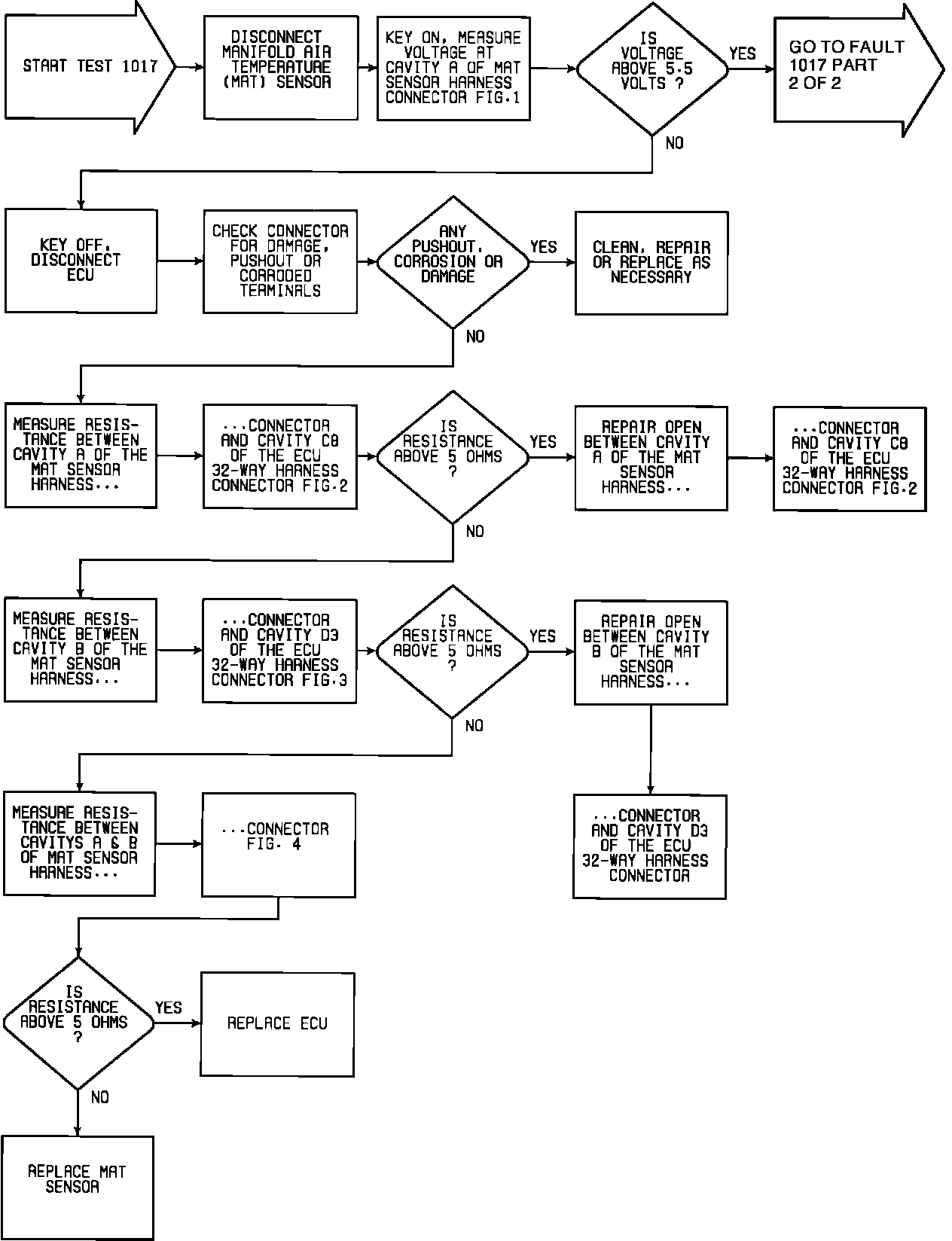

1017 Charge Air Temperature Sensor Line Low

Fault 1017 - Charge Air Temperature Sensor Line High:



Fault 1017 - Charge Air Temperature Sensor Line High:



Fault 1017 - Charge Air Temperature Sensor Line High:



Fault 1017 - Charge Air Temperature Sensor Line High:
