Motor & Track Assembly Replacement

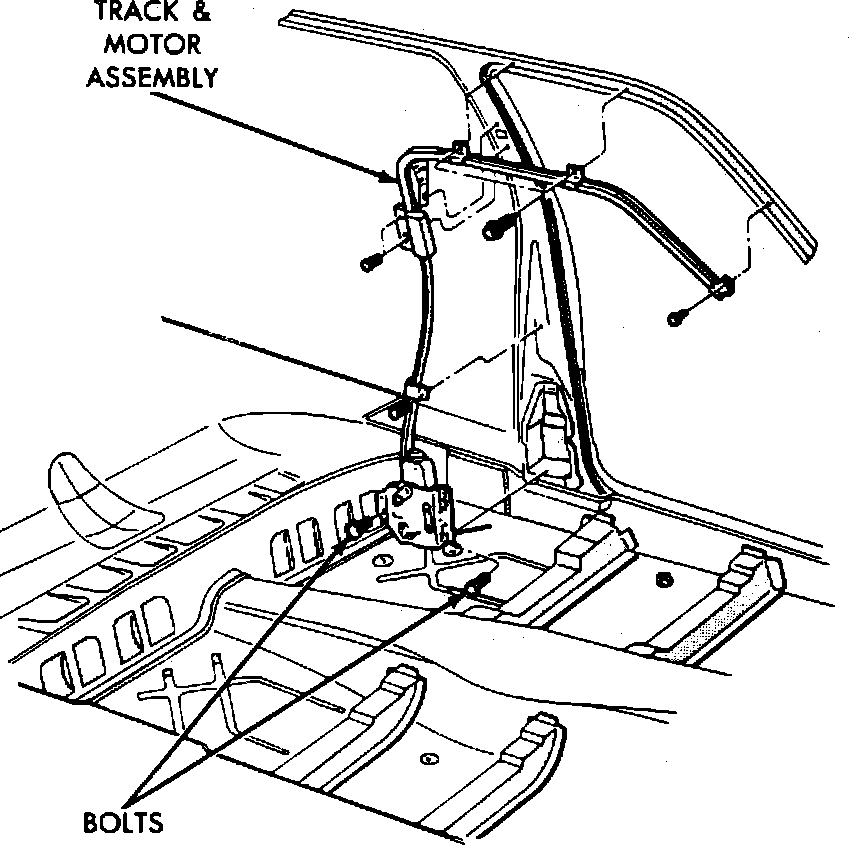

Fig. 154 Track And Motor Assembly:

1. Remove front door garnish molding, then B-pillar trim.
2. Remove lower door opening trim, then move trim back to gain access to motor mounting bolts.
3. Disconnect electrical connector at motor.
4. Remove track and motor assembly.
5. Reverse procedure to install. Torque, motor mounting bolts to 3.7 lb-ft, lock box mounting bolt to 24 lb-ft and track mounting bolts to 1 lb-ft.
