Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Dodge
>>
1990
>>
Monaco L4-153 2.5L SOHC
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>

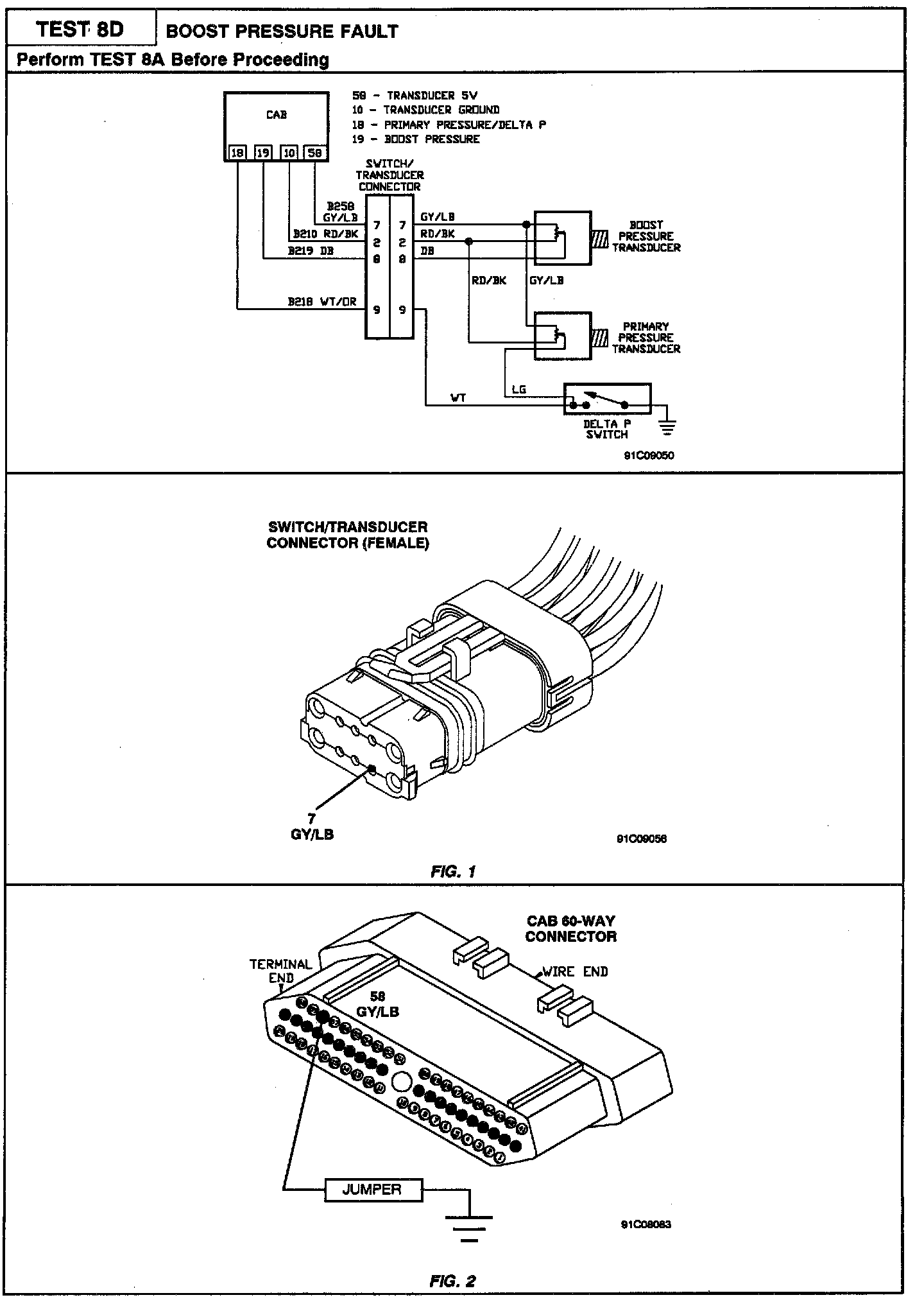

Test 8 - Boost Pressure Fault
>>
Test 8D
Test 8D

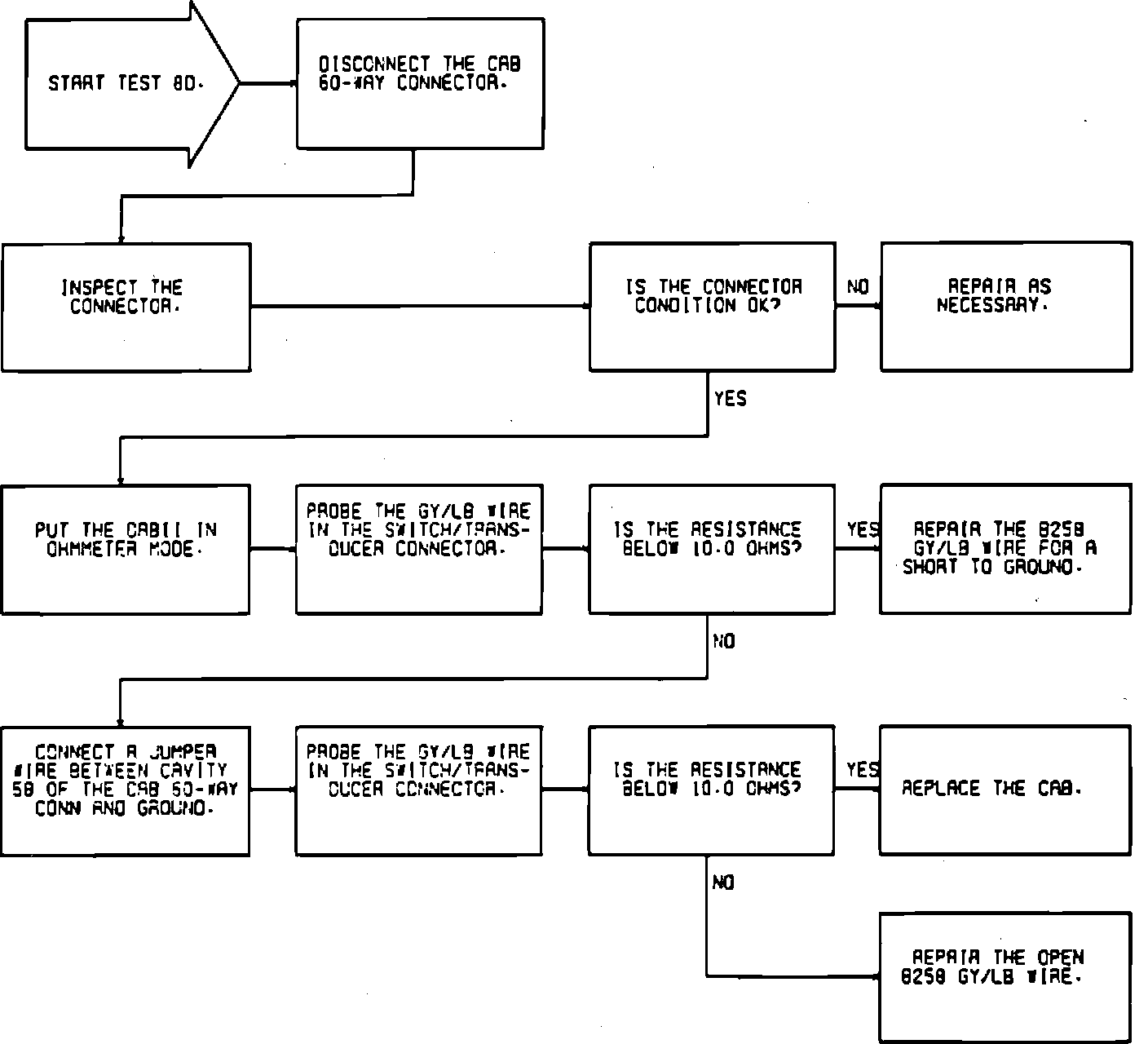

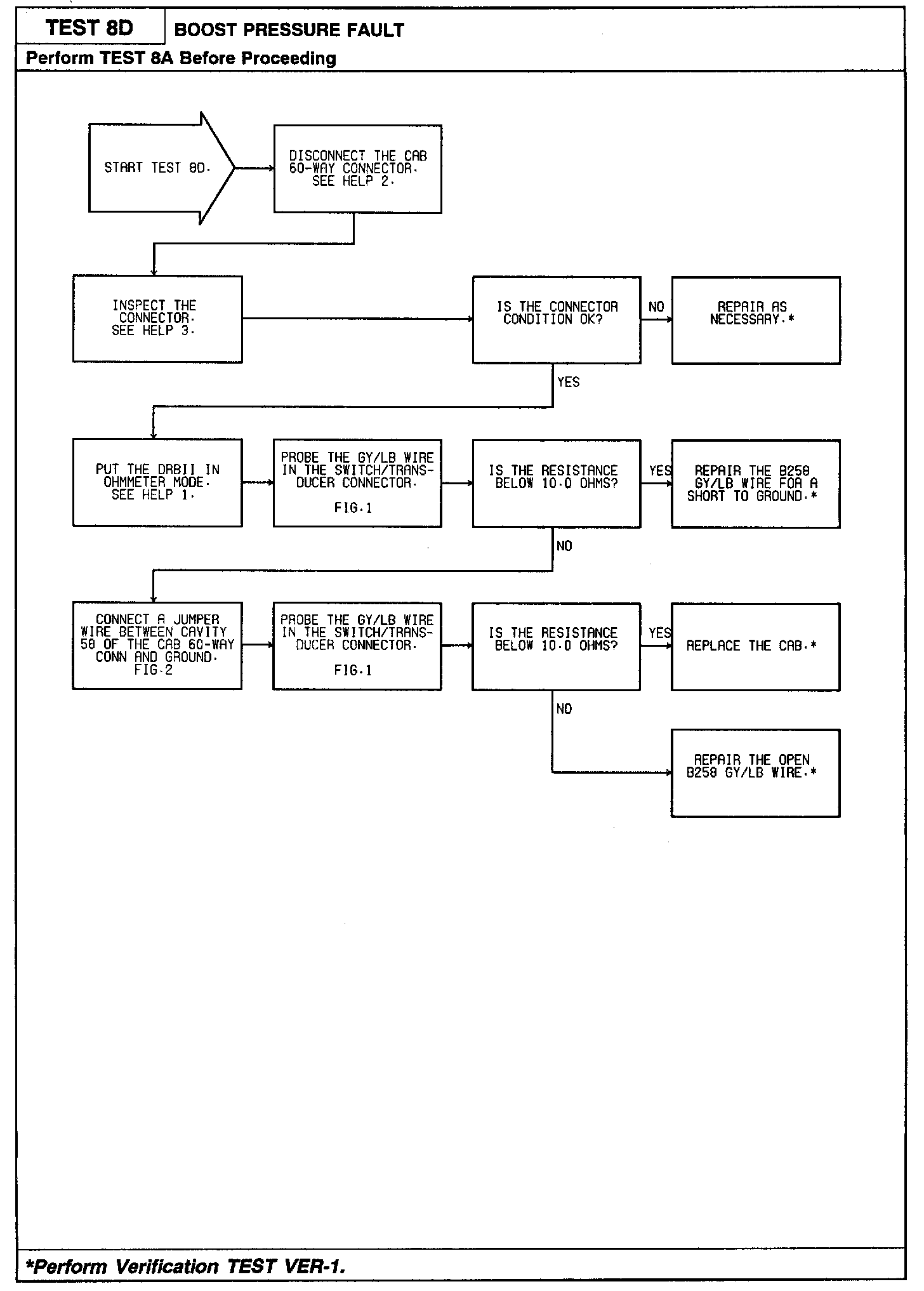

Fig. 60 Test 8D--Boost Pressure Fault:
