A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Test 8 - Boost Pressure Fault
>>
Test 8C
Test 8C

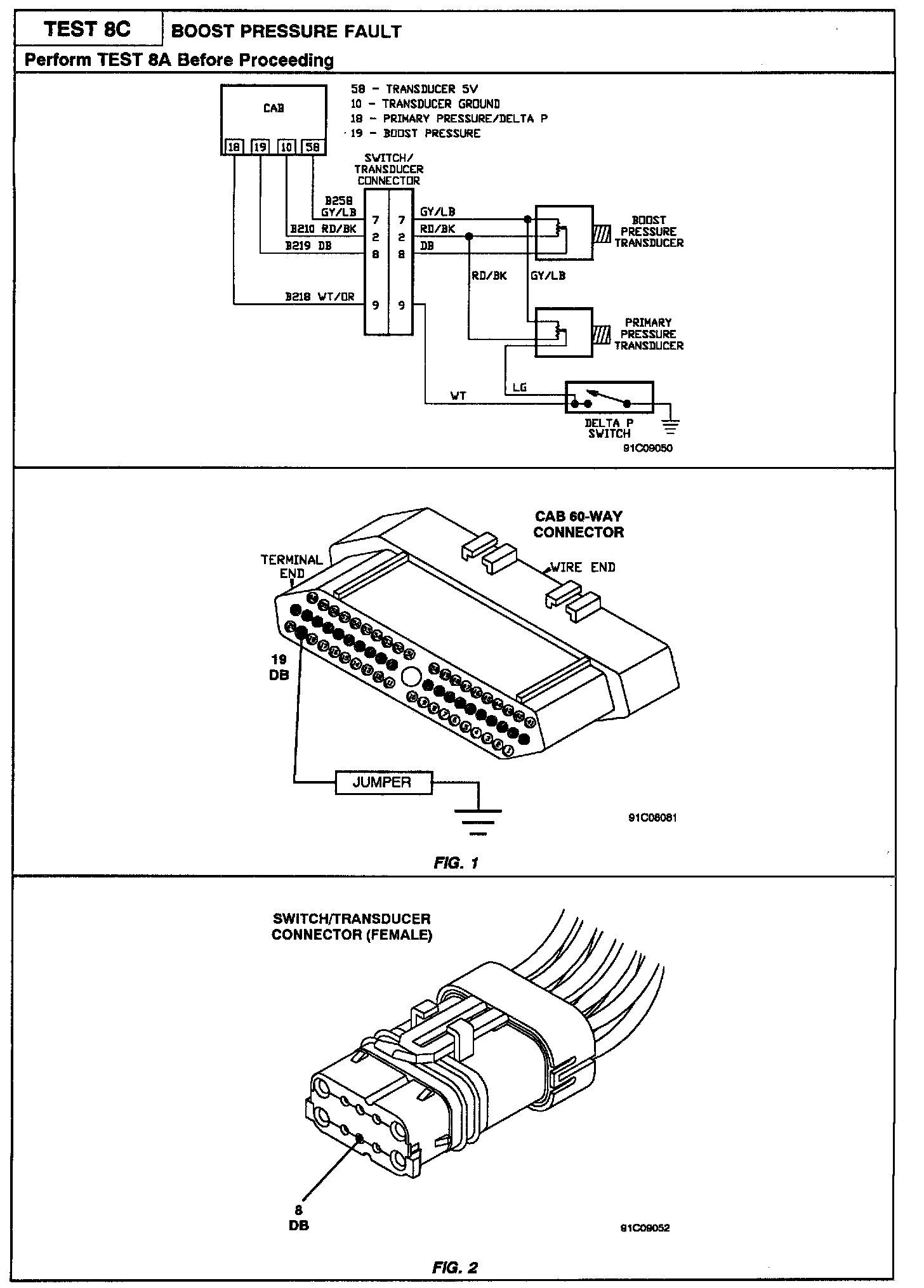

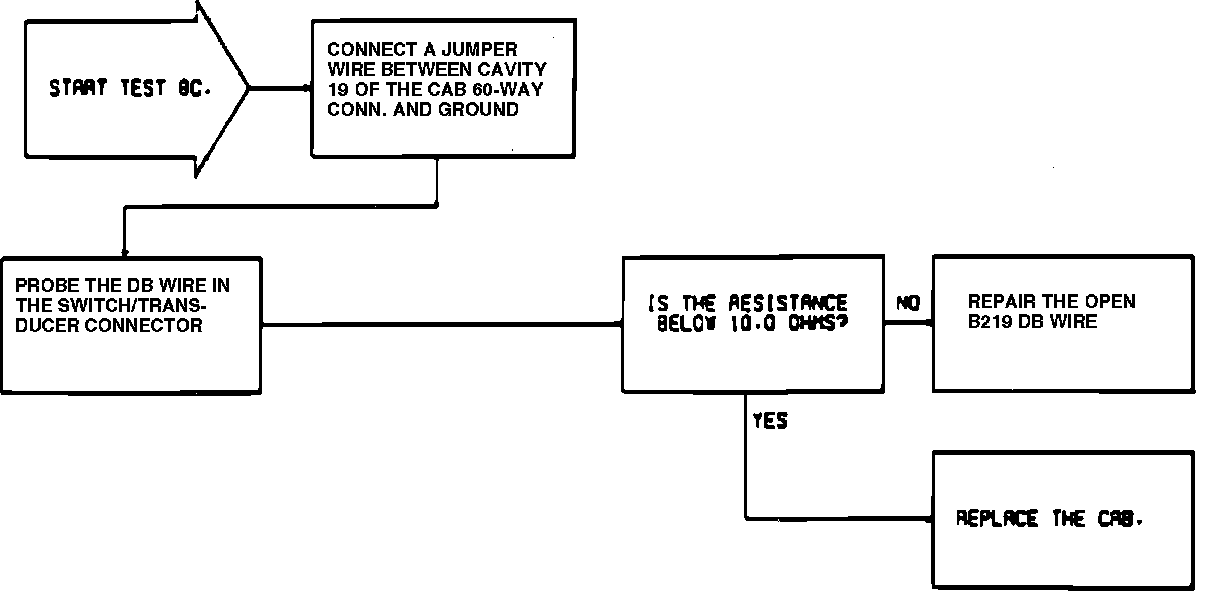

Fig. 58 Test 8C--Boost Pressure Fault:
