Home >> Dodge >> 1990 >> Monaco L4-153 2.5L SOHC >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Test 3 - Modulator Fault >> Test 3G

Test 3G

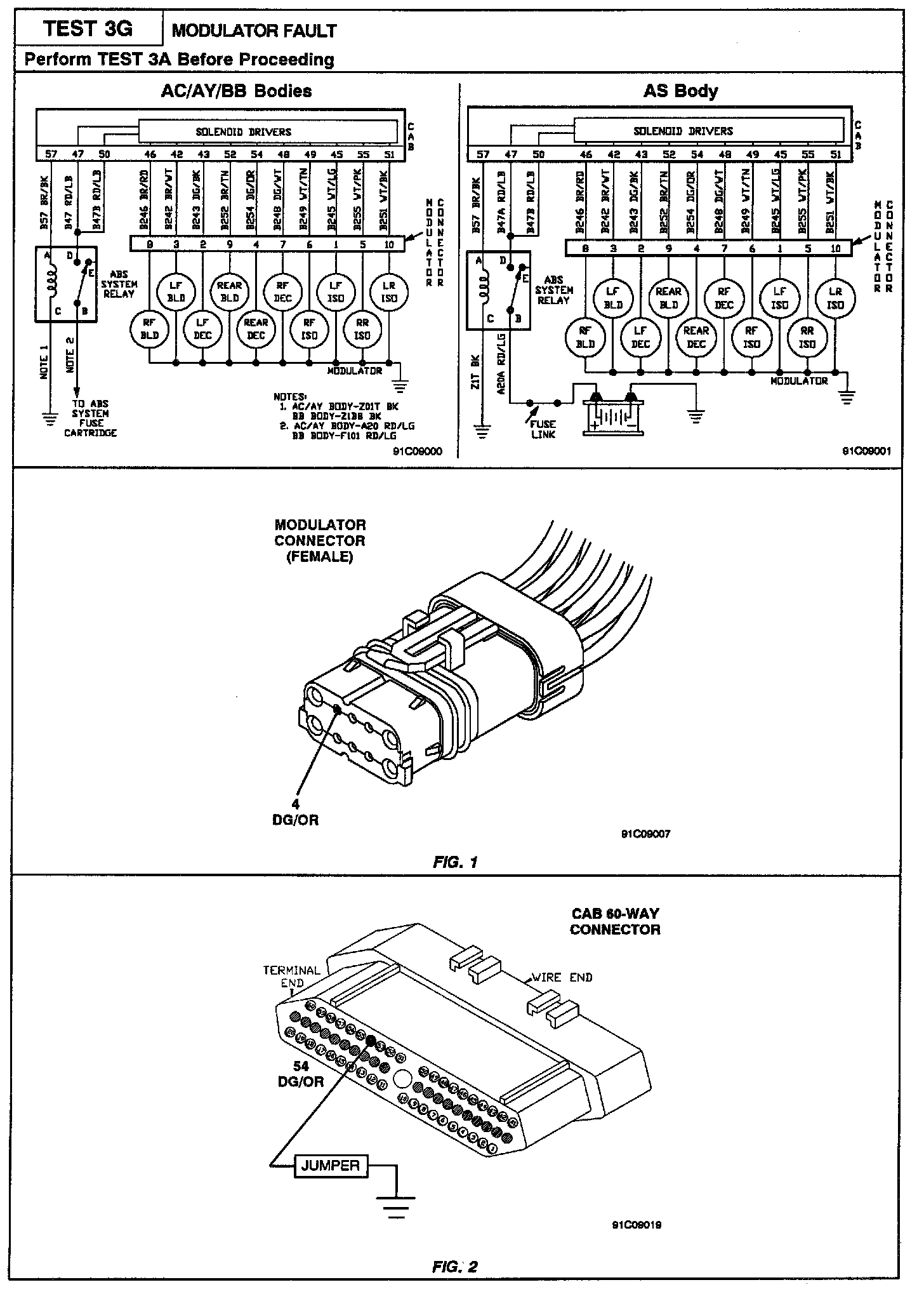

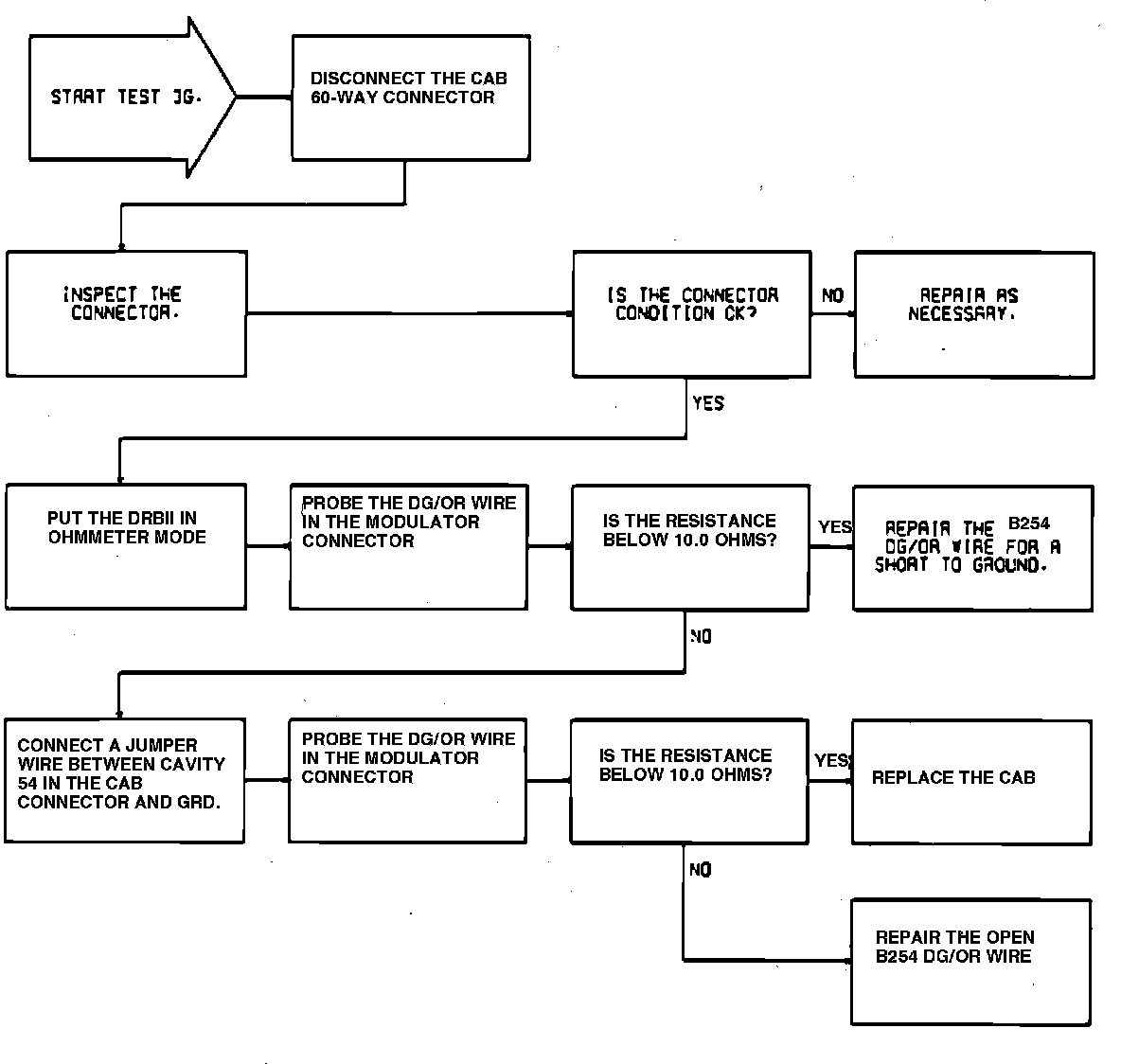

Fig. 25 Test 3G--Modulator Fault:
