Home >> Dodge >> 1990 >> Monaco L4-153 2.5L SOHC >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Test 3 - Modulator Fault >> Test 3F

Test 3F

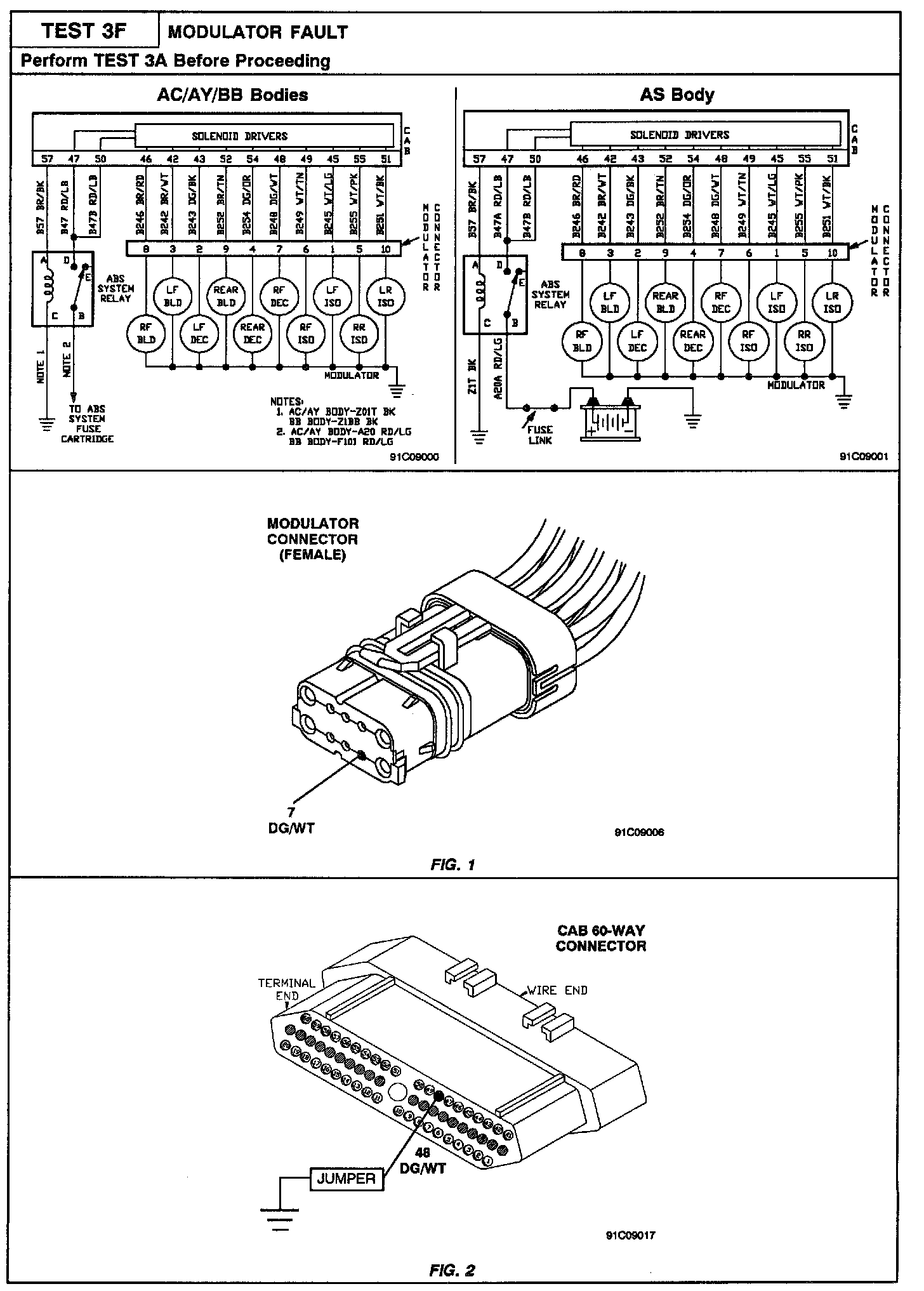

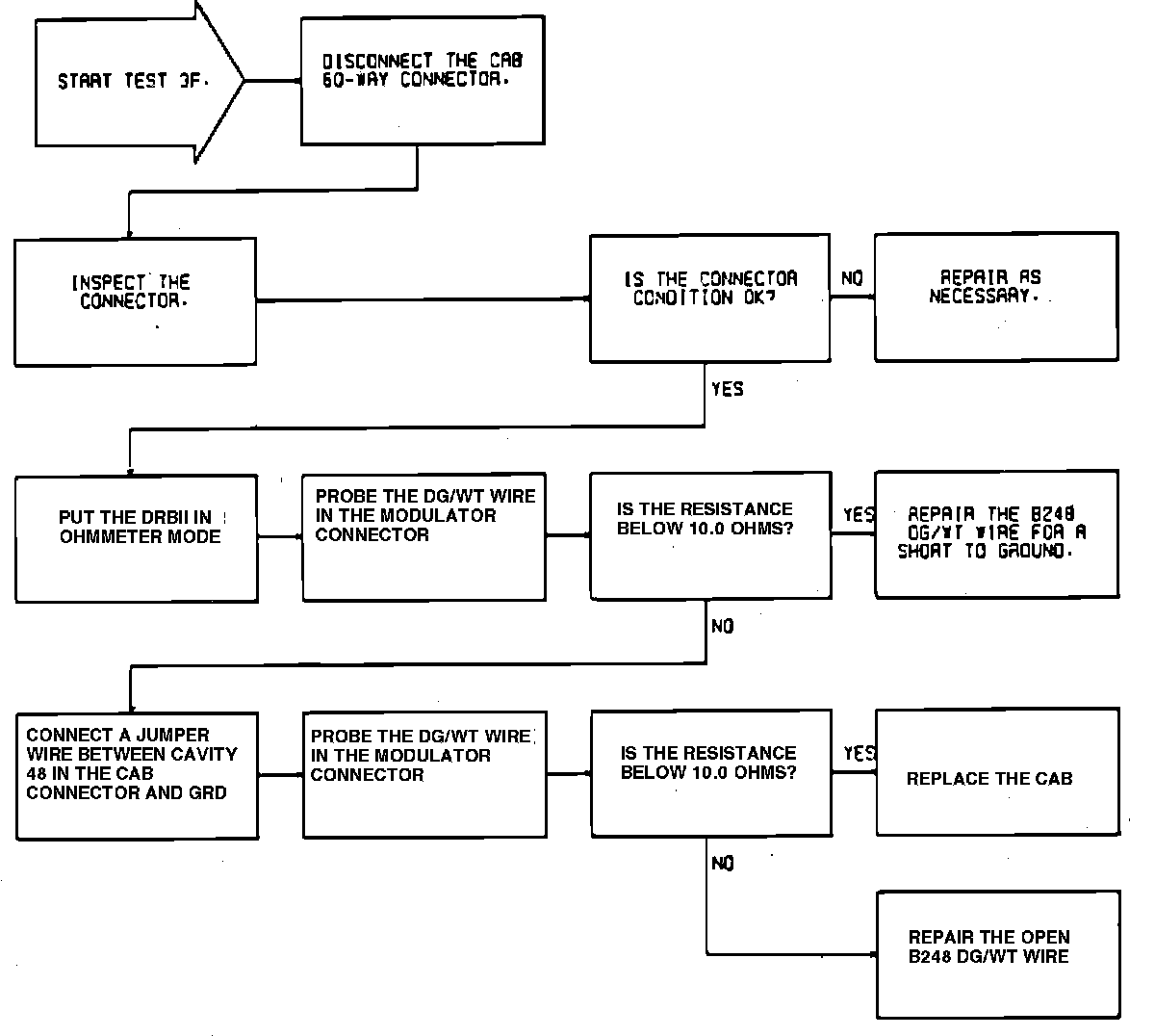

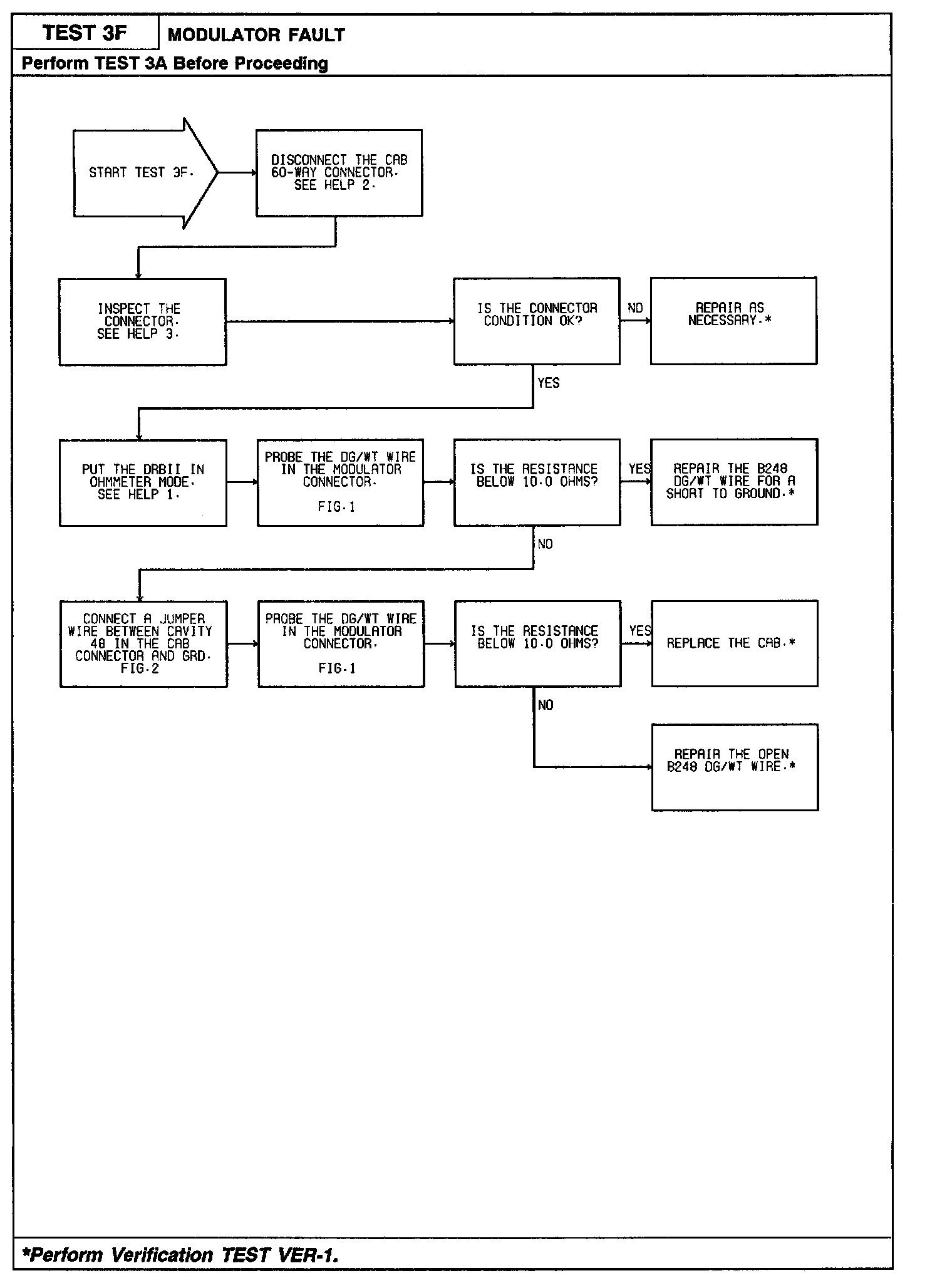

Fig. 23 Test 3F--Modulator Fault:
