Test 3A

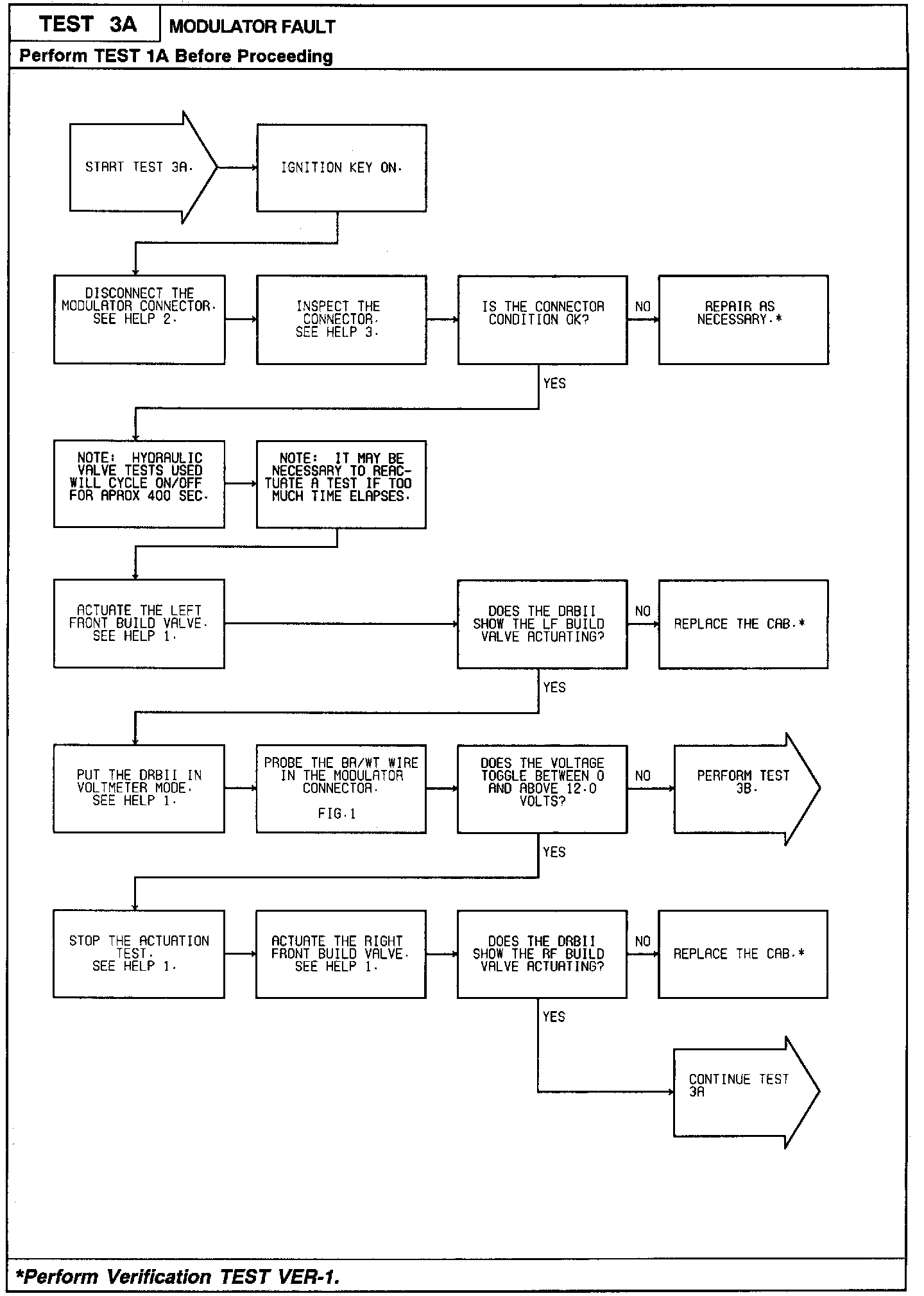

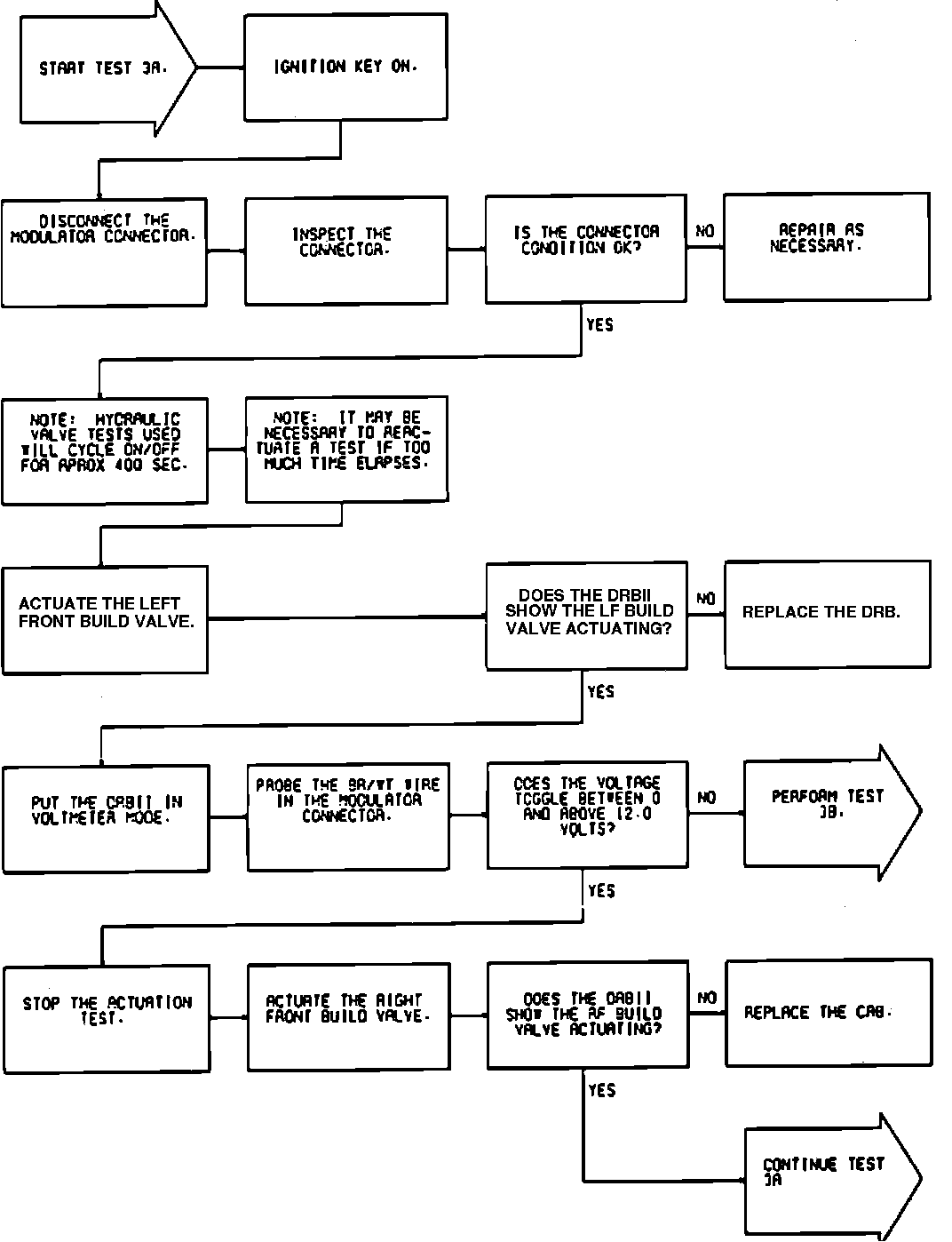

Fig. 13 Test 3A--Modulator Fault (Part 1 Of 5):

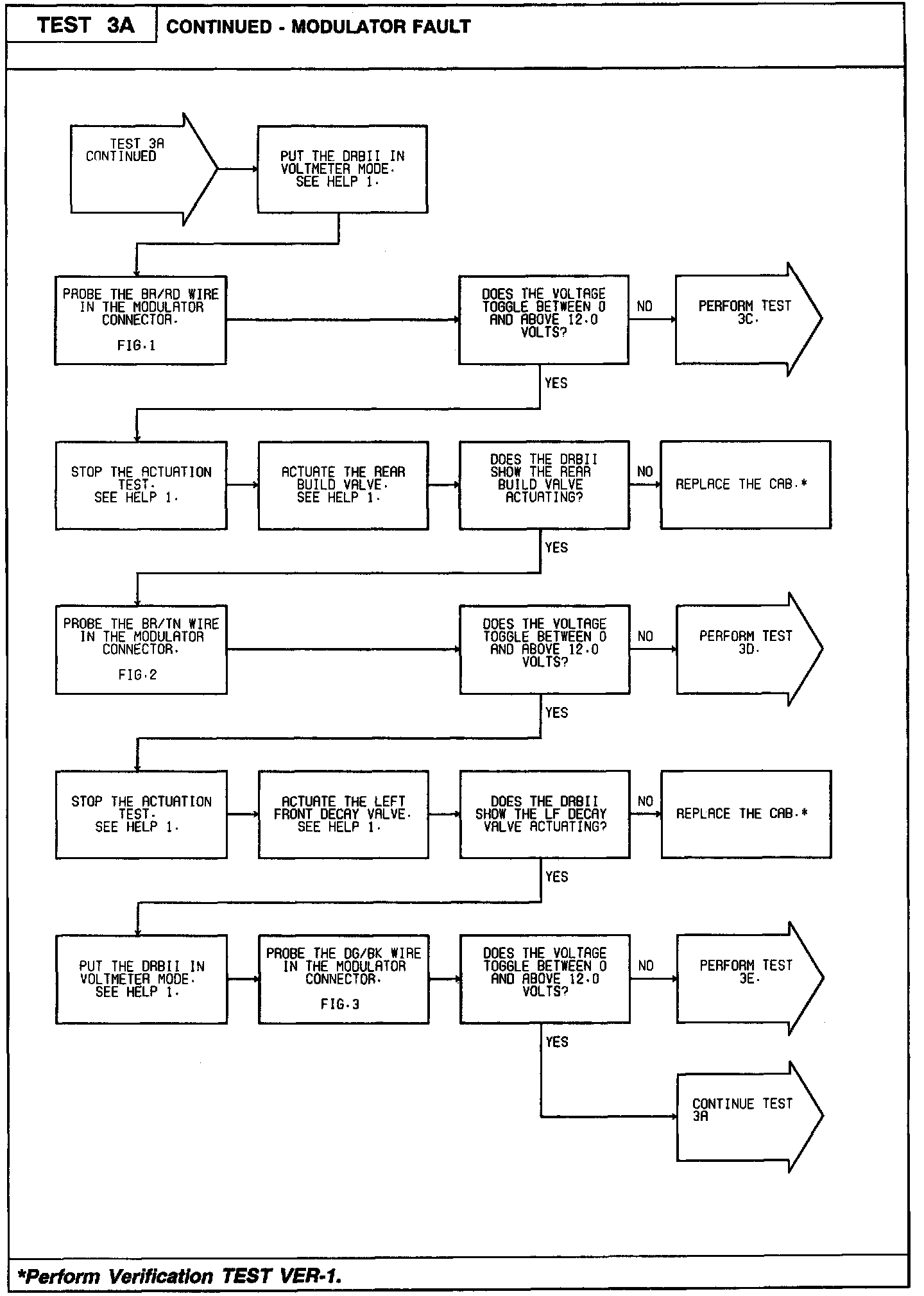

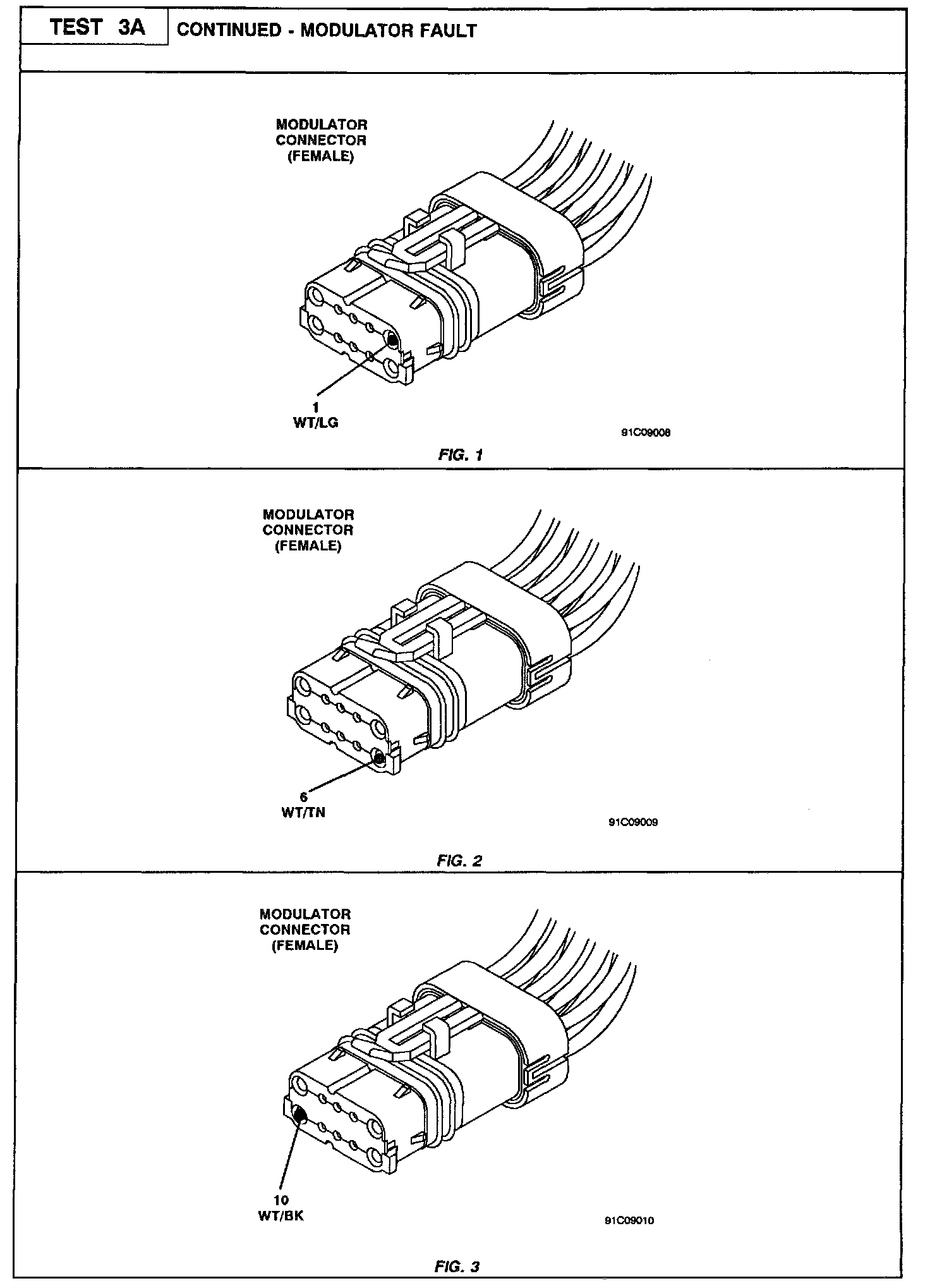

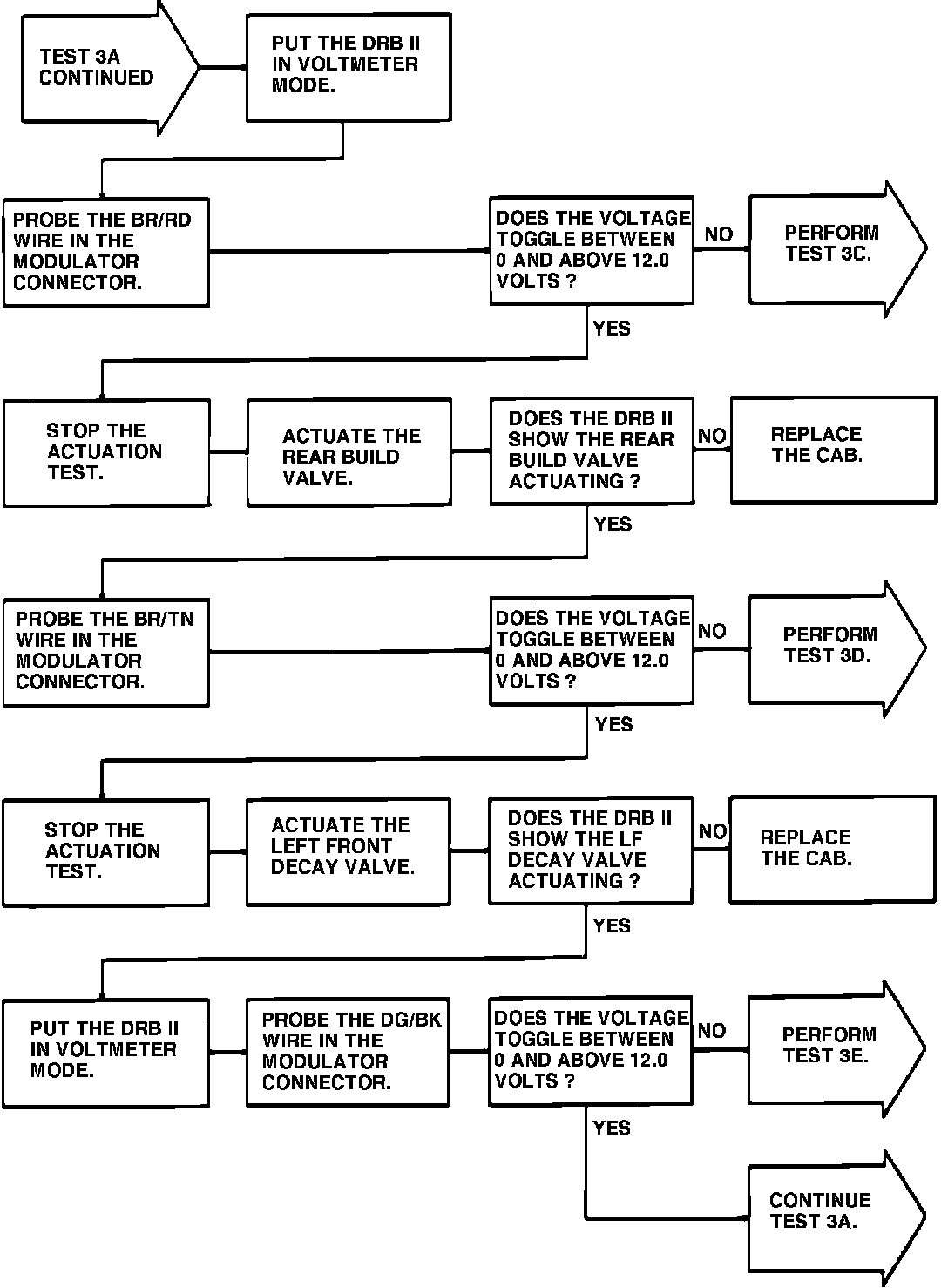

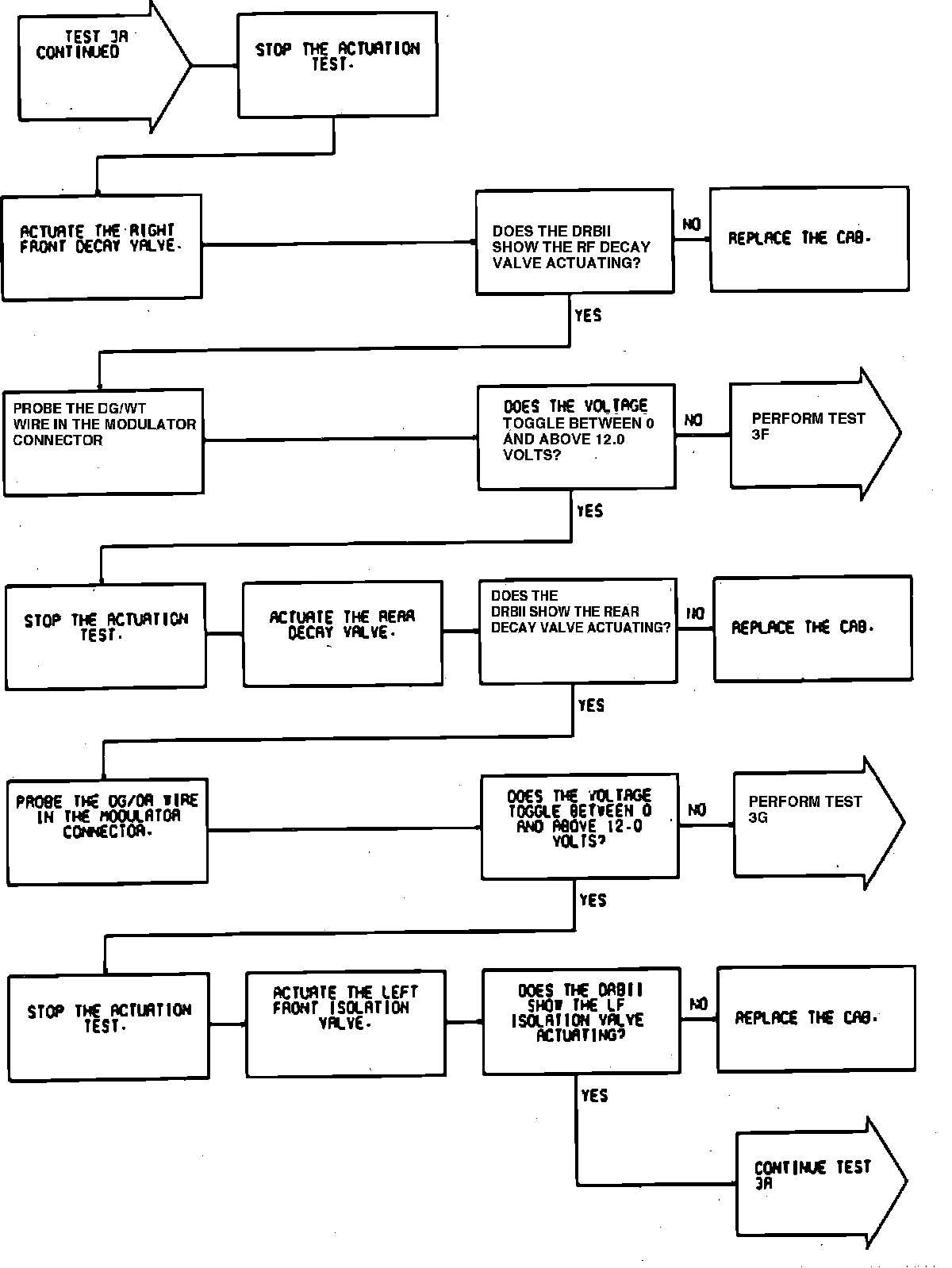

Fig. 13 Test 3A--Modulator Fault (Part 2 Of 5):

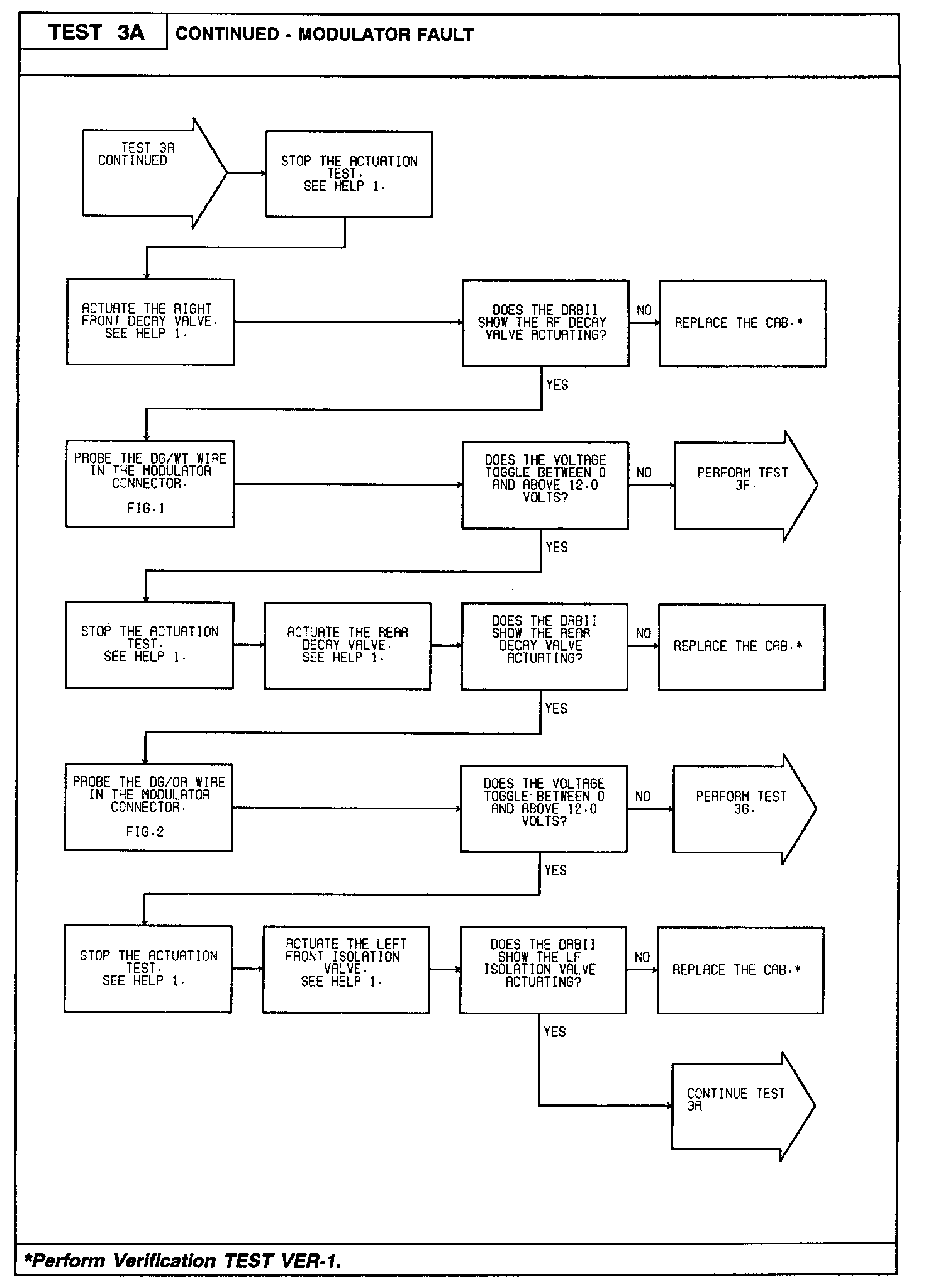

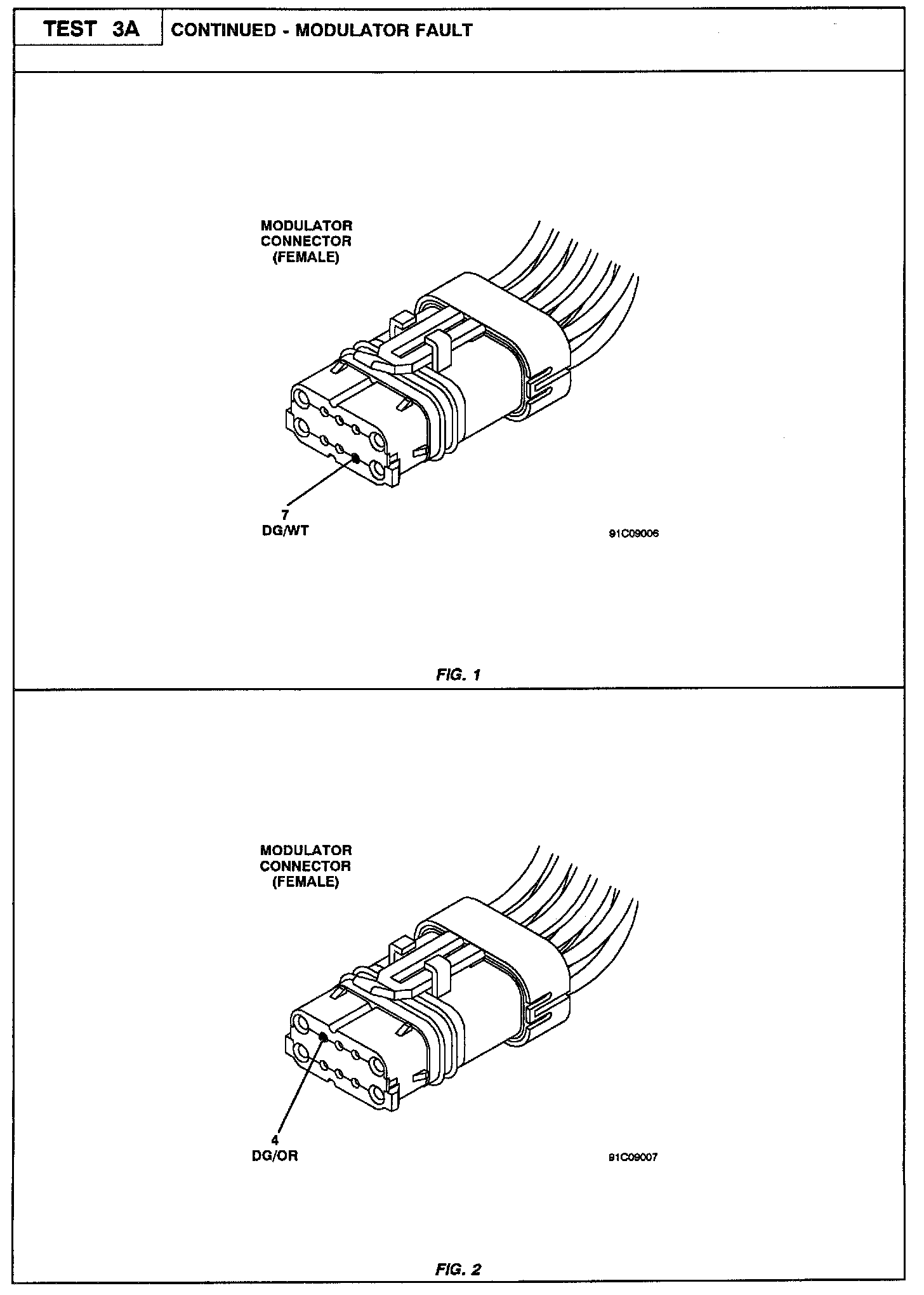

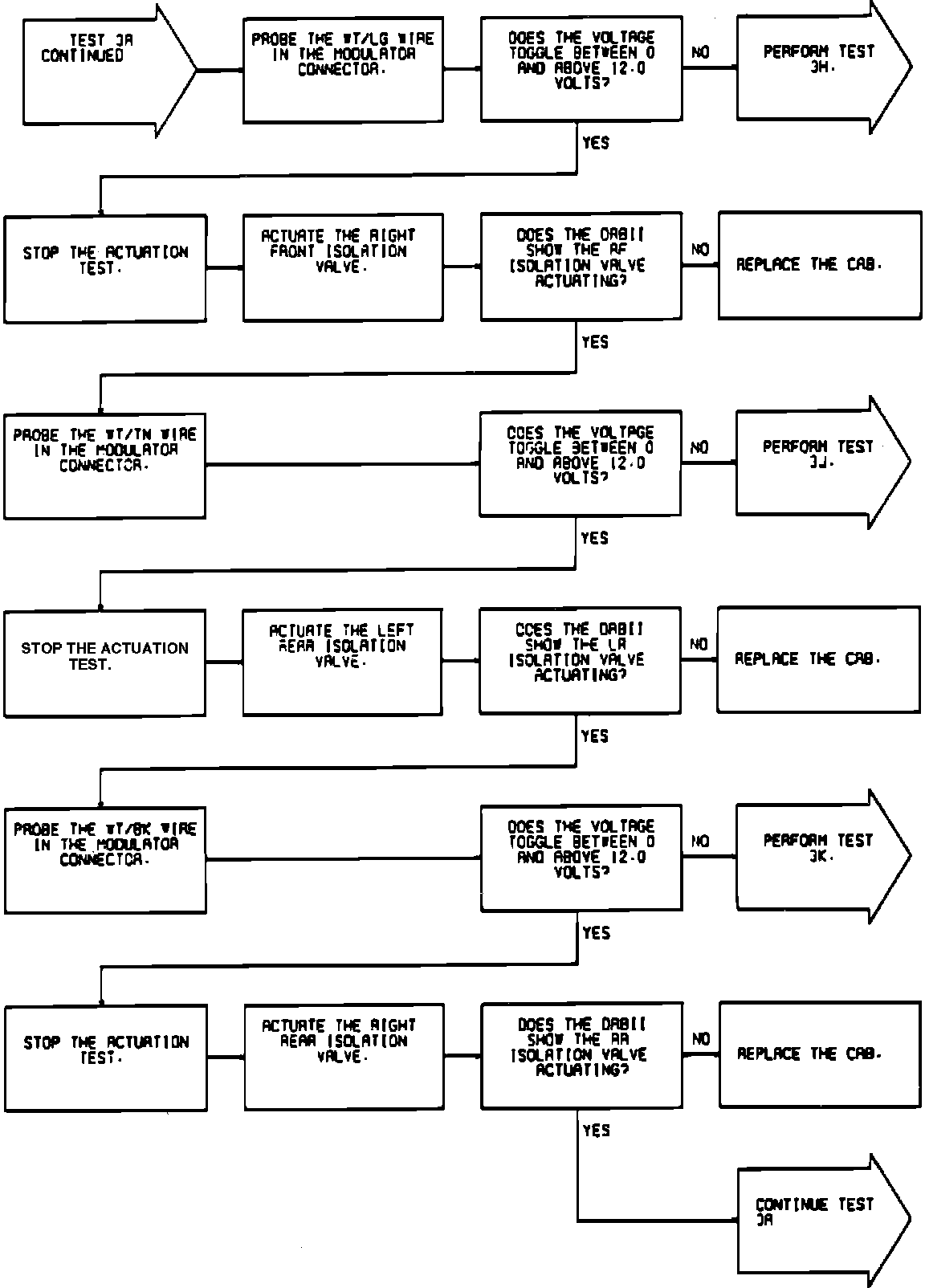

Fig. 13 Test 3A--Modulator Fault (Part 3 Of 5):

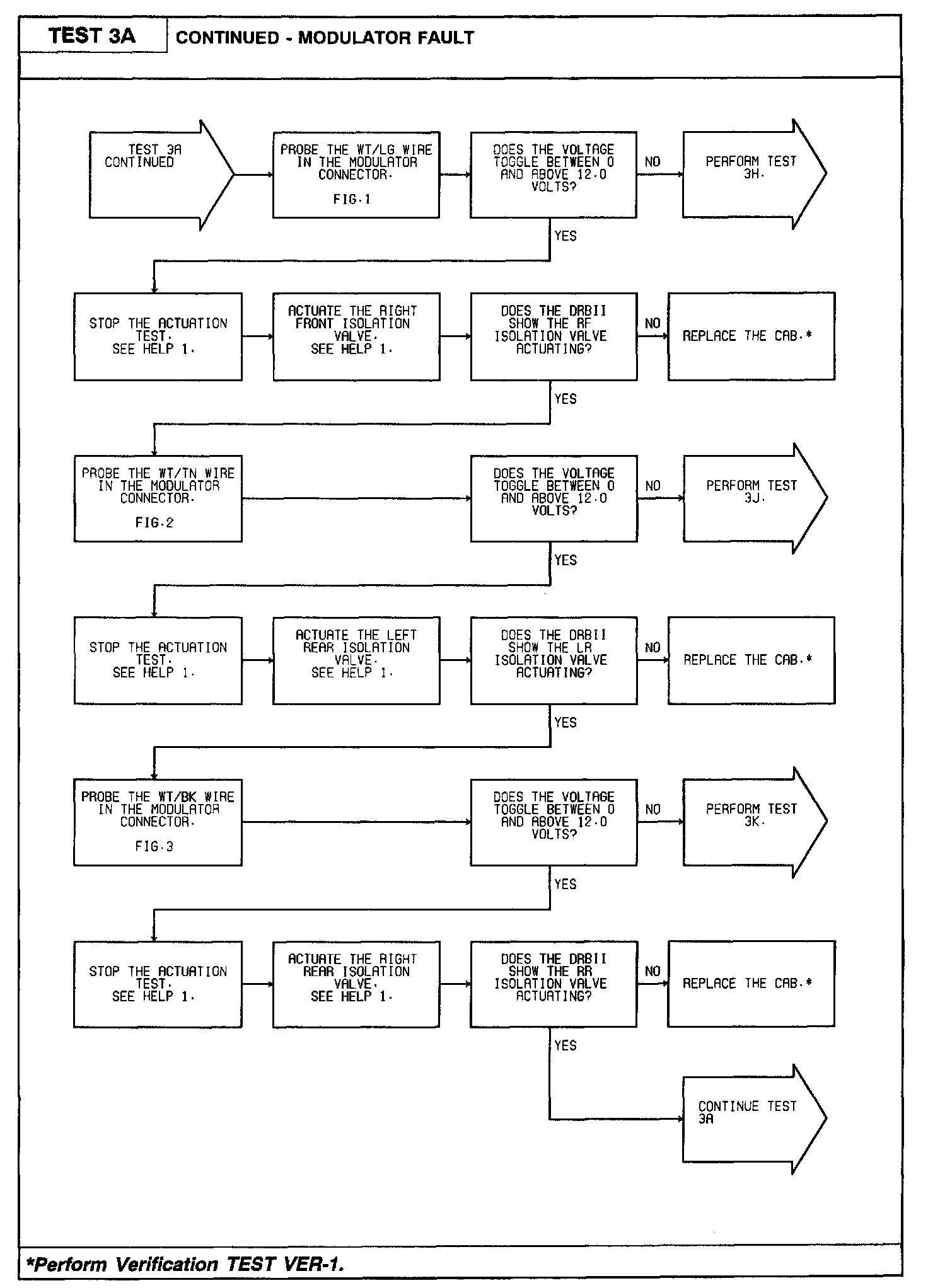

Fig. 13 Test 3A--Modulator Fault (Part 4 Of 5):

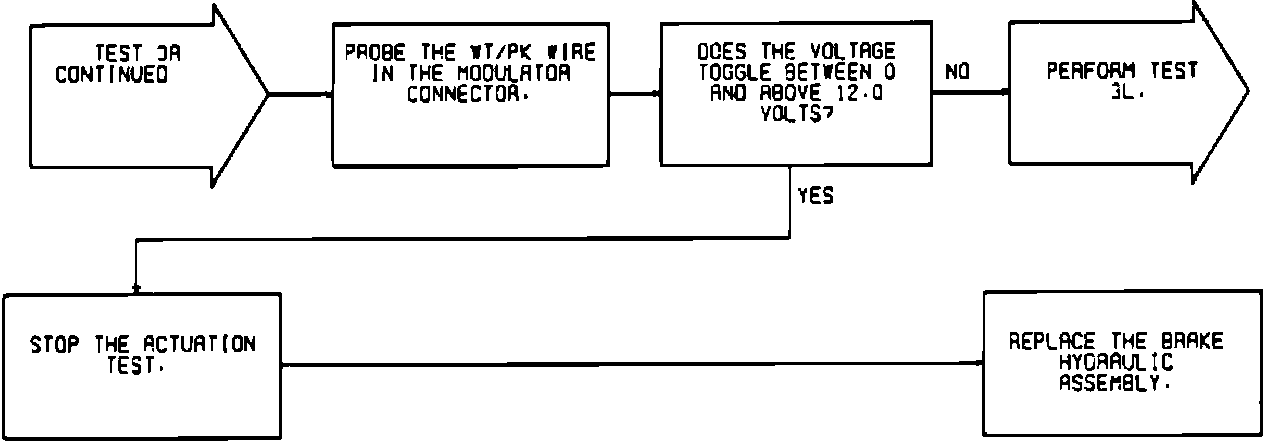

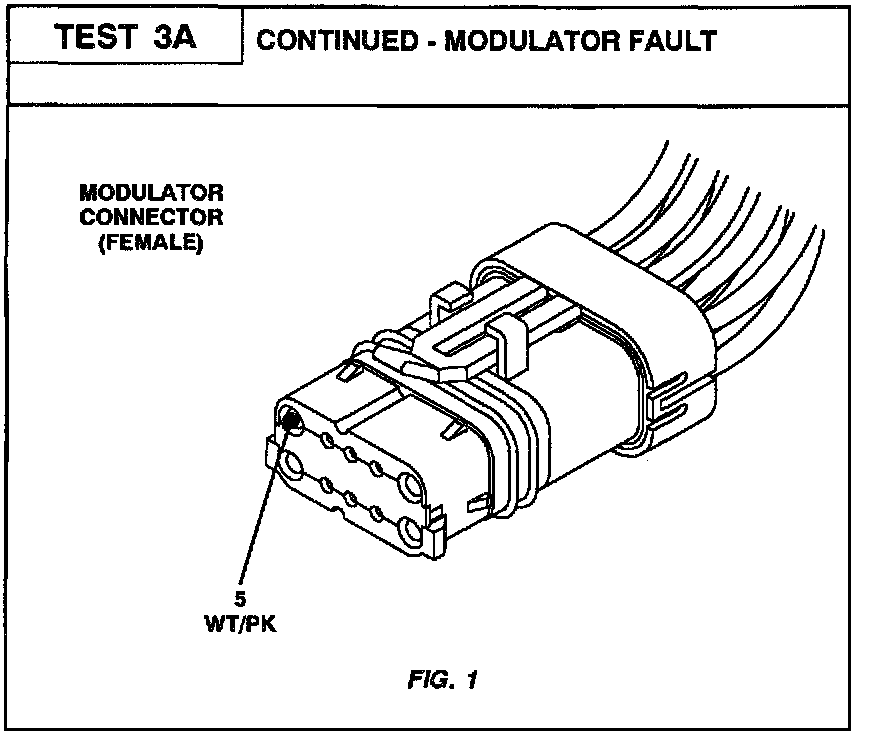

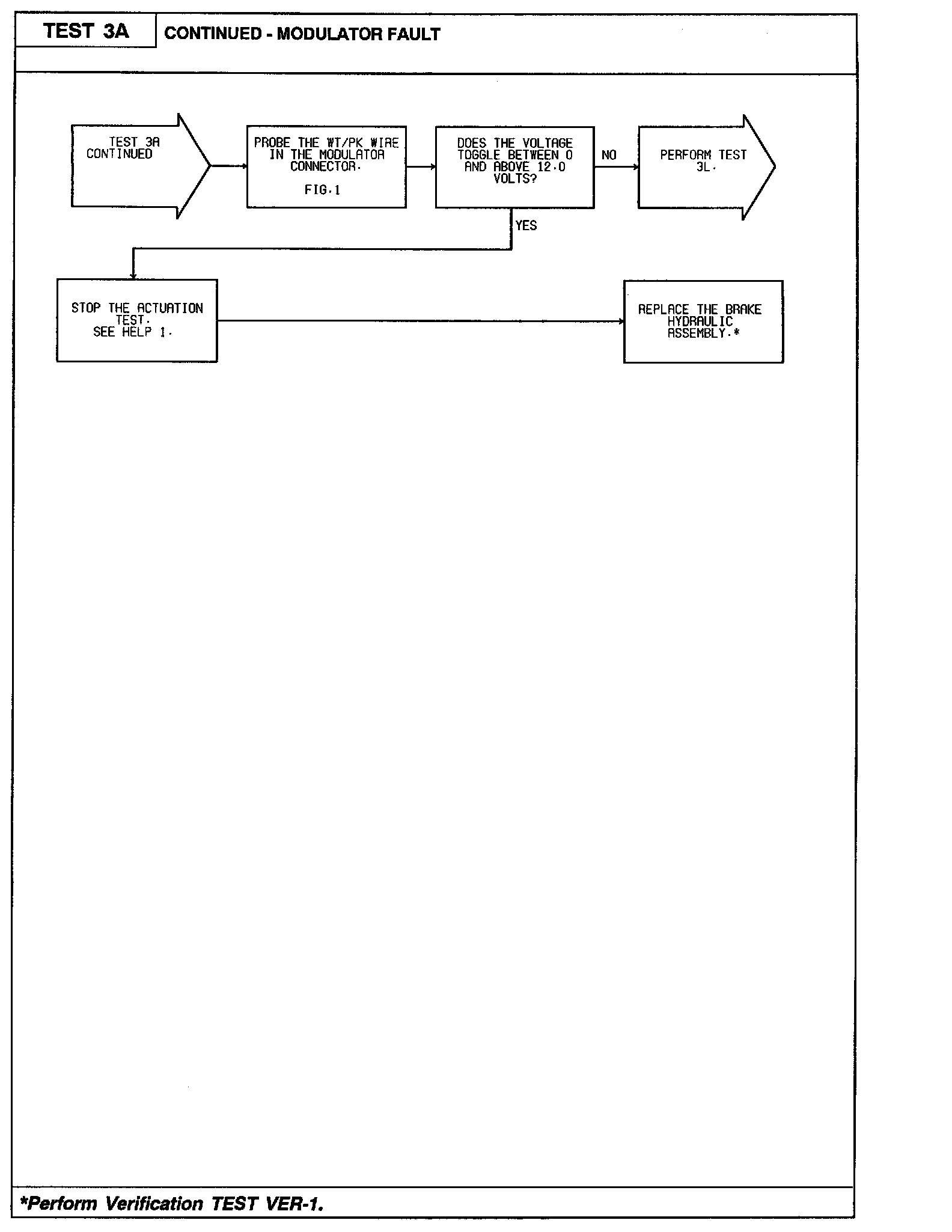

Fig. 13 Test 3A--Modulator Fault (Part 5 Of 5):
