Home >> Dodge >> 1990 >> Monaco L4-153 2.5L SOHC >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Test 17 - Primary Pressure/Delta Pressure Fault >> Test 17B

Test 17B

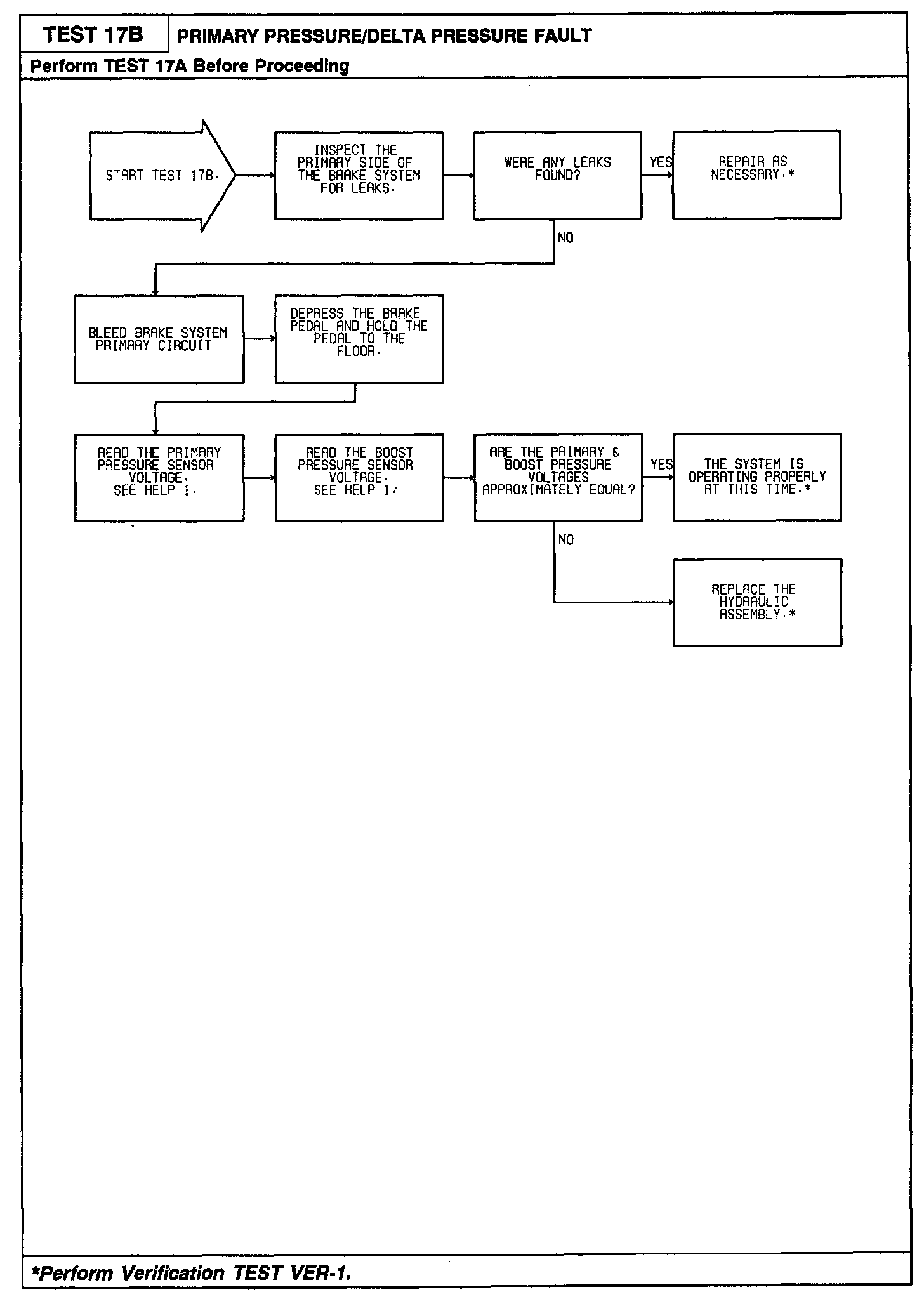

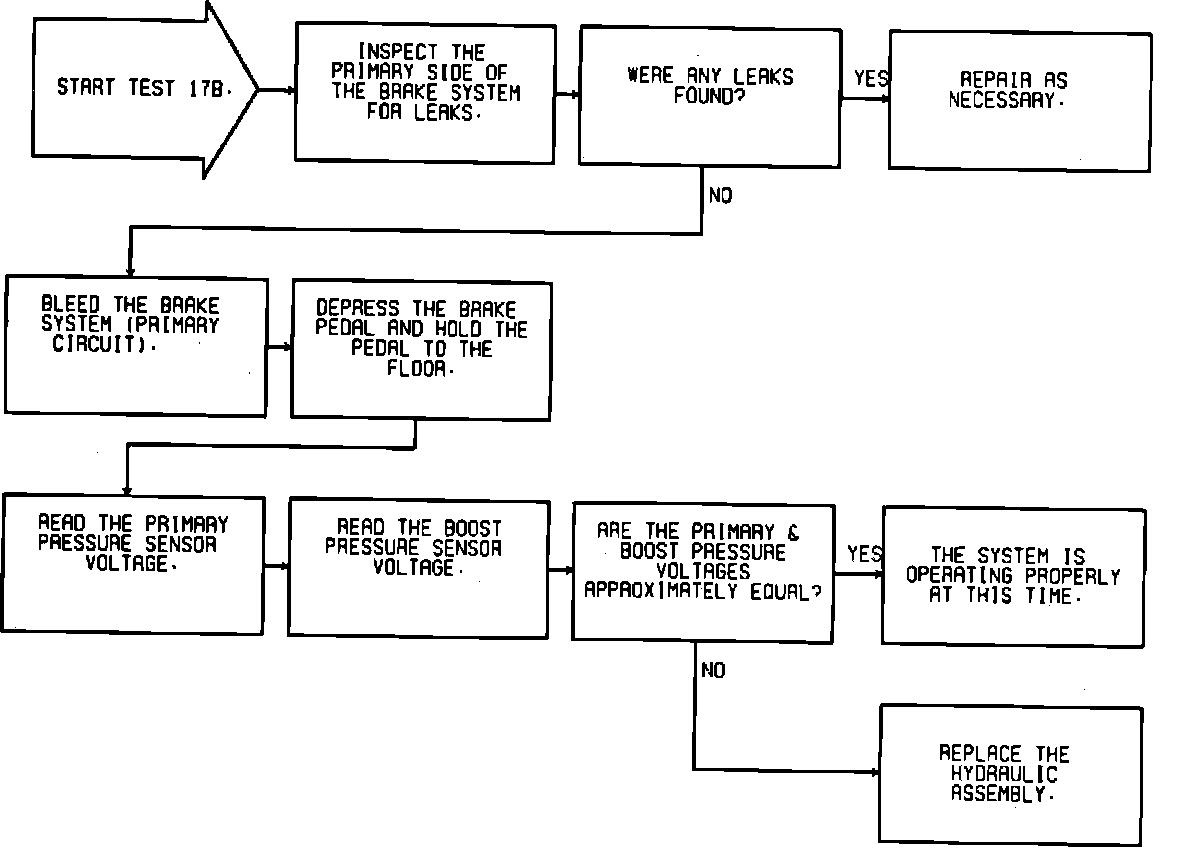

Fig. 104 Test 17B--Primary Pressure/Delta P Fault:
