Test 16A - Left Front Wheel Speed Sensor Fault
Test 16A - Left Front Wheel Speed Sensor Fault

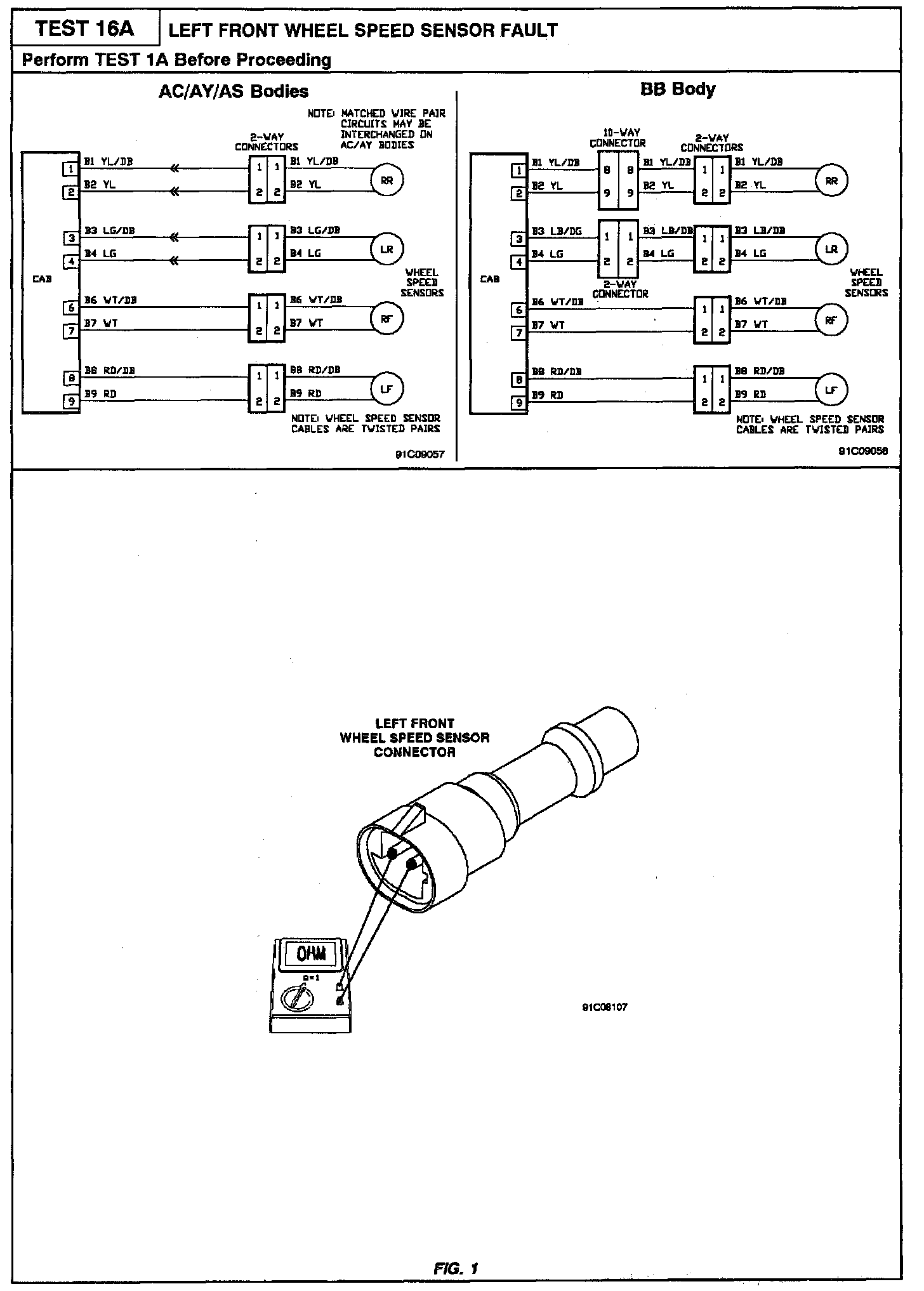

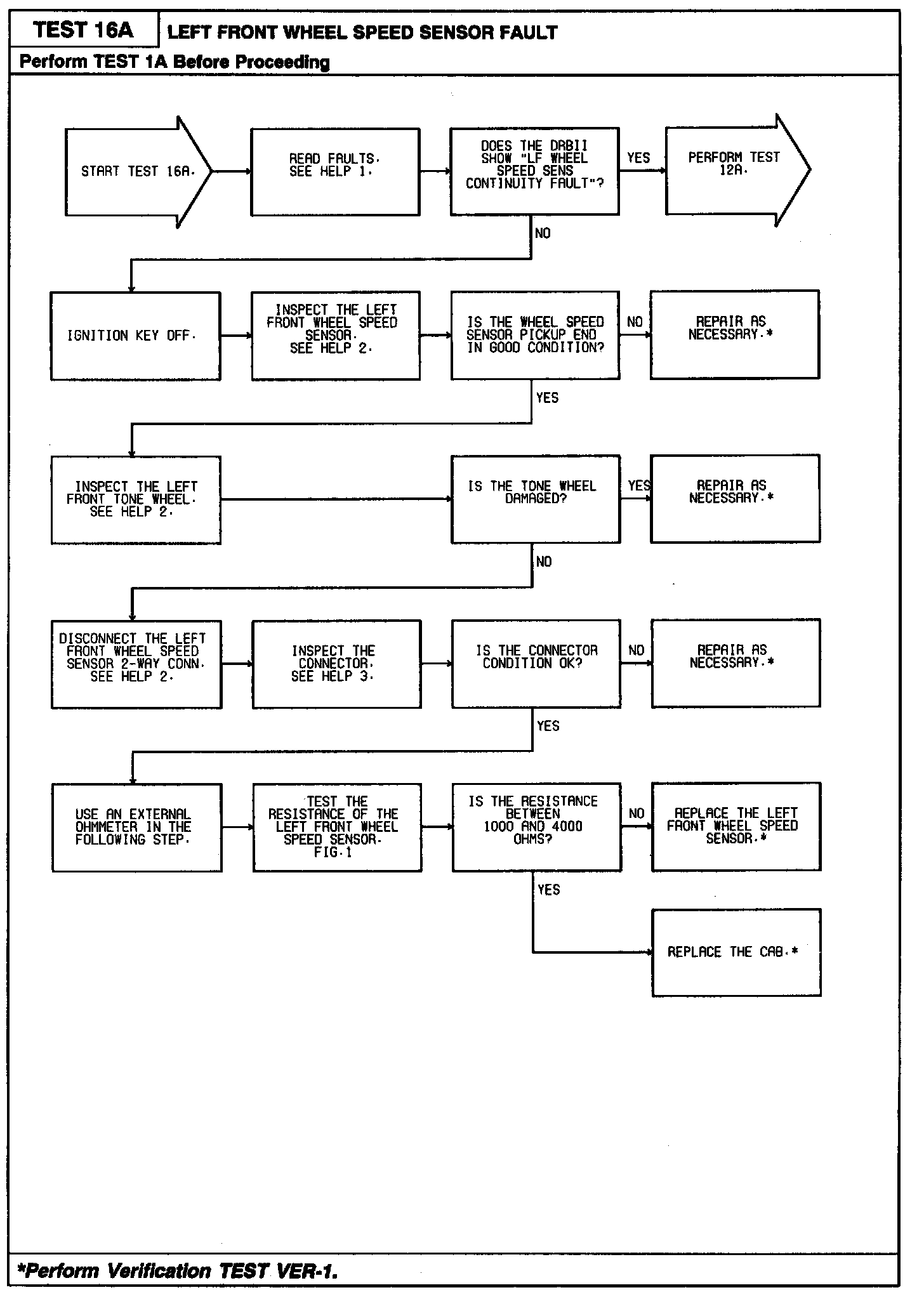

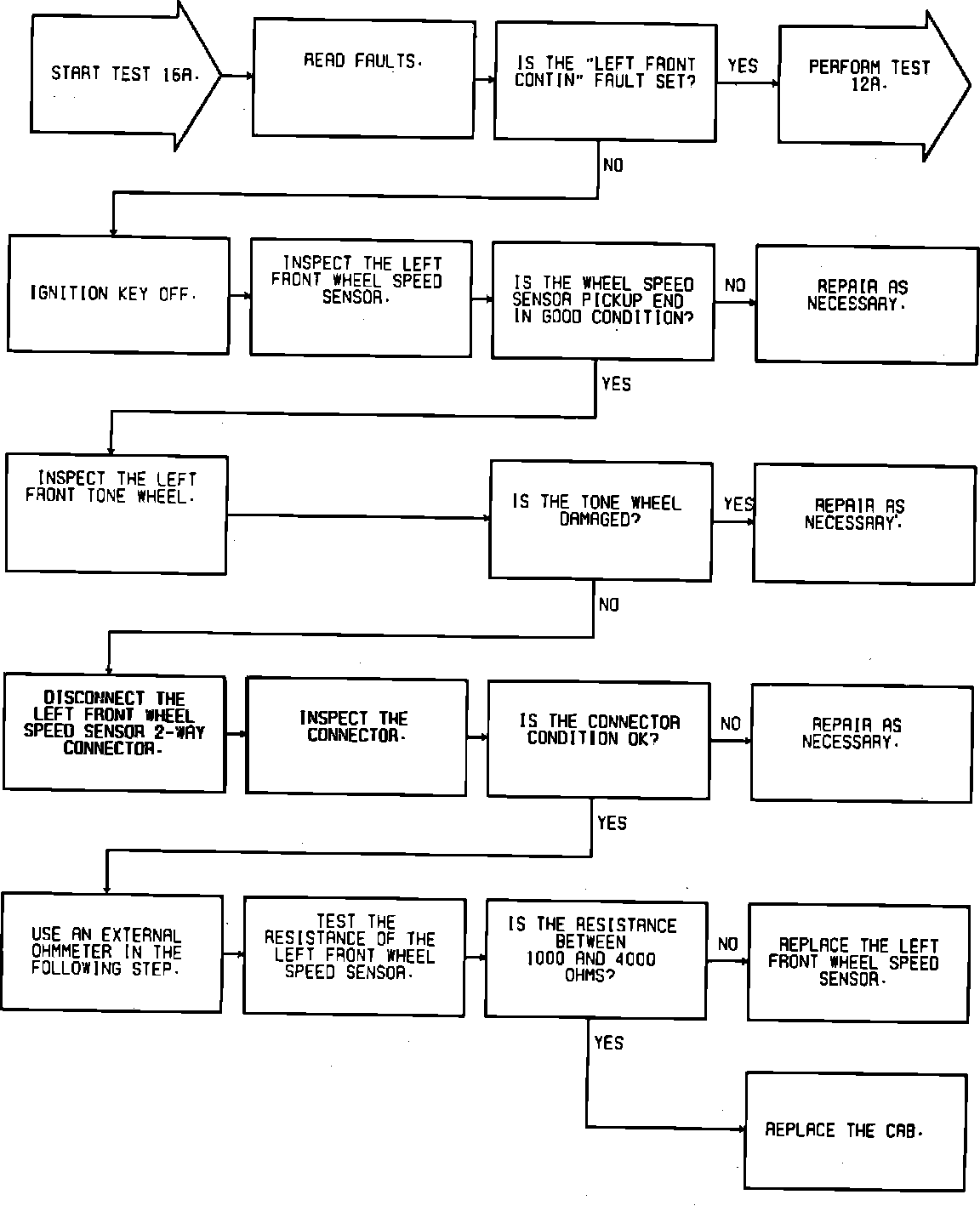

Fig. 102 Test 16A--Left Front Sensor Fault:
