Home >> Dodge >> 1990 >> Monaco L4-153 2.5L SOHC >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Test 10 - Left Rear Wheel Speed Sensor Continuity Fault >> Test 10E

Test 10E

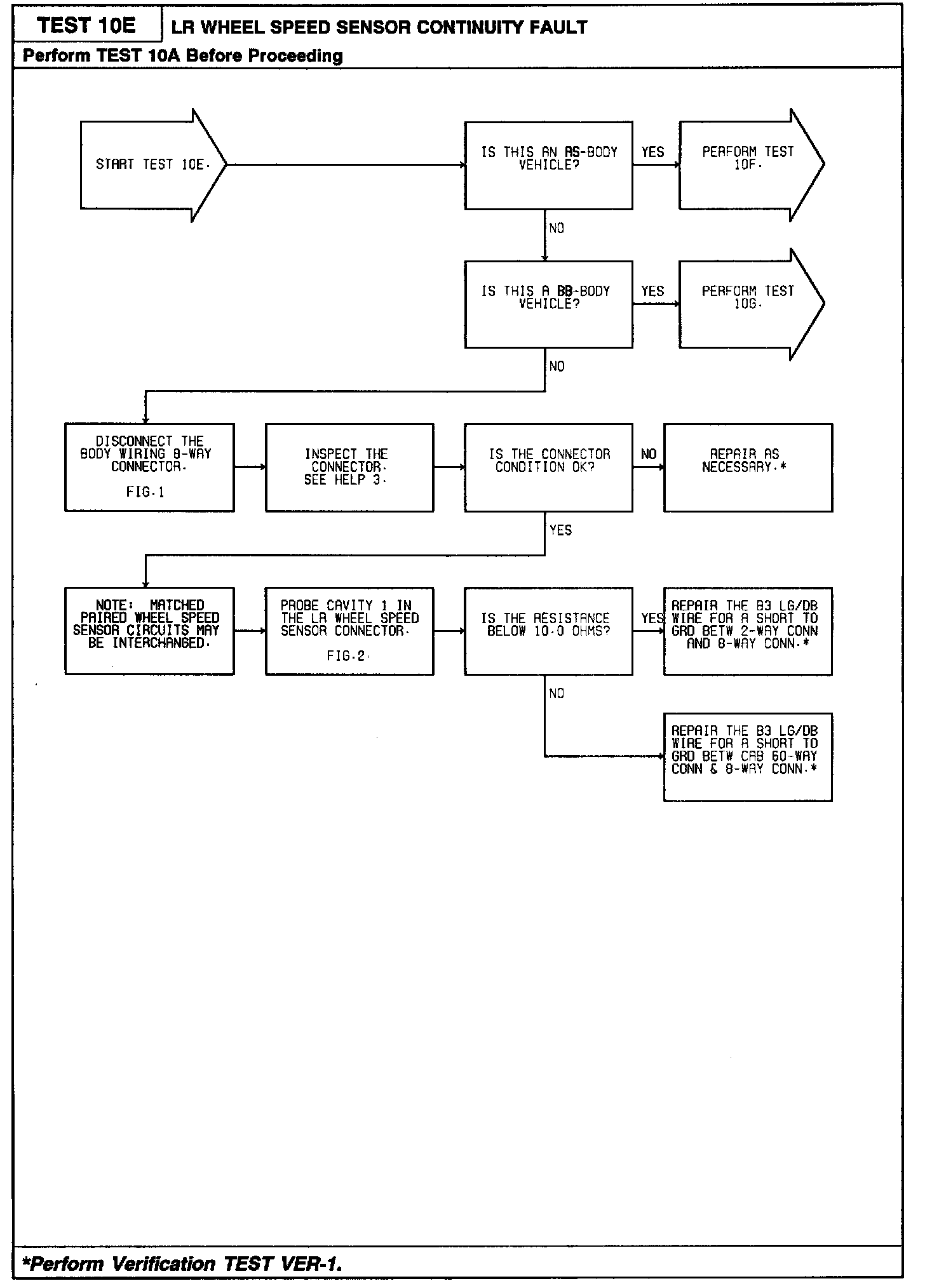

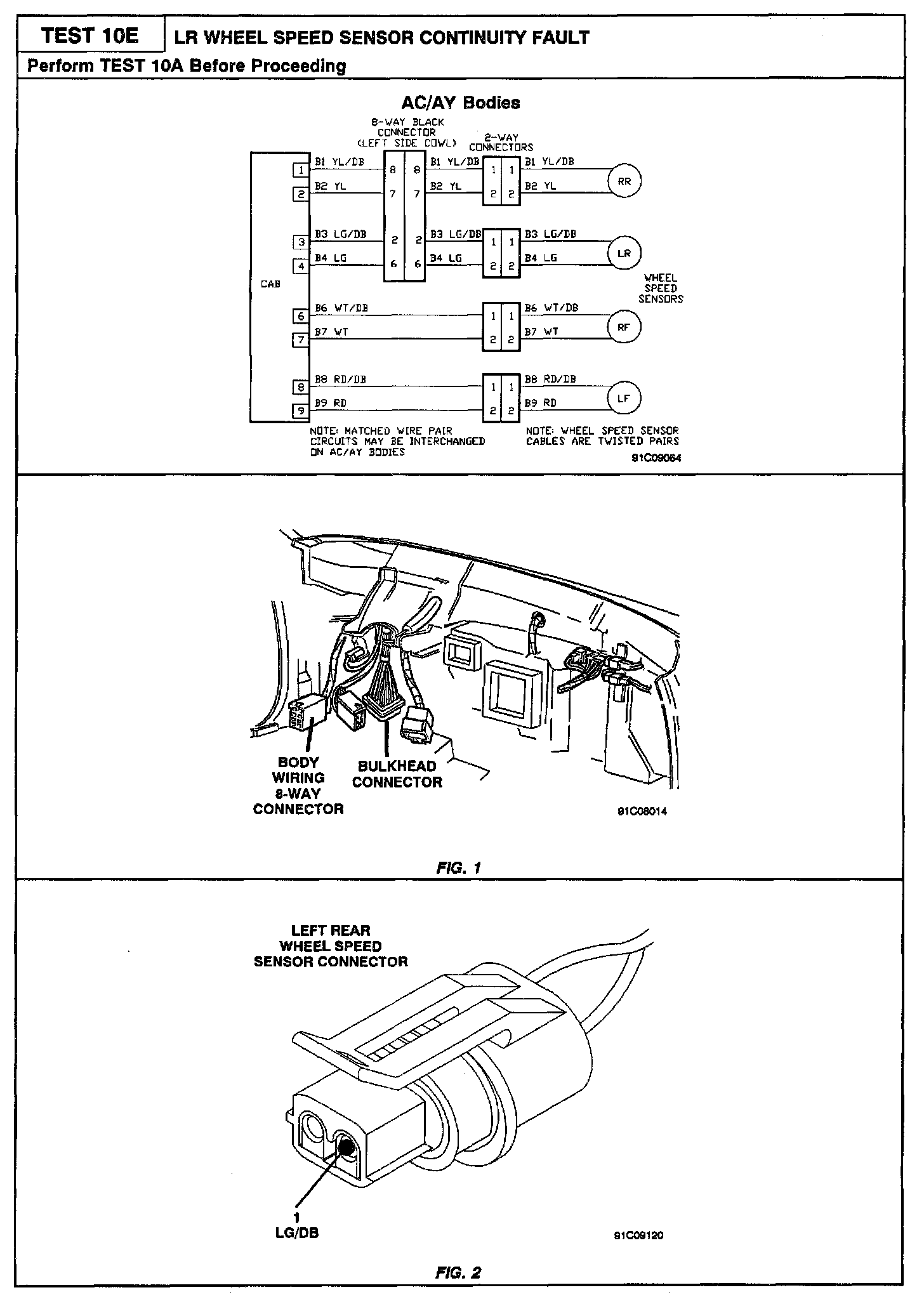

Fig. 86 Test 10E--Left Rear Wheel Speed Sensor Continuity Fault:
