Home
>>
Dodge
>>
1990
>>
Dynasty V6-201 3.3L
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Instrument Panel
>>
Lamp Out Module
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

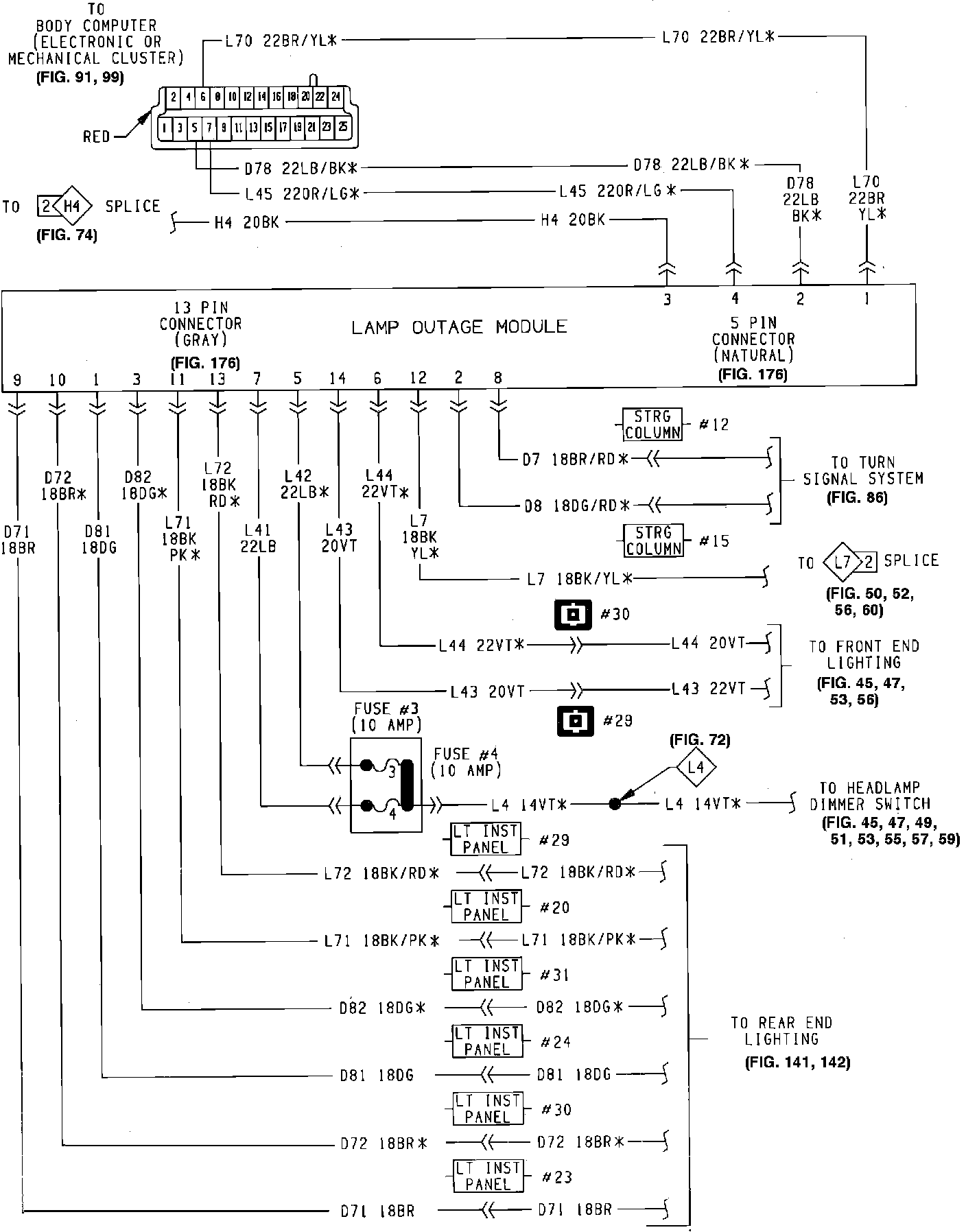

Lamp Outage Module:
