Dodge
>>
1990
>>
Dynasty V6-201 3.3L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
Door Ground Systems
Door Ground Systems

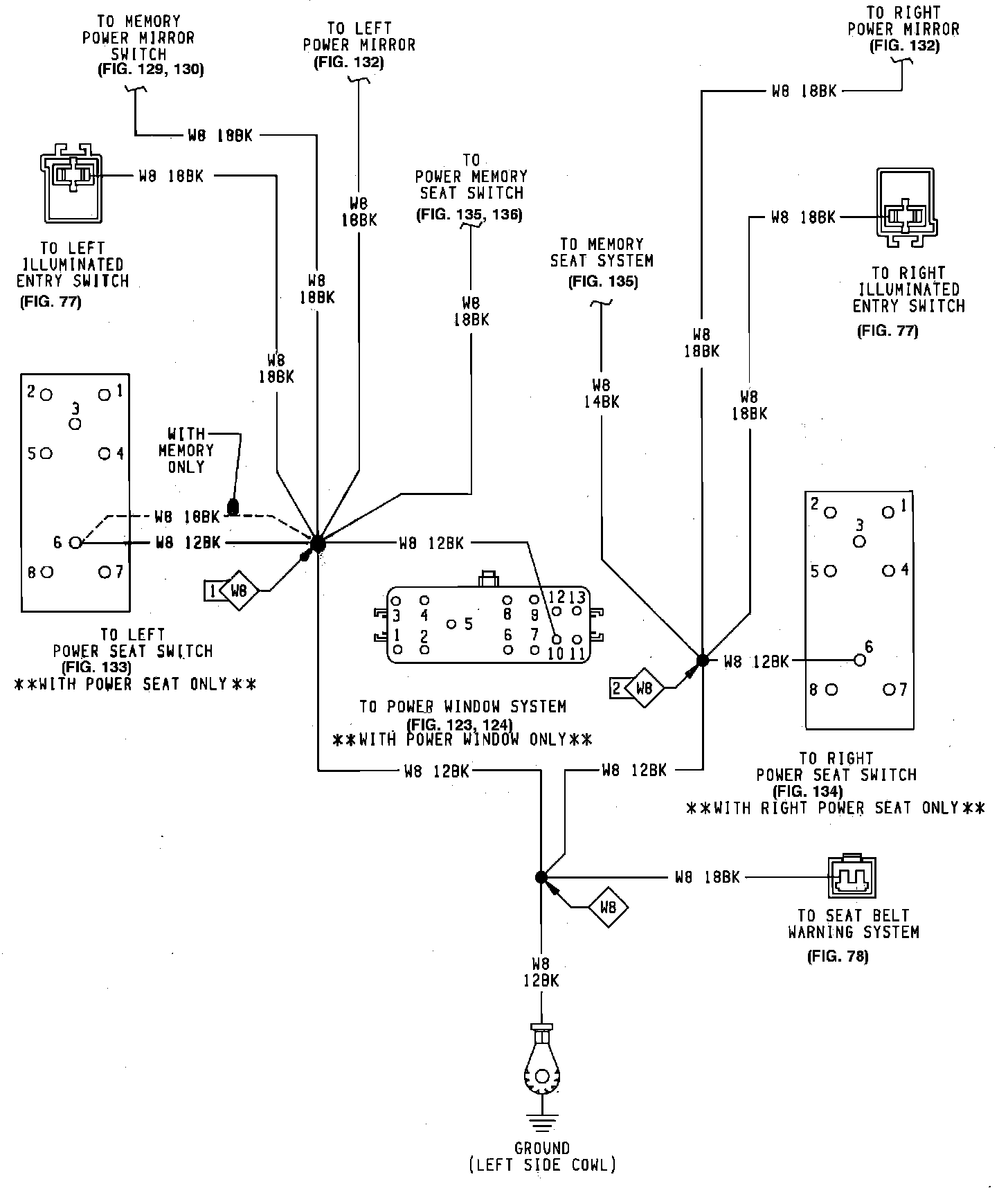

Door Electrical Ground System:
