Dodge
>>
1990
>>
Dynasty V6-201 3.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antitheft and Alarm Systems
>>
With Mechanical Cluster
With Mechanical Cluster

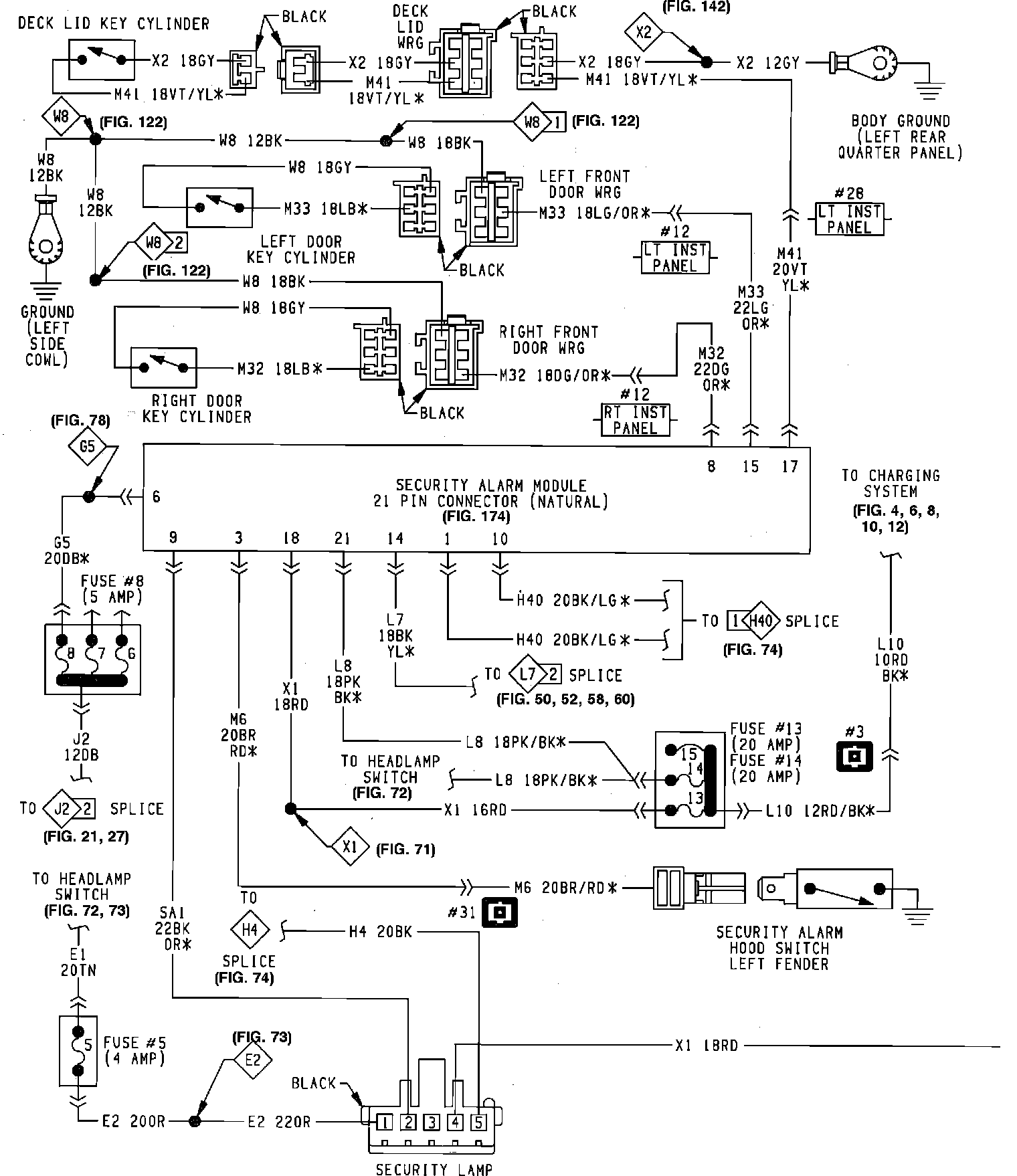

Security Alarm - Mechanical Cluster:
