Bendix

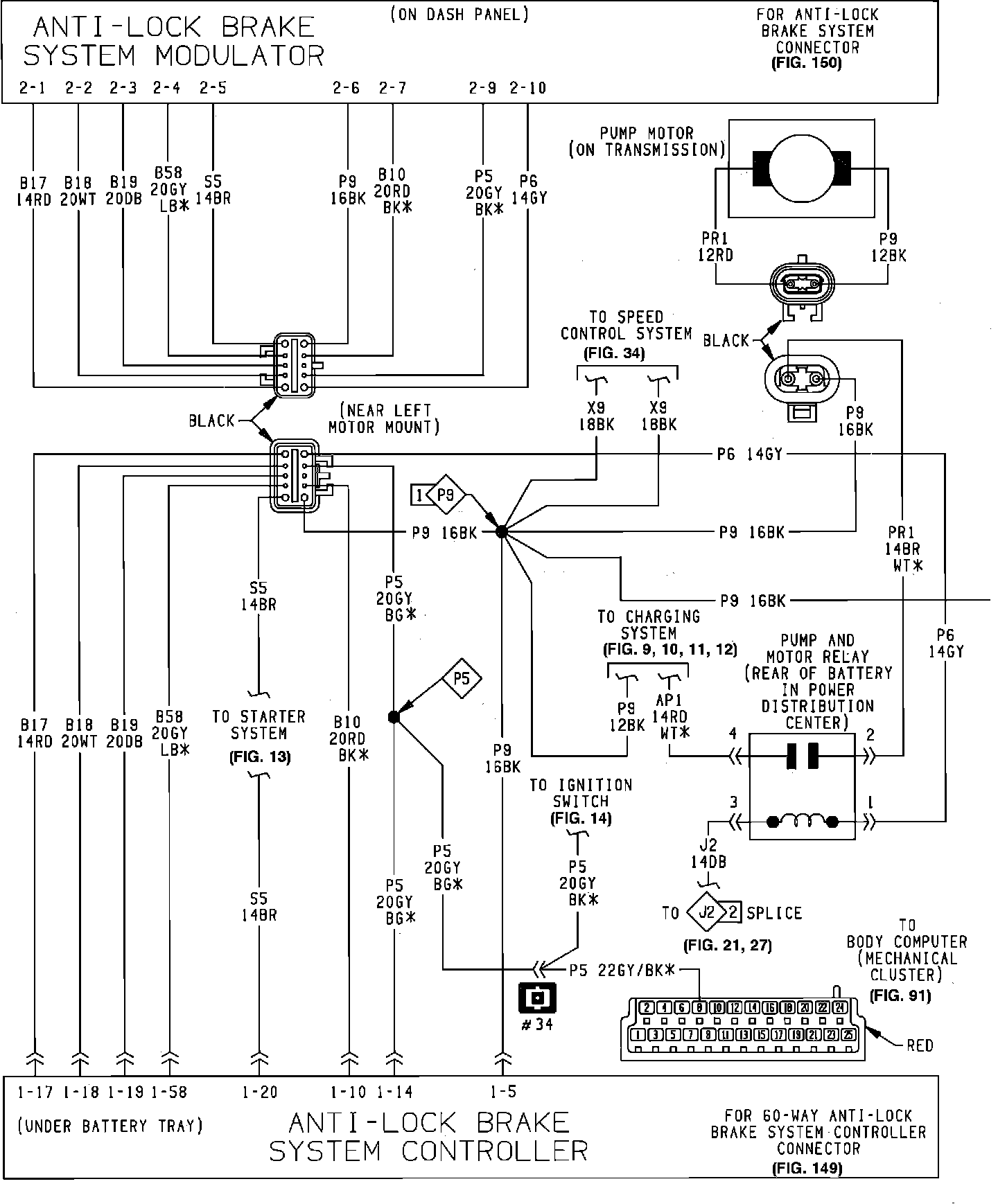

Bendix Anti-Lock Brakes:

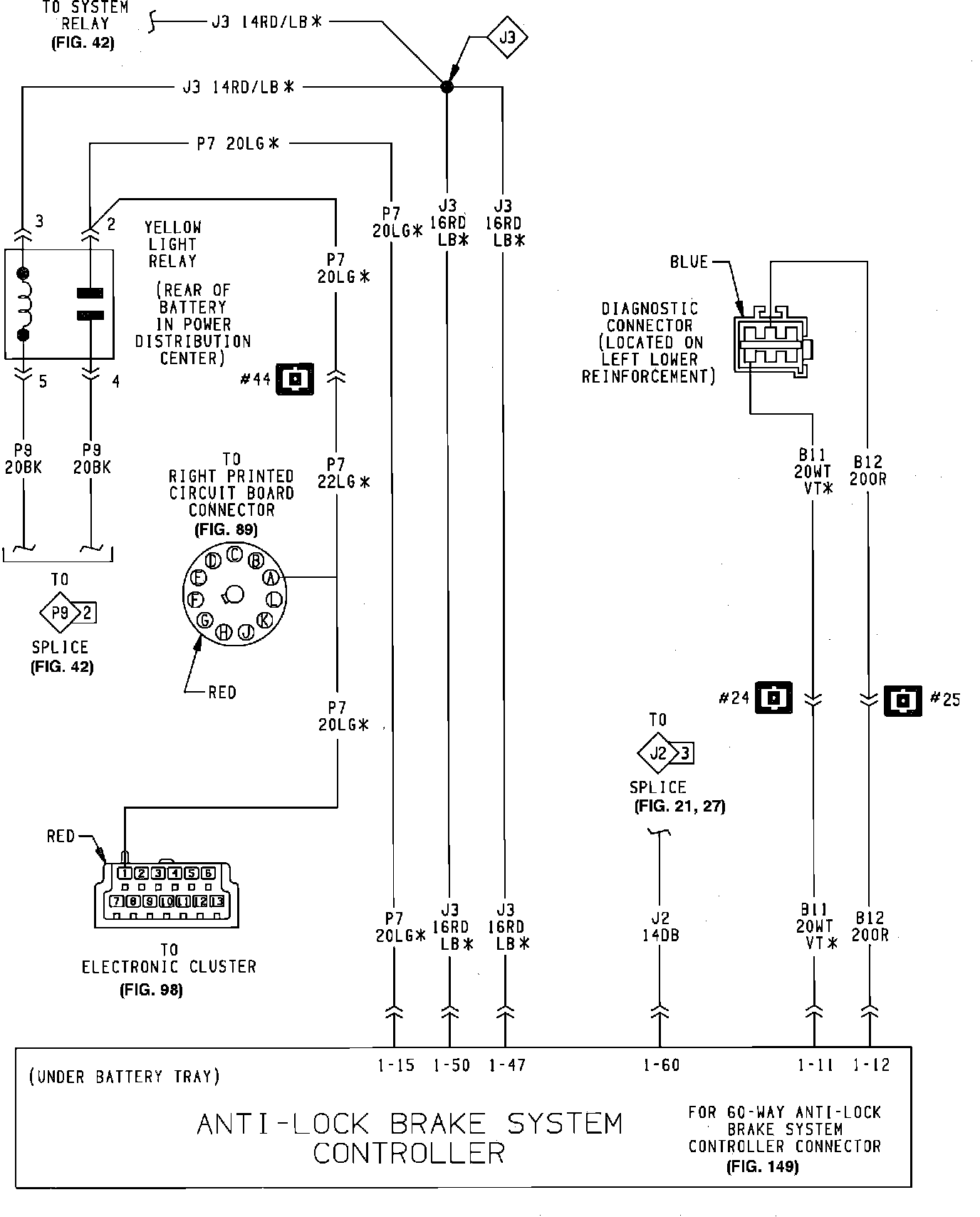

Bendix Anti-Lock Brakes:

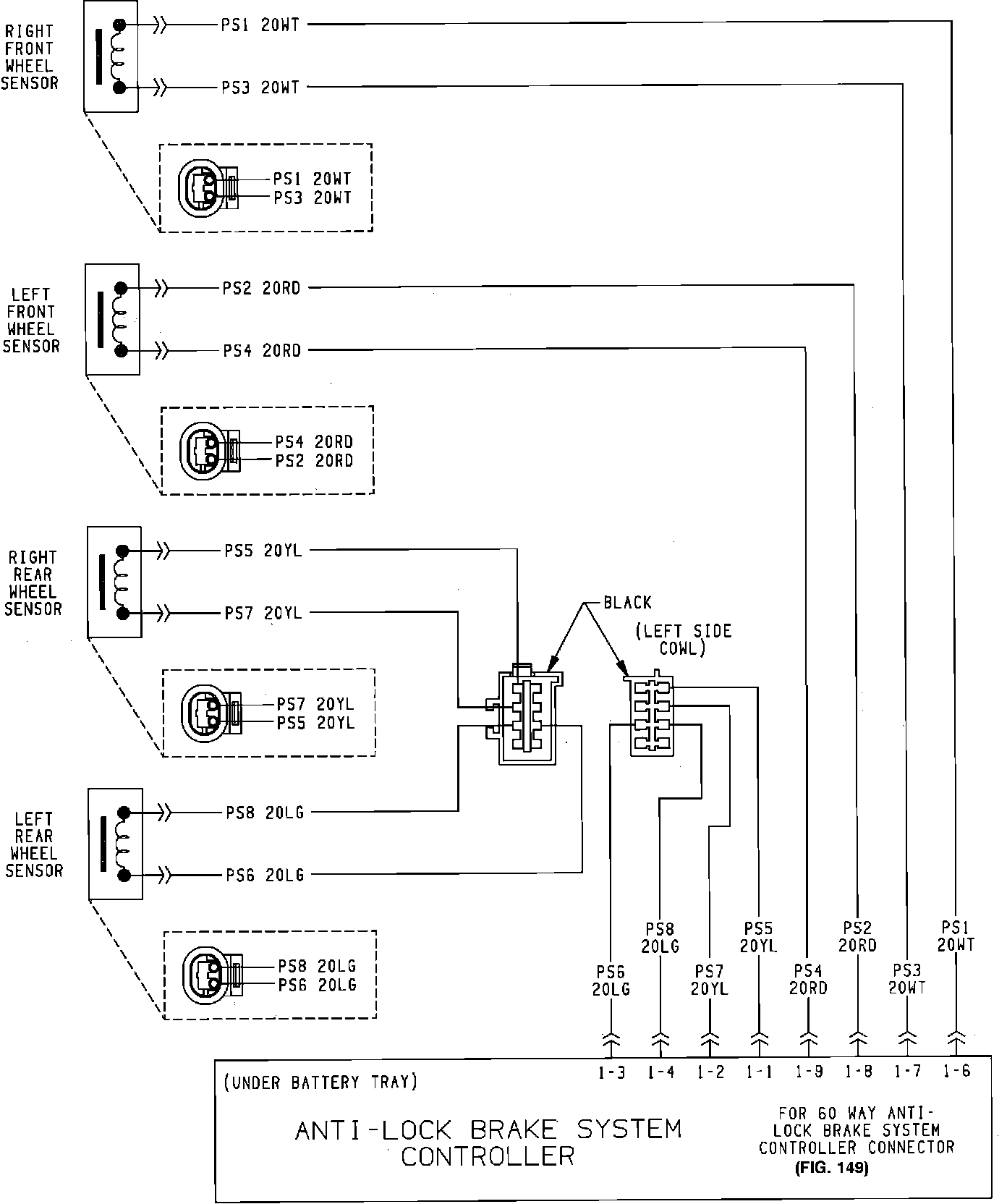

Bendix Anti-Lock Brakes:



Bendix Anti-Lock Brakes:
