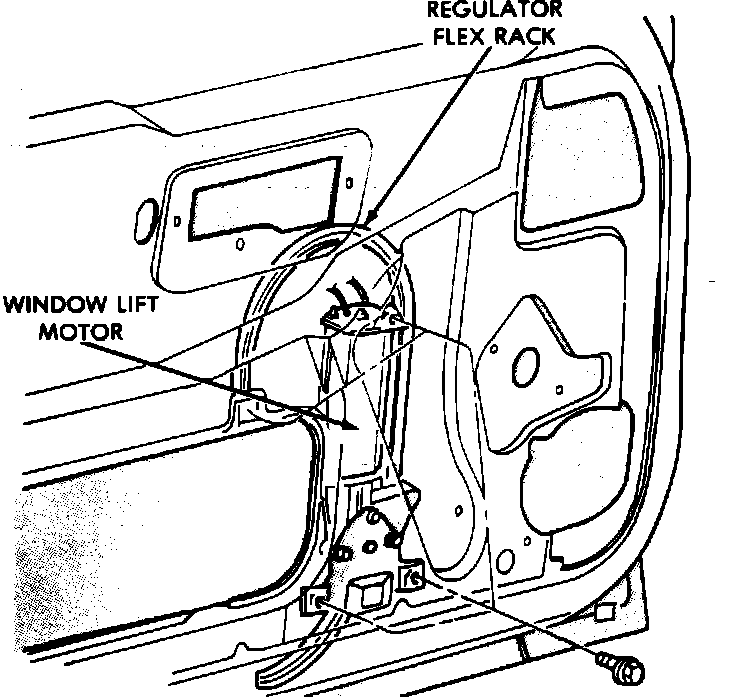

Power Window Motor: Locations

Power Window Components:

The window regulator is a flex drive design. The power window motor is attached to the window regulator. The window motor/regulator assembly is attached to the inner door panel of each door.
