Home
>>
Dodge
>>
1990
>>
Daytona Shelby L4-135 2.2L SOHC Turbo
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Diagrams
>>
Electrical Diagrams
>>
With Electronic Transaxle
With Electronic Transaxle

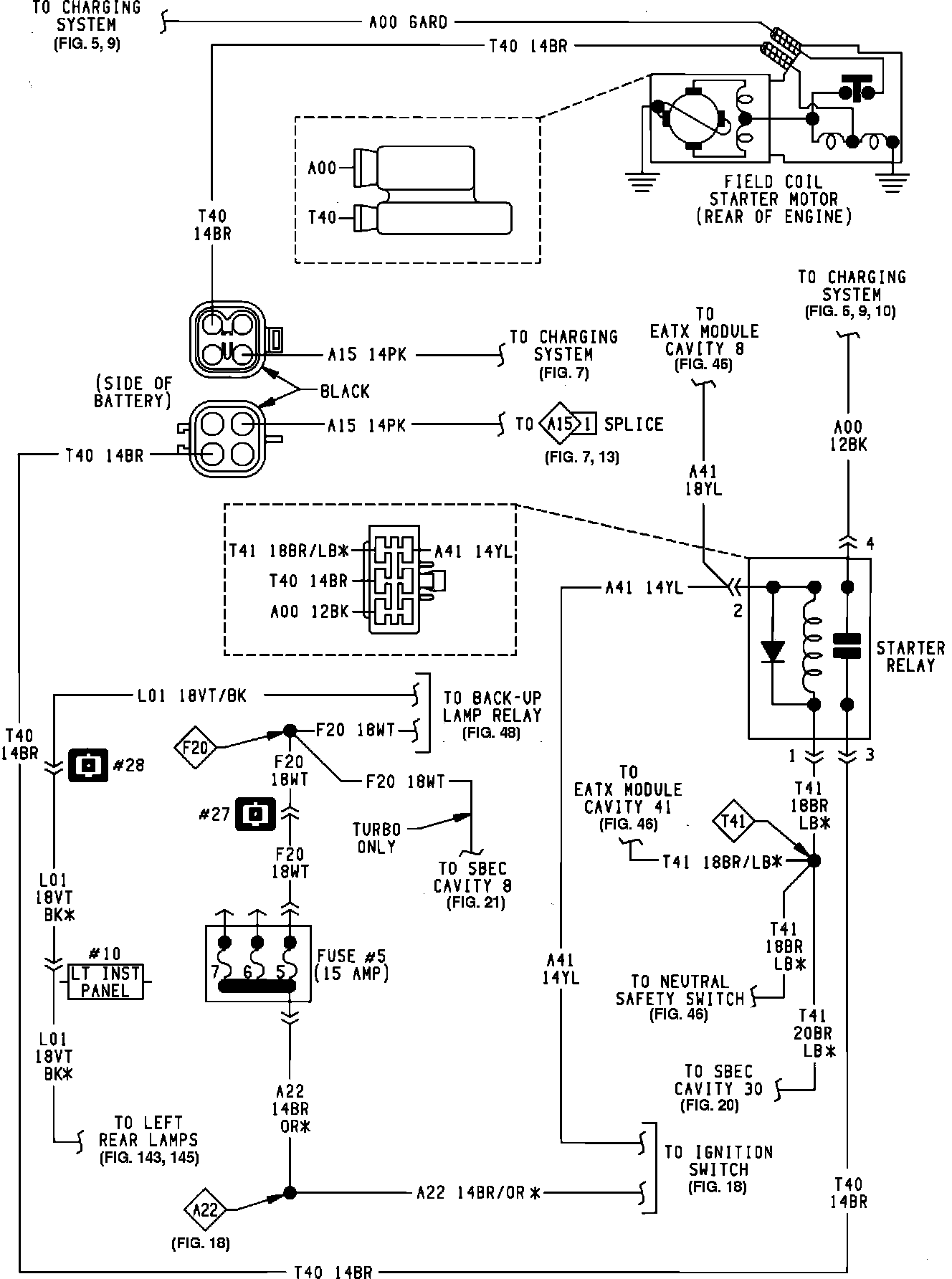

Starter System EATX (Except 3.0L):
