Daytona Shelby L4-135 2.2L SOHC Turbo
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Instrument Panel
>>
Active Check Module
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

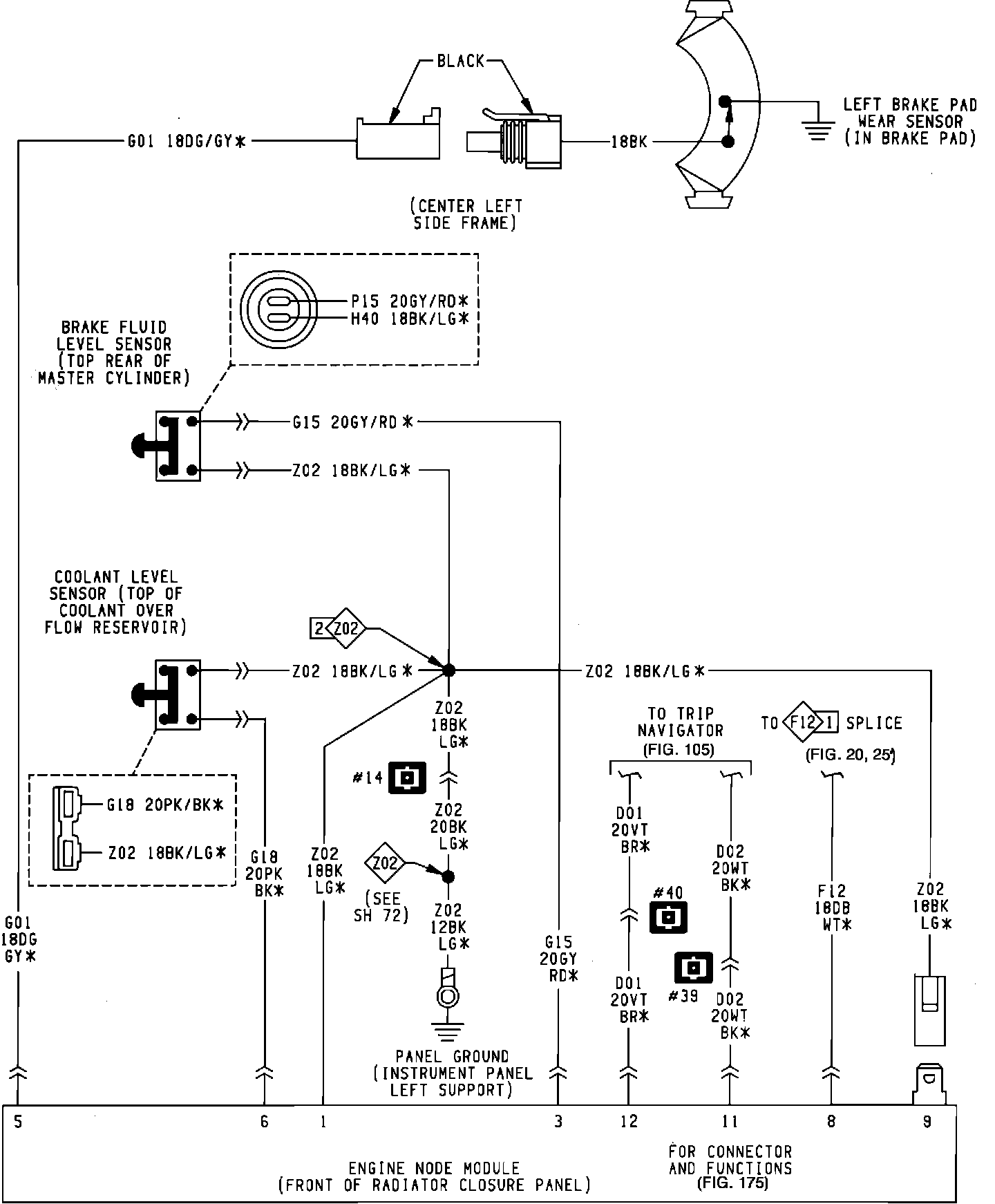

Electronic Node Module (Turbo Man. Trans.):
