Home >> Dodge >> 1990 >> Daytona Shelby L4-135 2.2L SOHC Turbo >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams

Electrical Diagrams

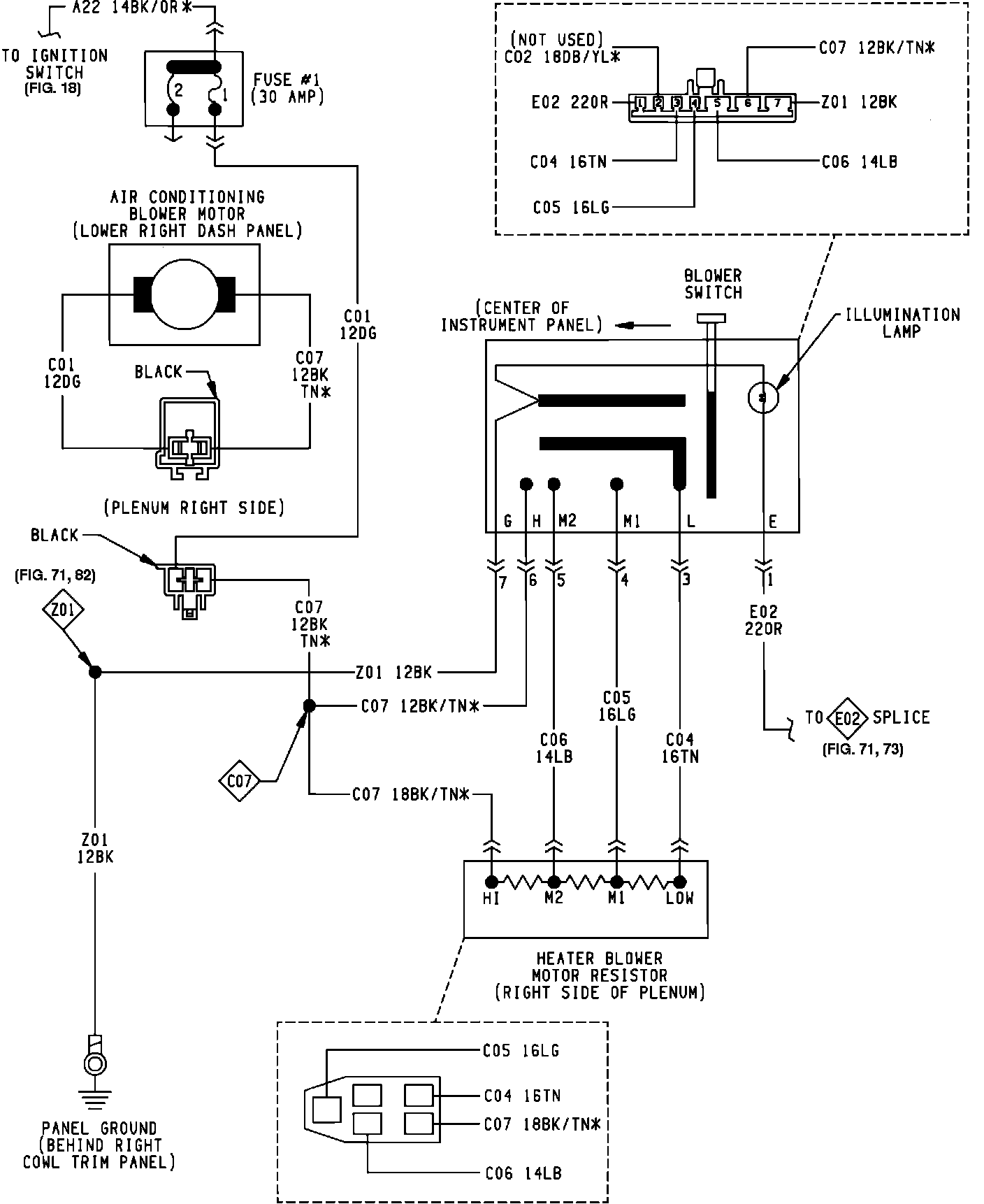

Heater System:

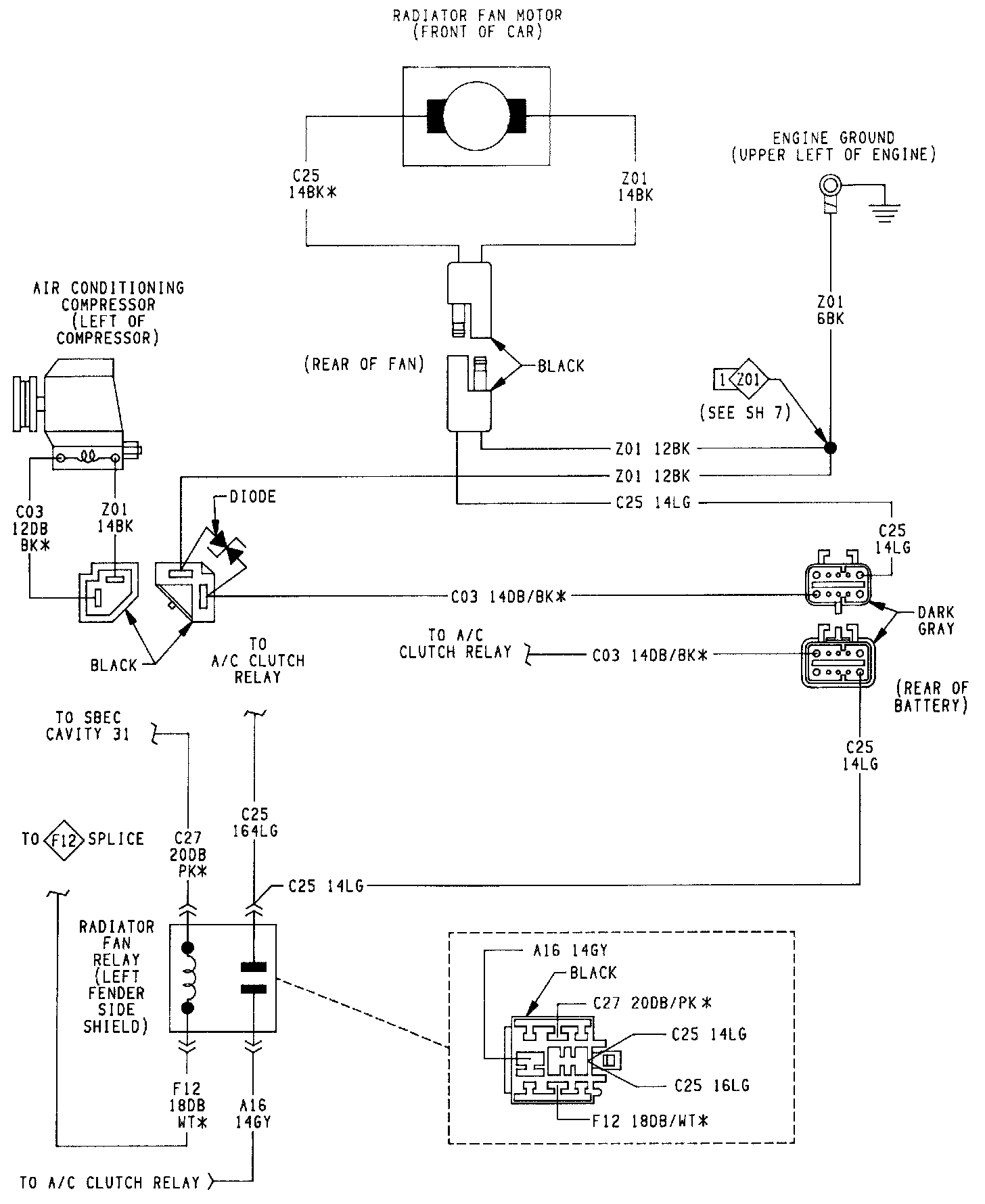

Radiator Fan System With Heater:

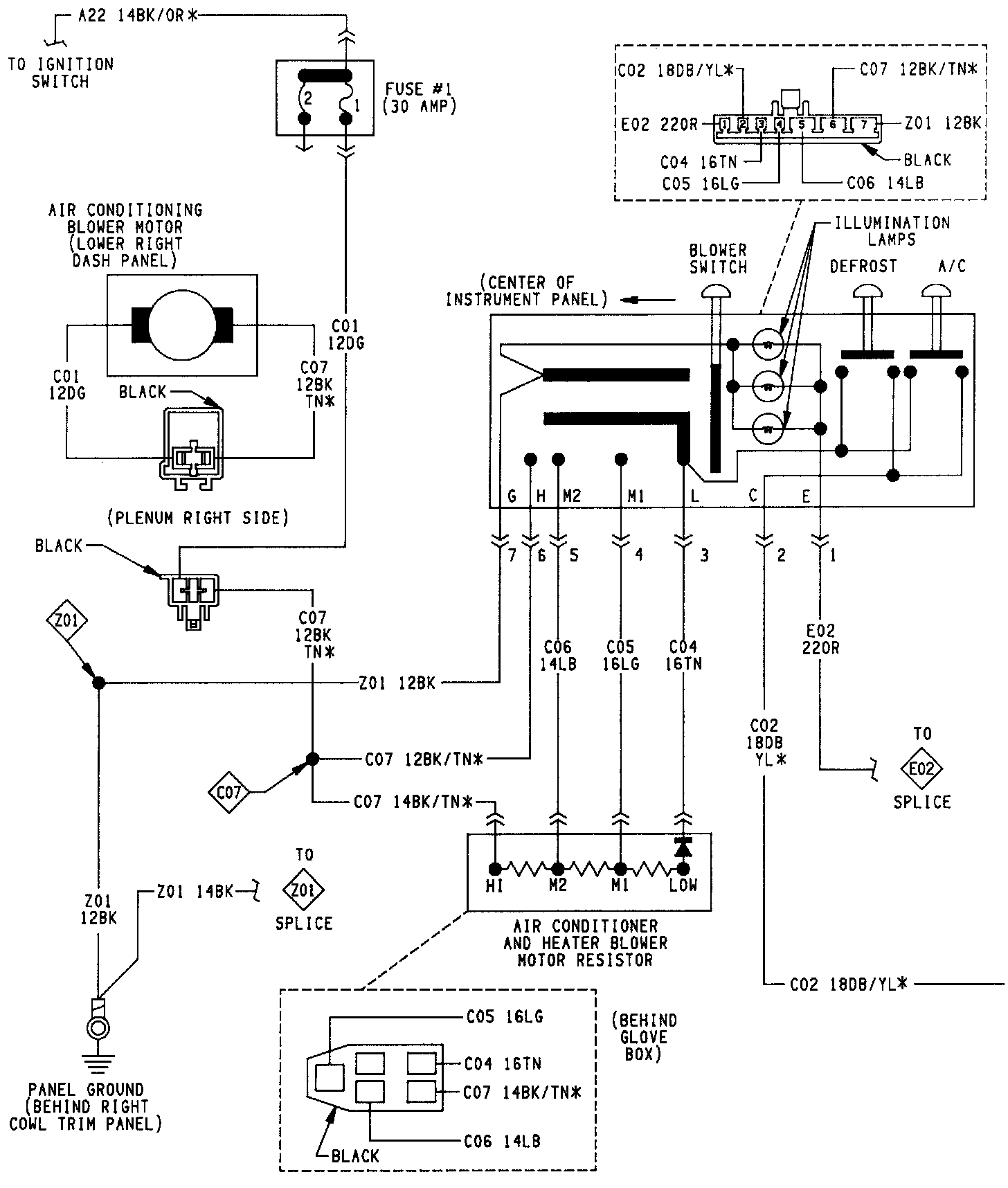

Air Conditioning And Heater System:

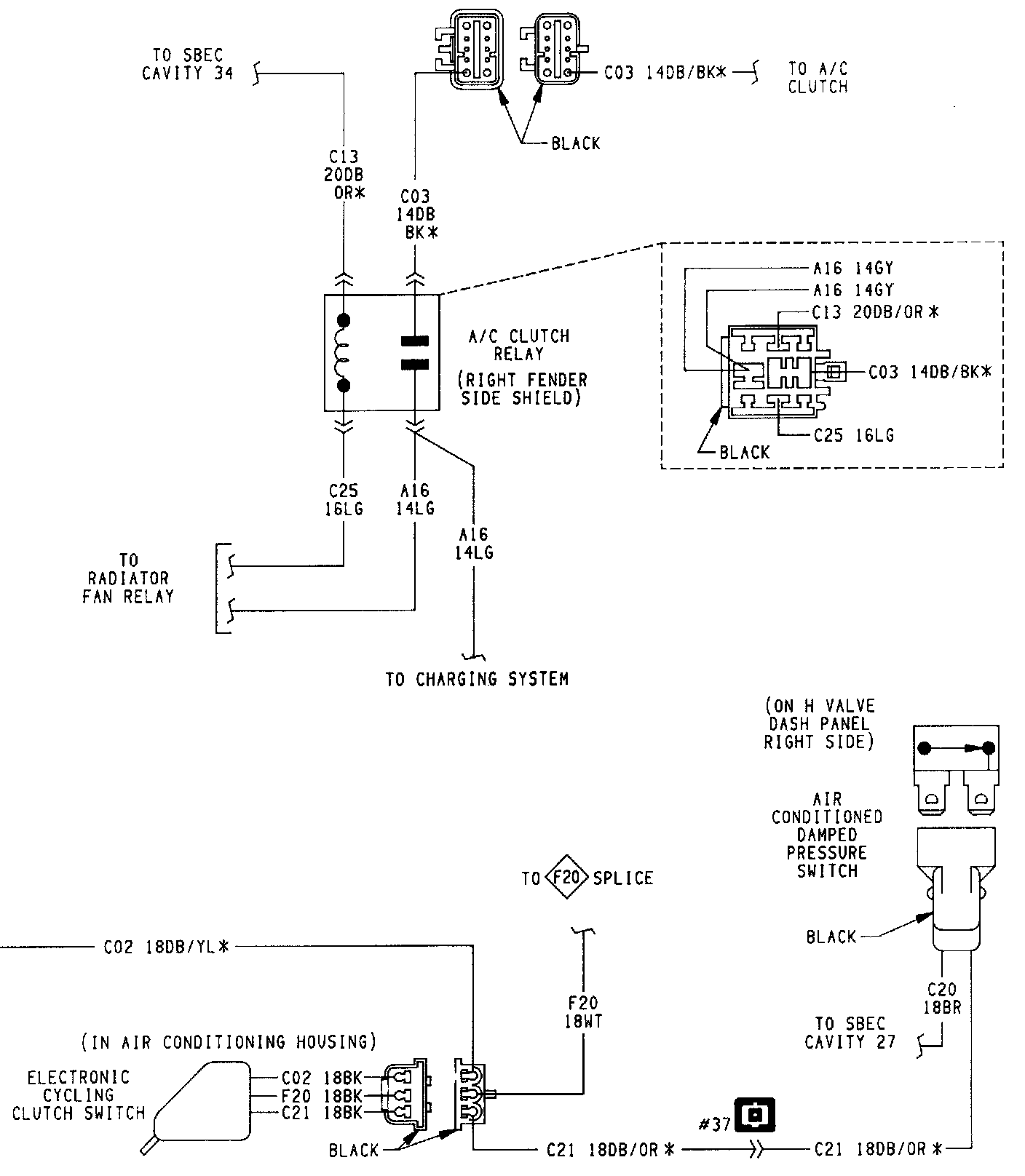

Radiator Fan System With Air Conditioning And Heater System:



Radiator Fan System With Heater/Air Conditioning:
