Daytona Shelby L4-135 2.2L SOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
System Diagram
>>
Front End Lighting
>>
Manual Trans
Manual Trans

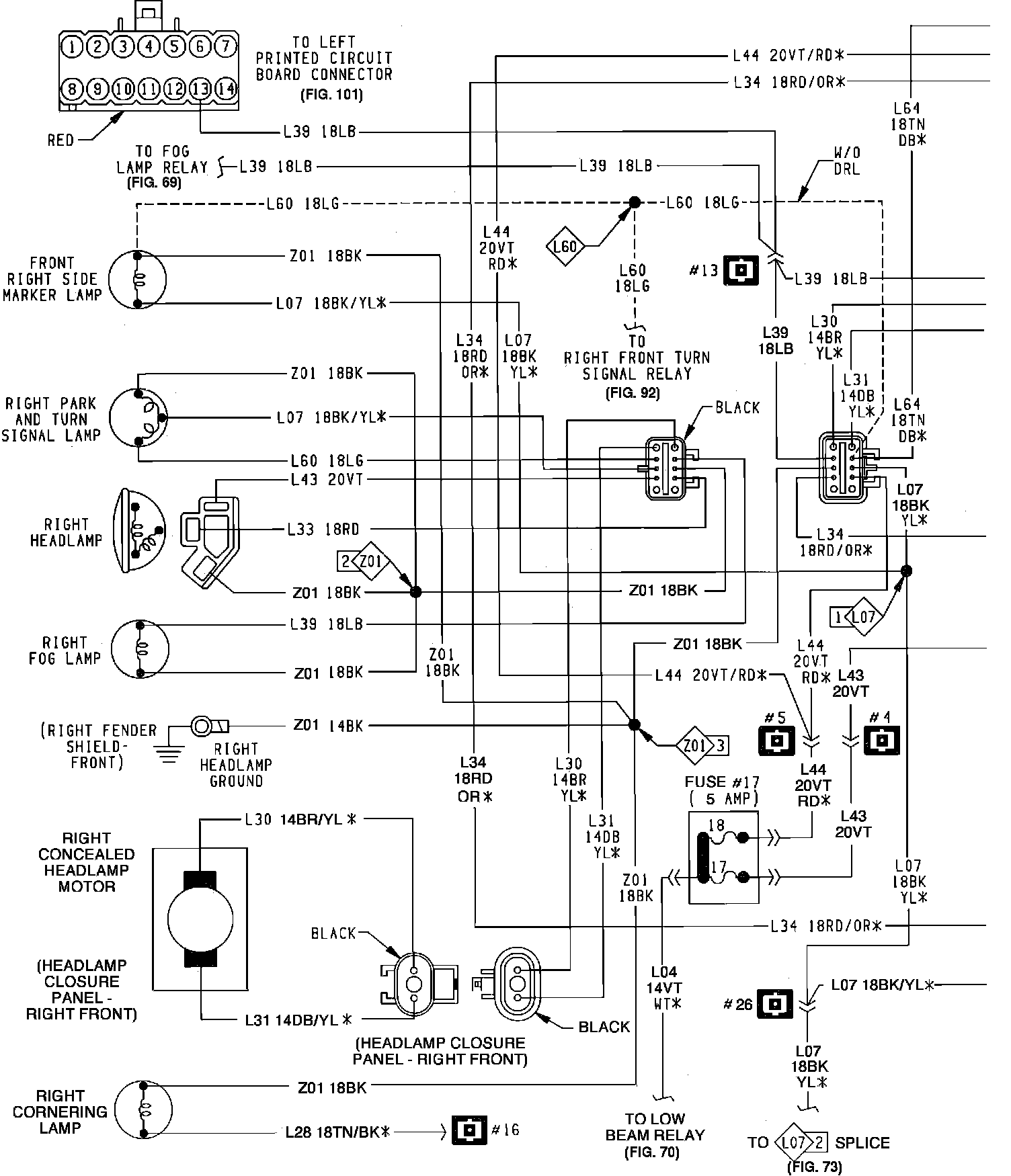

Front End Lighting (Turbo Man. Trans.):

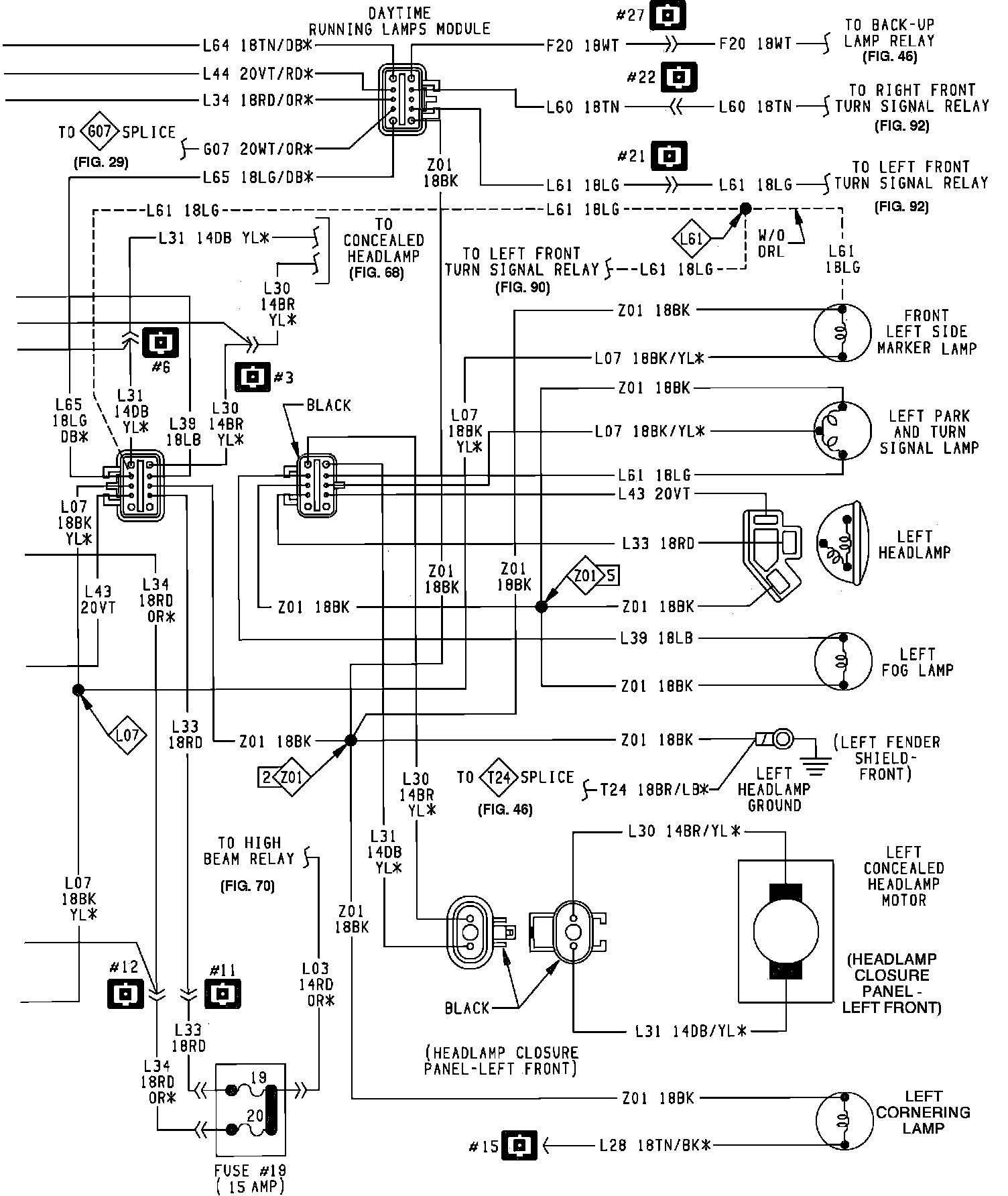

Front End Lighting (Turbo Man. Trans.):
