Home
>>
Dodge
>>
1990
>>
Daytona Shelby L4-135 2.2L SOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antitheft and Alarm Systems
Antitheft and Alarm Systems

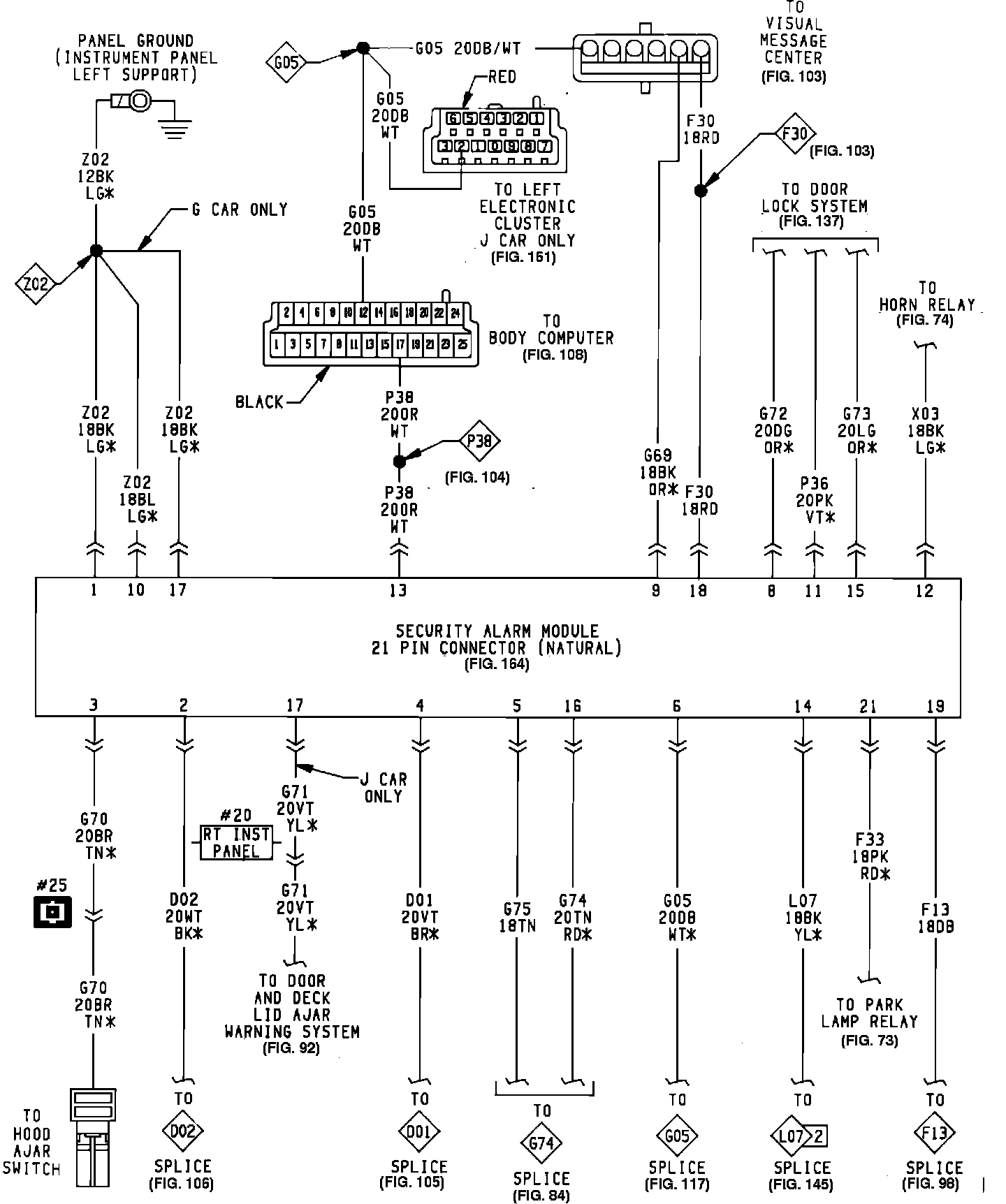

Security Alarm System (Mechanical Cluster):
