Without T-Roof

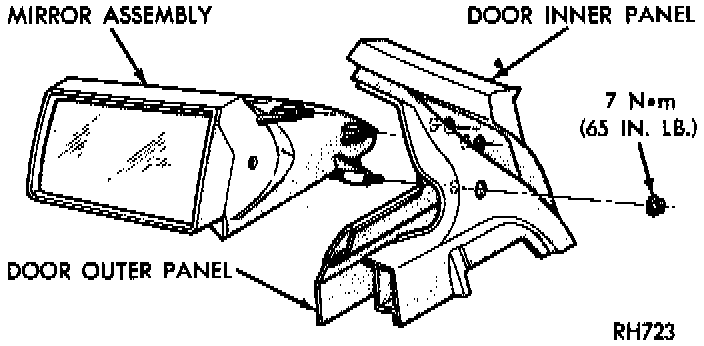

Exterior Rear View Mirror Mounting:

1. Remove trim panel from door.
2. Disconnect mirror electrical connector.
3. Remove three plugs used to conceal the mirror mounting nuts.
4. Remove the three mirror mounting nuts.
5. Remove mirror assembly.
6. Reverse this procedure to install.
