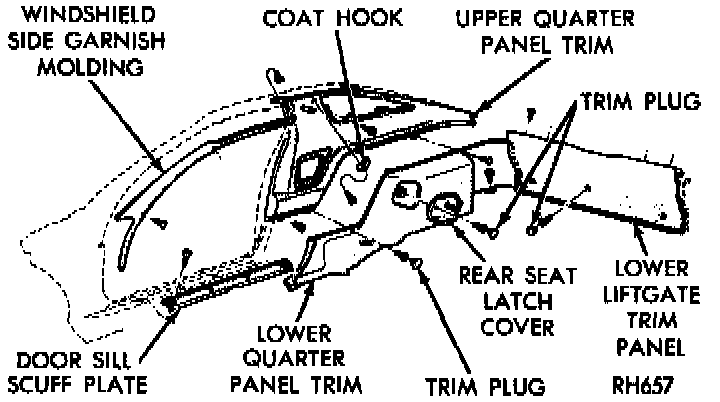

Lower Quarter Trim Panel

Quarter Trim:

1. Disconnect battery.
2. Remove lower liftgate trim panel.
3. Remove door sill scuff plate.
4. Remove rear seat latch cover.
5. Remove lower quarter trim panel fasteners.
6. Remove lower quarter trim panel.
7. Reverse this procedure to install.
