Maintenance Required Lamp/Indicator: Service and Repair

1988-91 DODGE & PLYMOUTH COLT VISTA

This lamp will be illuminated at 50,000, 80,000, 100,000 and 150,000 miles to indicate interval for emission control system inspection.

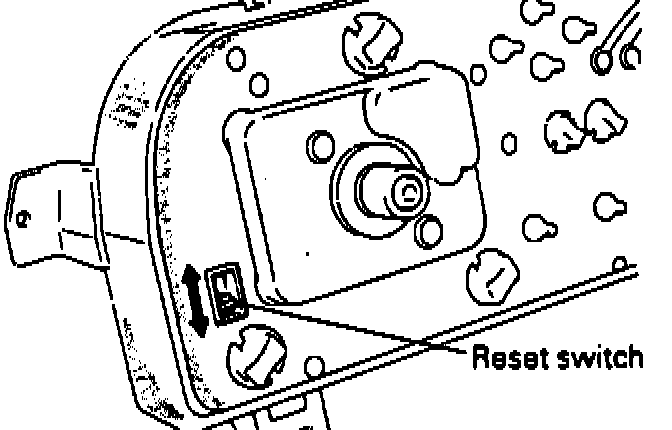

Reset Switch Position, 1985-91 Colt Vista:

After performing emission control system inspection at the 50,000, 80,000 or 100,000 mile interval, the lamp can be reset by moving the reset switch lever located at the rear of the instrument cluster.

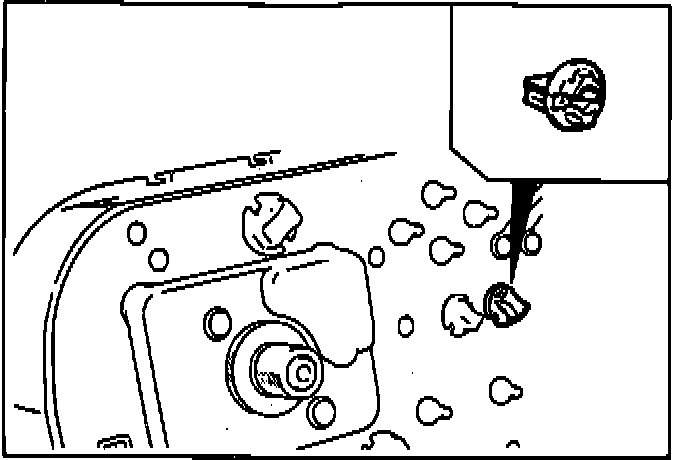

Maintenance Required Lamp Bulb Location:

At the 150,000 mile interval, after performing inspection, remove bulb from lamp socket.
