Console: Service and Repair

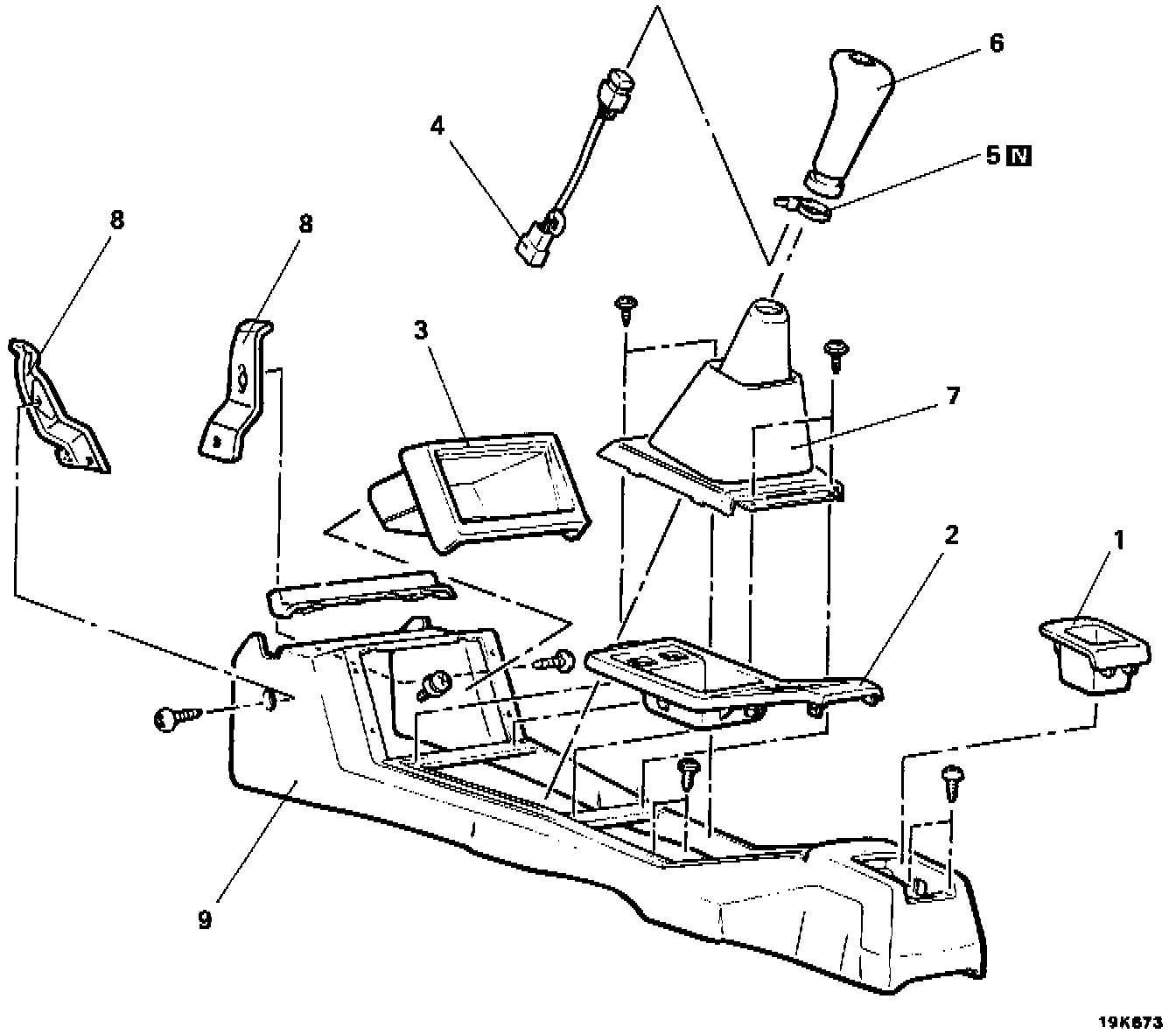

REMOVAL STEPS
1. Floor console box
2. Parking brake lever cover
3. Box panel
4. Connection of 4WD control switch connector
5. Band
6. Gearshift lever knob
7. Cover assembly
8. Reinforcement
9. Floor console

NOTES:
1. Reverse the removal procedures to reinstall.
2. N indicates non-reusable parts
