Water Pump: Service and Repair

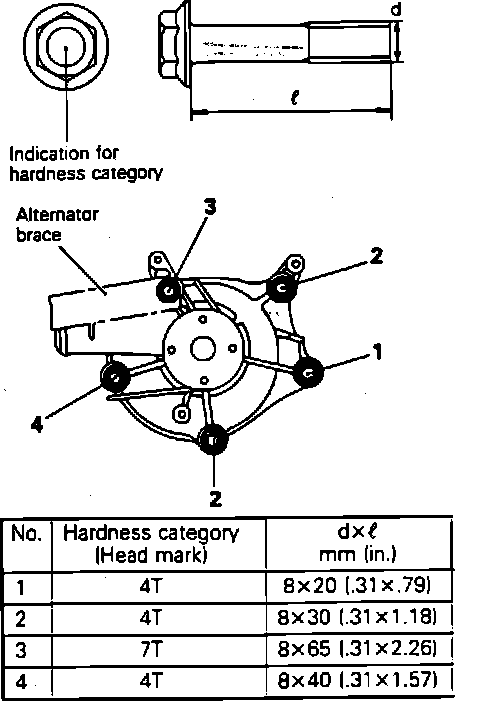

Fig. 25 Water Pump Attaching Bolt Identification & Installation:

1. Disconnect battery ground cable and drain cooling system.
2. Remove fan shroud, then disconnect lower radiator hose.
3. Remove drive belt cooling fan and pulley.
4. Place No. 1 piston at top dead center, compression stroke.
5. Remove camshaft pulley, timing belt covers, timing belt, camshaft sprocket, upper under cover and timing belt tensioner.
6. Remove water pump mounting bolts and the water pump.
7. Reverse procedure to install. Refer to Fig. 25, for water pump attaching bolt identification and installation.
