Console: Service and Repair

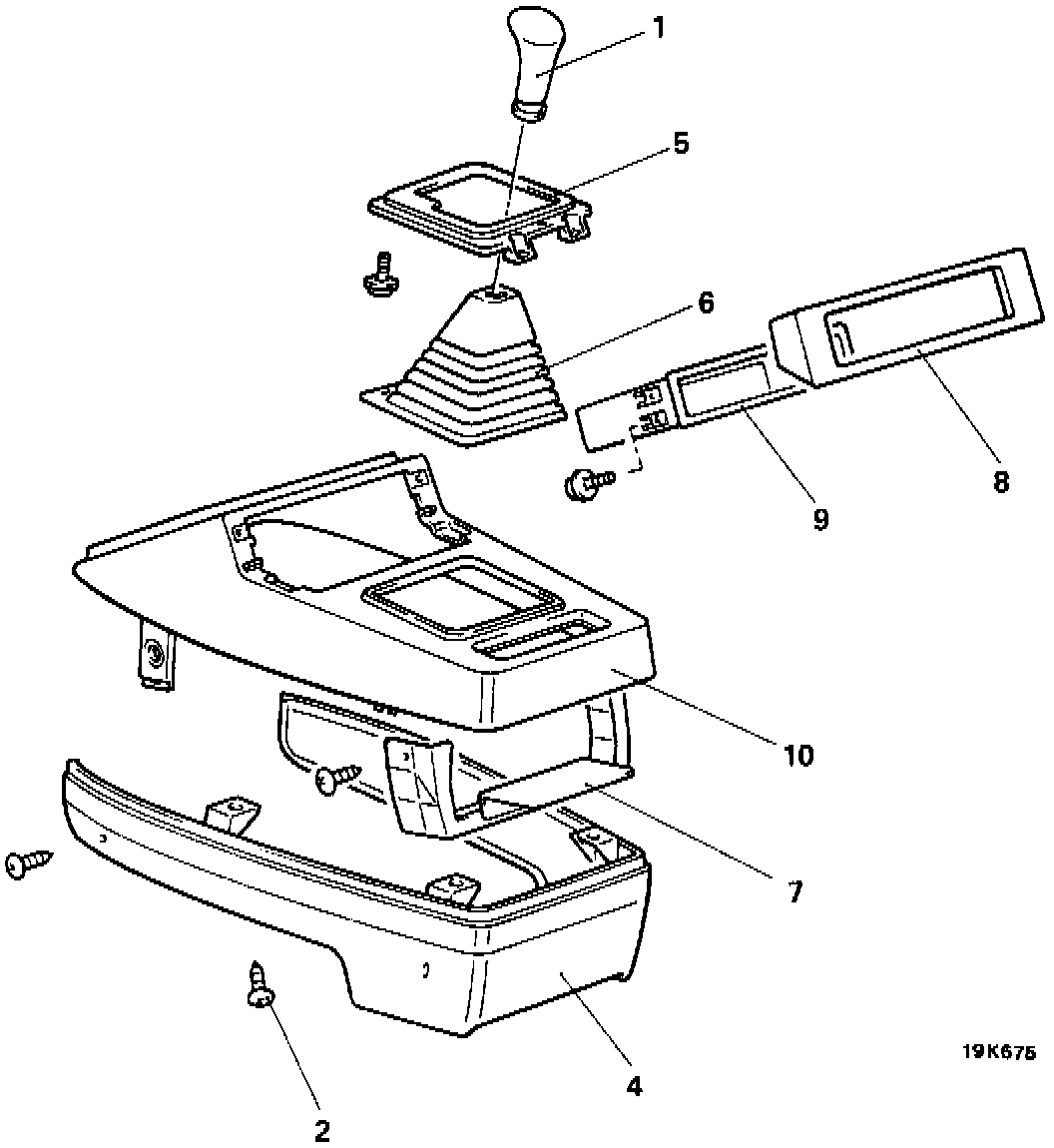

REMOVAL STOPS
1. Gearshift lever knob
2. Floor console mounting screw
3. Floor console assembly (Parts of No. 4 to 10.)
4. Console lower cover
5. Gearshift lever panel
6. Gearshift lever boot
7. Console bracket
8. Panel
9. Box
10. Floor console

NOTE: Reverse the removal procedures to reinstall.
