Hazard Warning Lamps
Hazard Warning Lamps

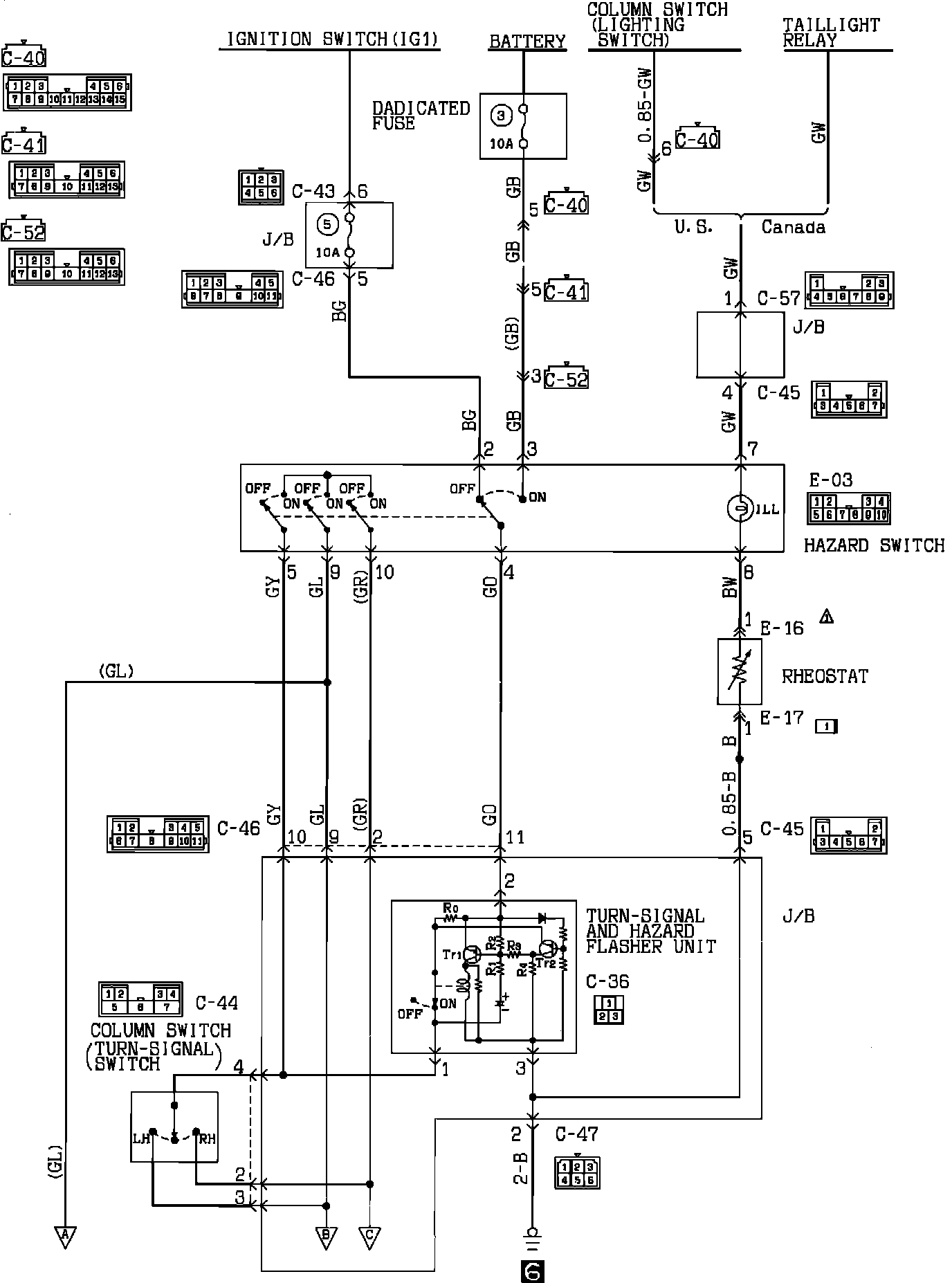

Hazard & Turn Signal Lamps - Part 1:

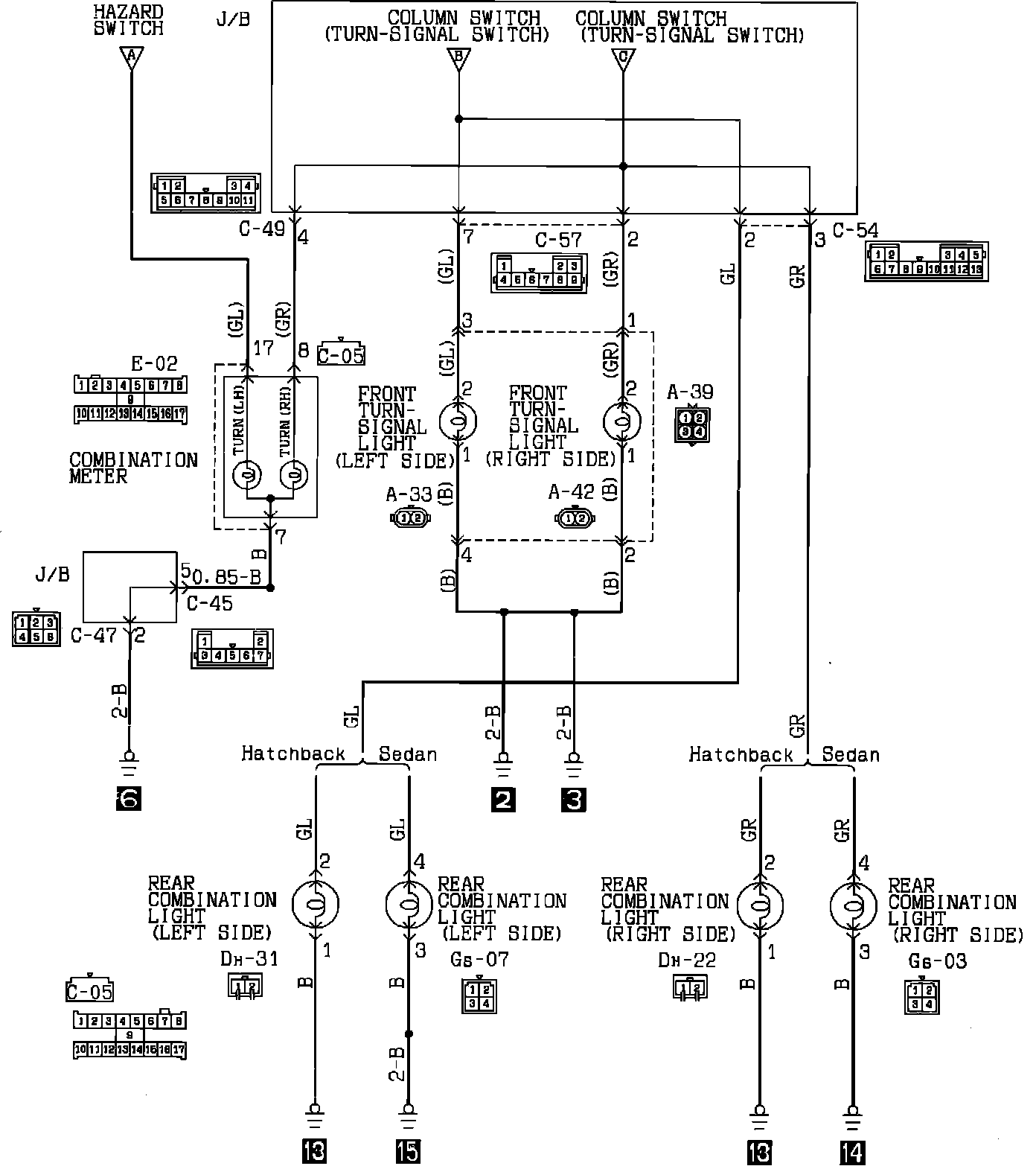

Hazard & Turn Signal Lamps - Part 2:
