DR-2 CODE to DR TEST Chart (Fault Code Test)

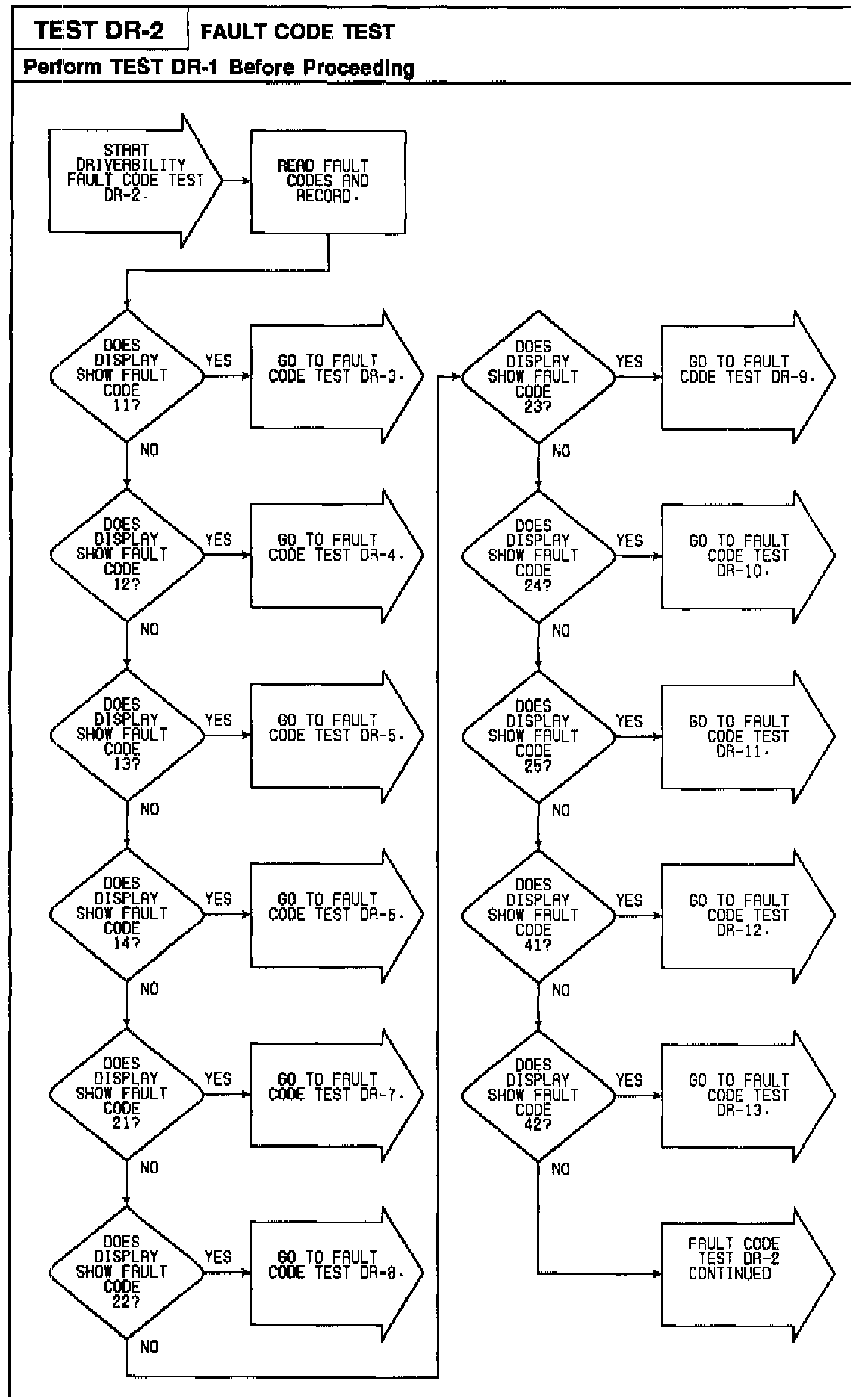

Part 1 of 2:



Part 1 of 2:

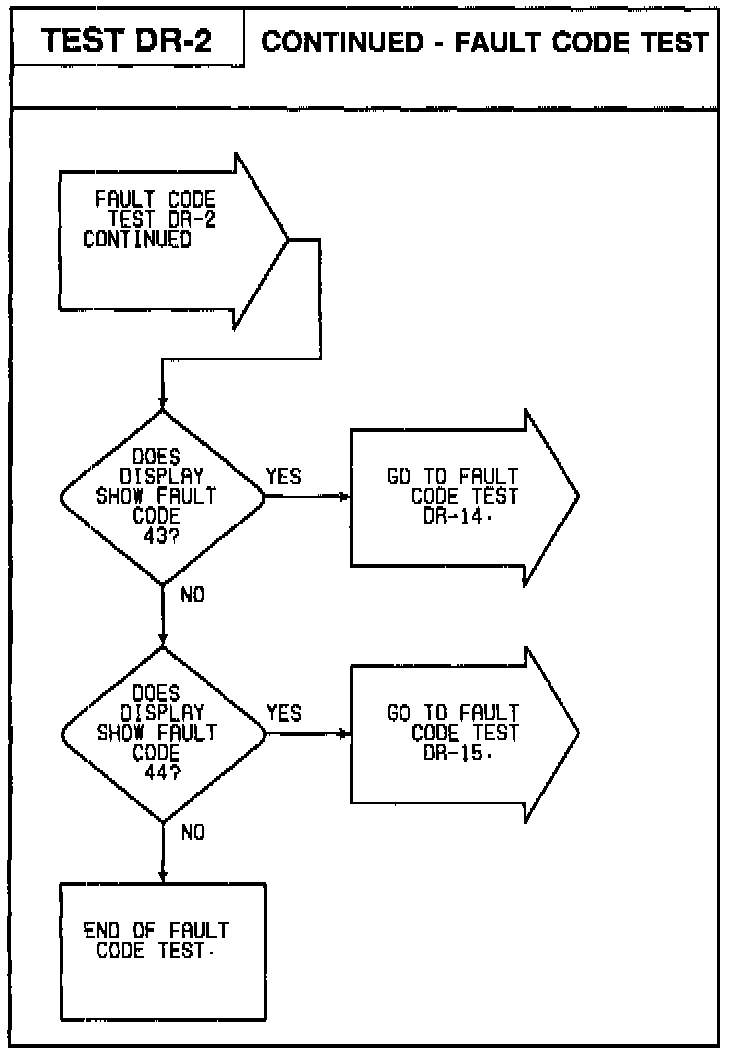

Part 2 of 2:



Part 2 of 2:
