Dodge
>>
1990
>>
Colt L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>

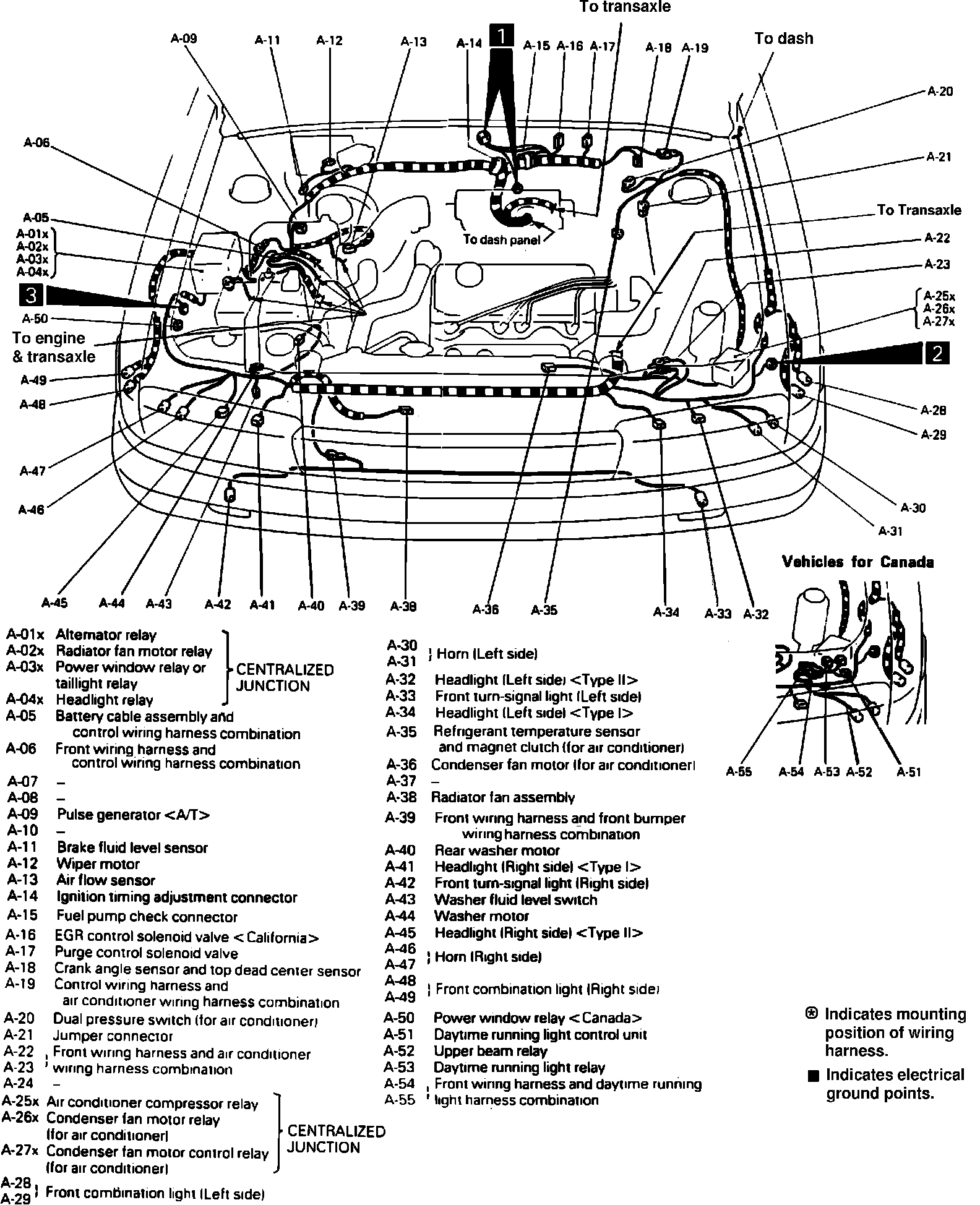

Engine Compartment Connector Locations
Engine Compartment Connector Locations

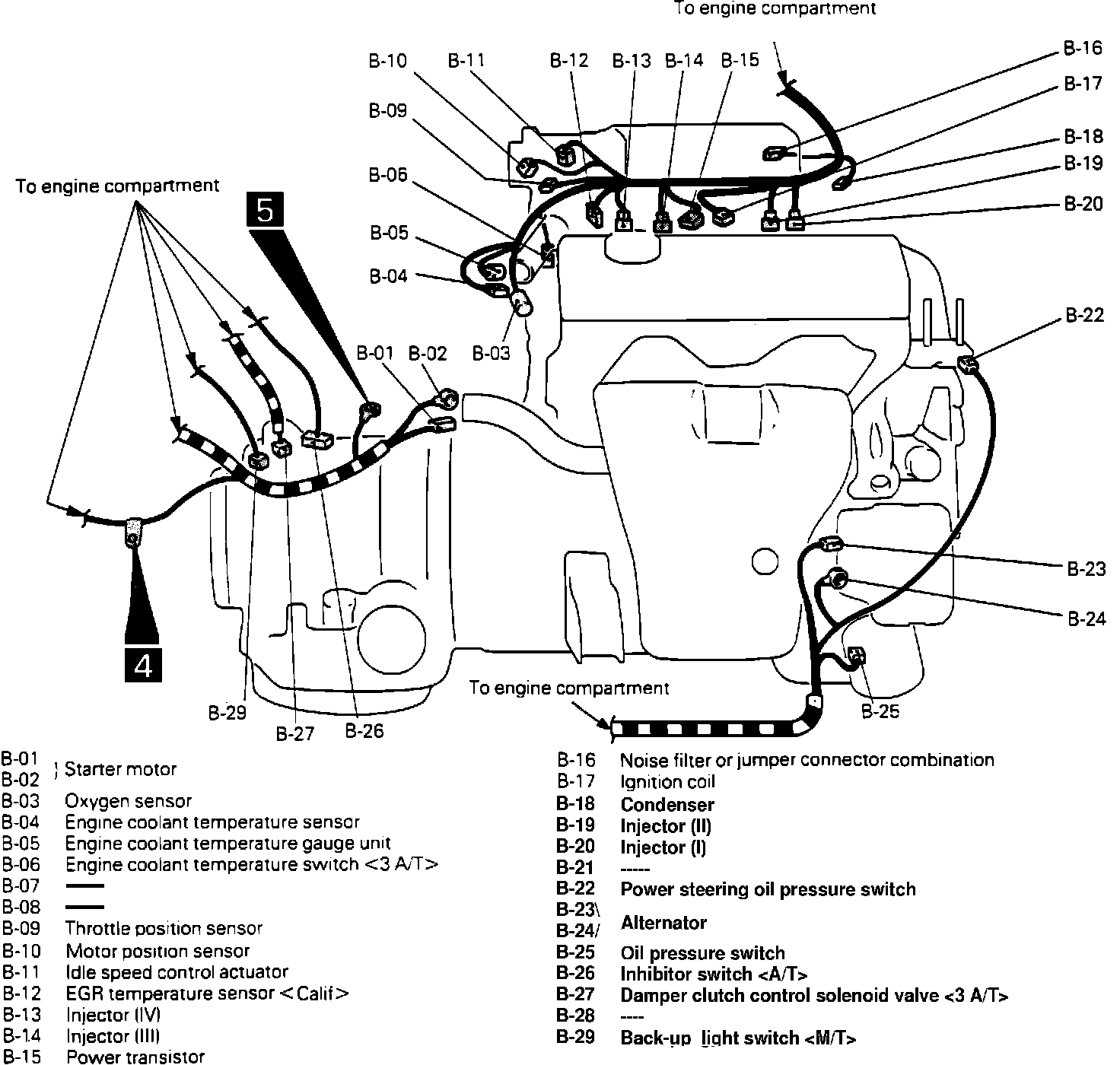

Component Connectors:
Engine Compartment Harness Connections:
