Home >> Dodge >> 1988 >> Shadow L4-153 2.5L SOHC >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Switch >> Diagrams

Power Window Switch: Diagrams

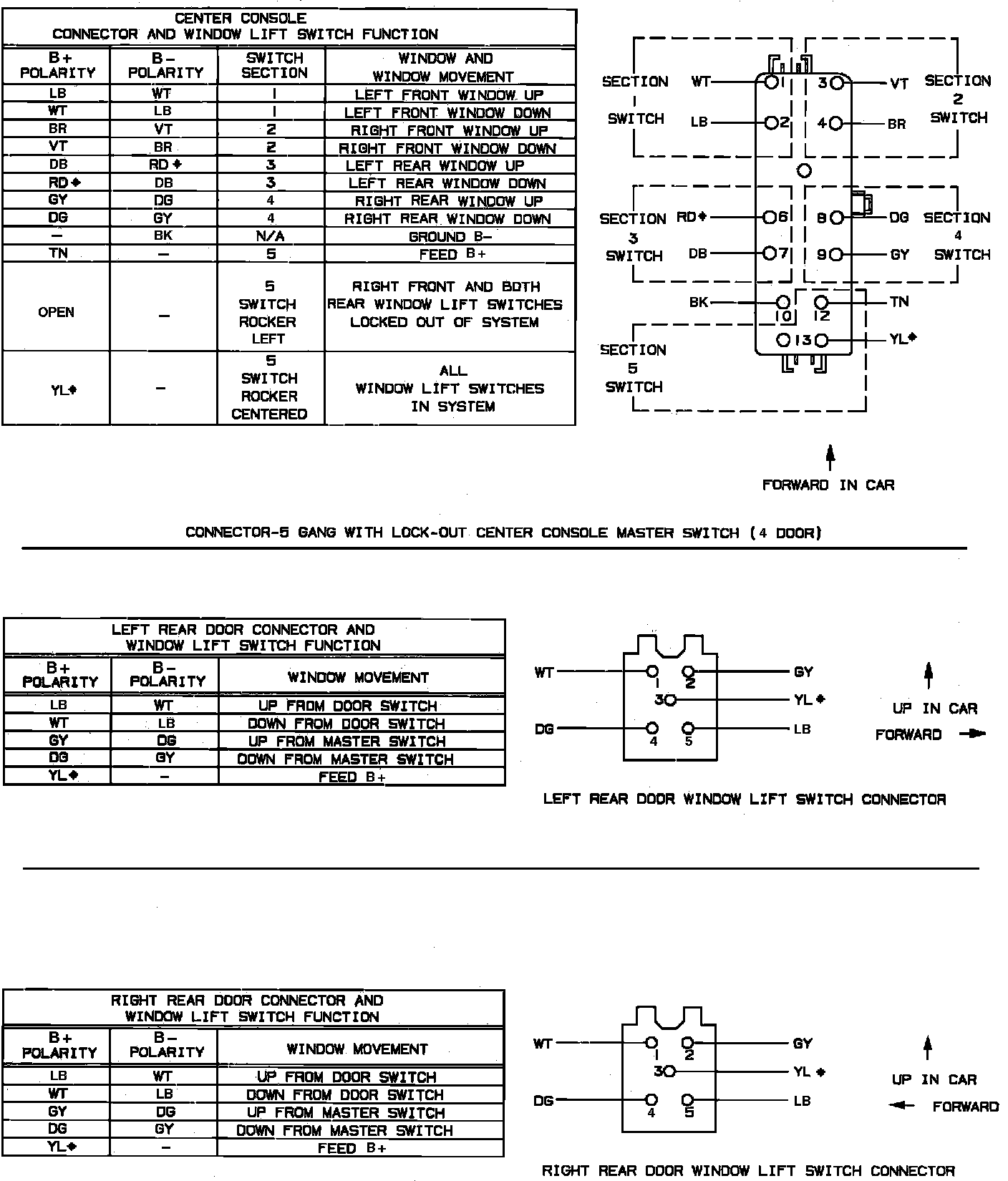

Power Window Connector:
