B. Lubricate the Track:

1. Disconnect the shoulder belt buckle from the carrier.

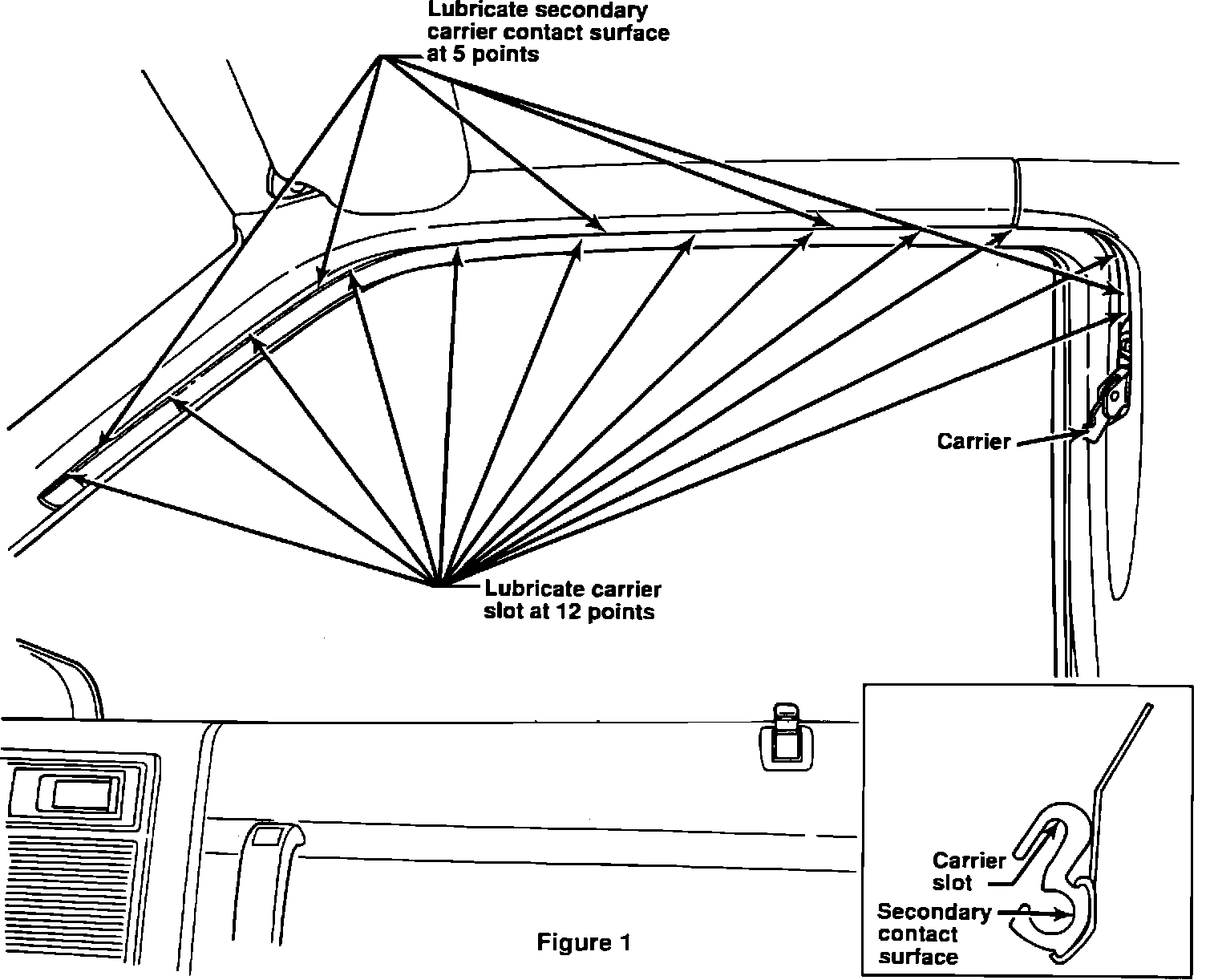

2. Apply a 1/4" diameter dot of the supplied lubricant at 12 points along the length of the carrier slot in the rail (Figure 1).

CAUTION:
Cover soft trim/seats prior to lubrication. Do not let the lubricant come in contact with the interior soft trim as it may damage the finish.

3. Apply a 1/4" diameter dot of lubricant at 5 points along the secondary carrier contact surface on the rail (Figure 1).

4. Connect the belt to the carrier and cycle the carrier several times to insure proper distribution of the lubricant.
