Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Dodge
>>
1988
>>
Shadow L4-135 2.2L SOHC
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

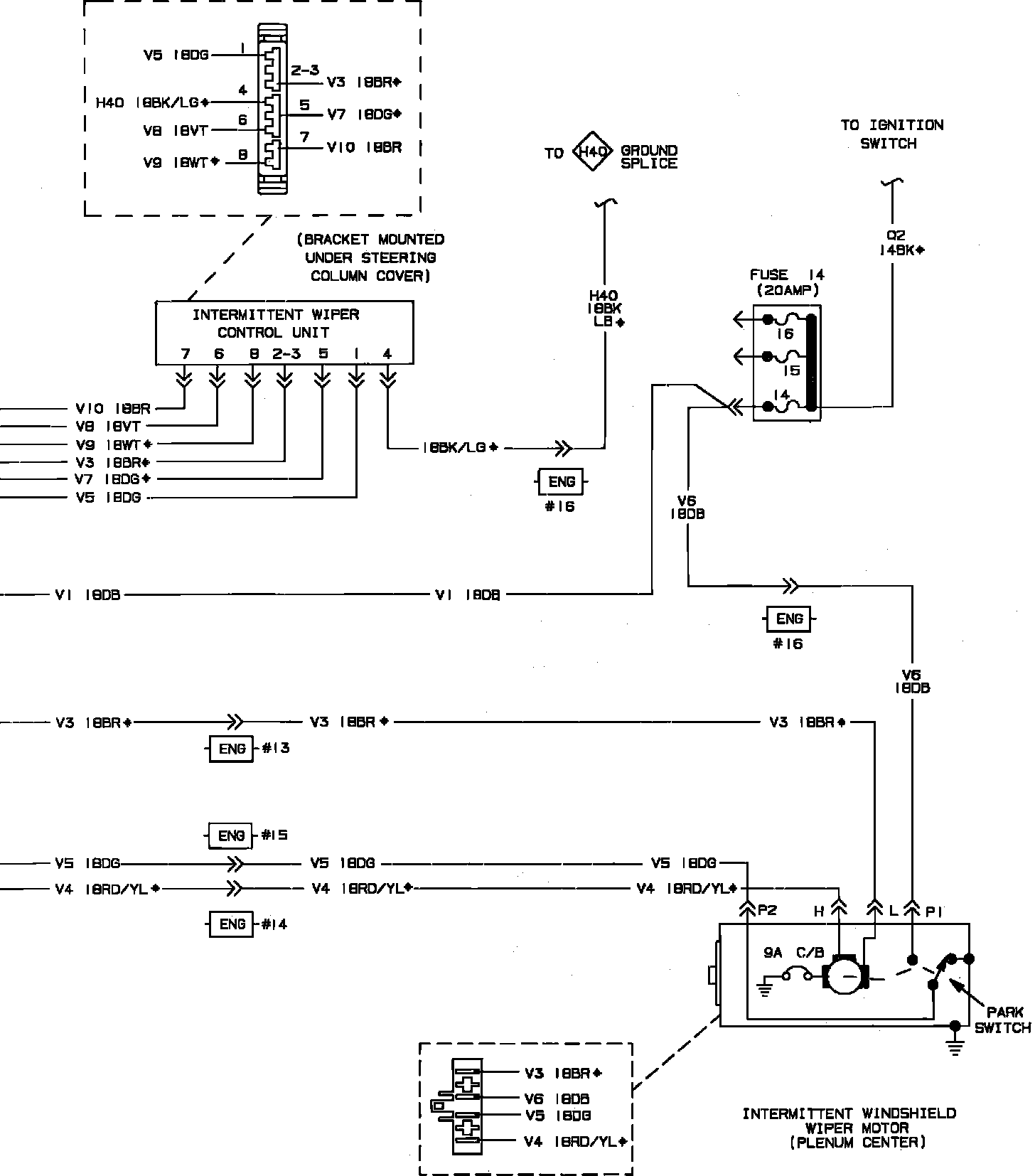

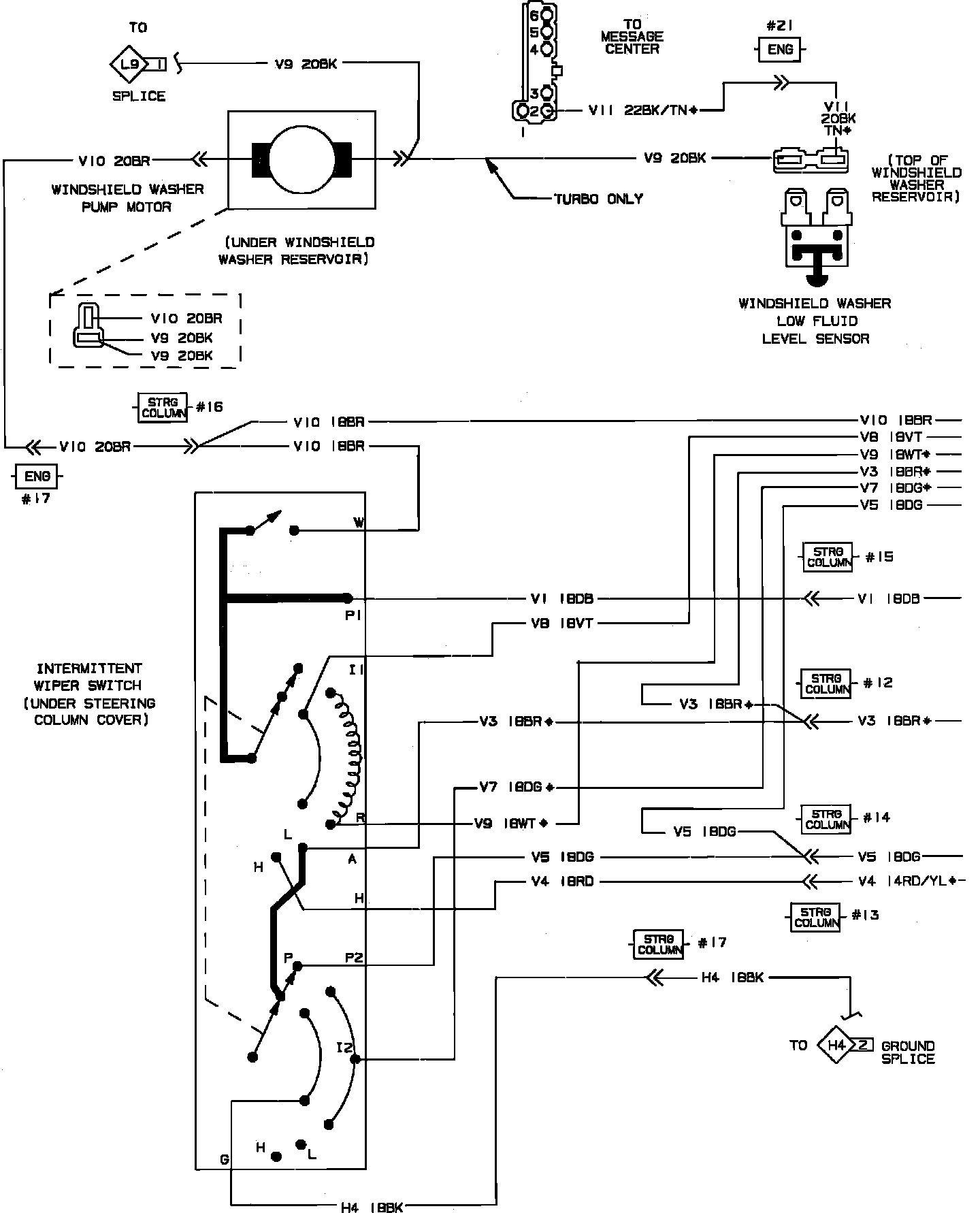

Windshield Wiper System Wiring Circuit:
Windshield Wiper System Wiring Circuit:
