Removal

1. Disconnect battery.

2. Scribe hood hinge outline on hood and remove hood.

3. Drain cooling system.

4. Remove hoses from radiator and engine.

5. Remove radiator and fan assembly.

6. Remove air cleaner and hoses.

Fig. 18 Alternator & A/C compressor mounting bracket removal:

7. Remove air conditioning compressor mounting bolts and set compressor aside (if so equipped).

8. Remove power steering pump mounting bolts and set pump aside (if so equipped).

9. Remove oil filter.

10. Disconnect fuel line, heater hose and accelerator cable.

11. Remove alternator mounting bolts and set alternator aside.

12. Disconnect all electrical connections at alternator, carburetor/throttle body and engine.

13. MANUAL TRANSMISSION
a. Disconnect clutch cable.
b. Remove transmission case lower cover.
c. Disconnect exhaust pipe at manifold.
d. Disconnect starter and lay aside.
e. Install transmission holding fixture.

14. AUTOMATIC TRANSMISSION
a. Disconnect exhaust pipe at manifold.
b. Disconnect starter and lay aside.
c. Remove transmission case lower cover.
d. Mark flex plate to torque converter.
e. Remove screws holding torque converter to flex plate.


15. Install transmission holding fixture.

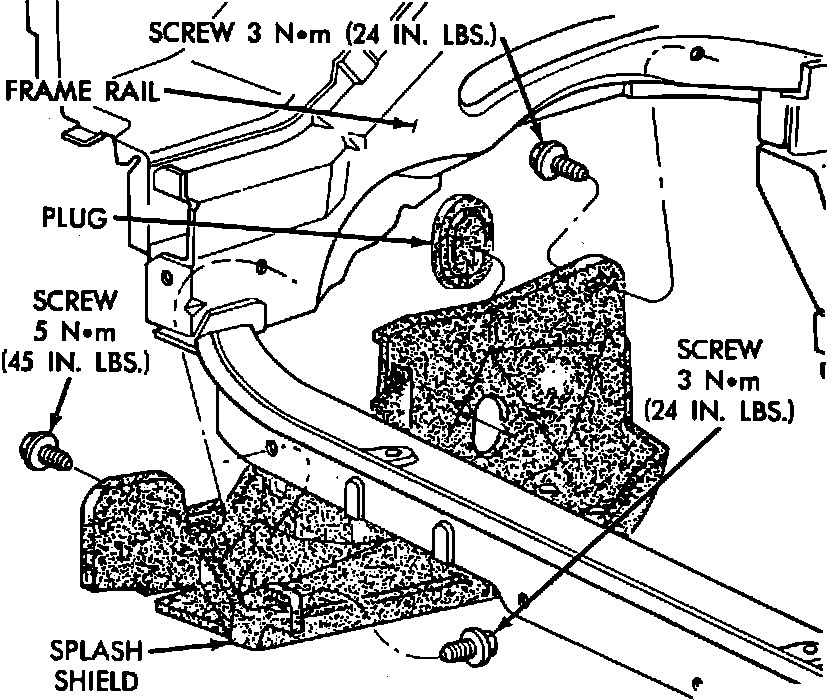

Fig. 1 Right Inner Splash Shield:

16. Remove right inner splash shield.

17. Remove ground strap.

Fig. 2 Engine Mounting:

18. To lower engine separate right engine bracket from yoke bracket. To raise engine remove long bolt through yoke and insulator. If insulator to rail screws are to be removed, mark insulator position on side rail to insure exact reinstallation.

19. Remove transmission case to cylinder block mounting screws.

CAUTION: Make sure clutch cable has been disconnected.

20. Remove front engine mount screw and nut.

21. Remove manual transmission anti roll strut.

22. Remove left insulator through bolt (from inside wheelhouse) or insulator bracket to transmission screws.

23. Remove engine from vehicle.
