Dodge
>>
1988
>>
Shadow L4-135 2.2L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Windows
>>
4 Door
4 Door

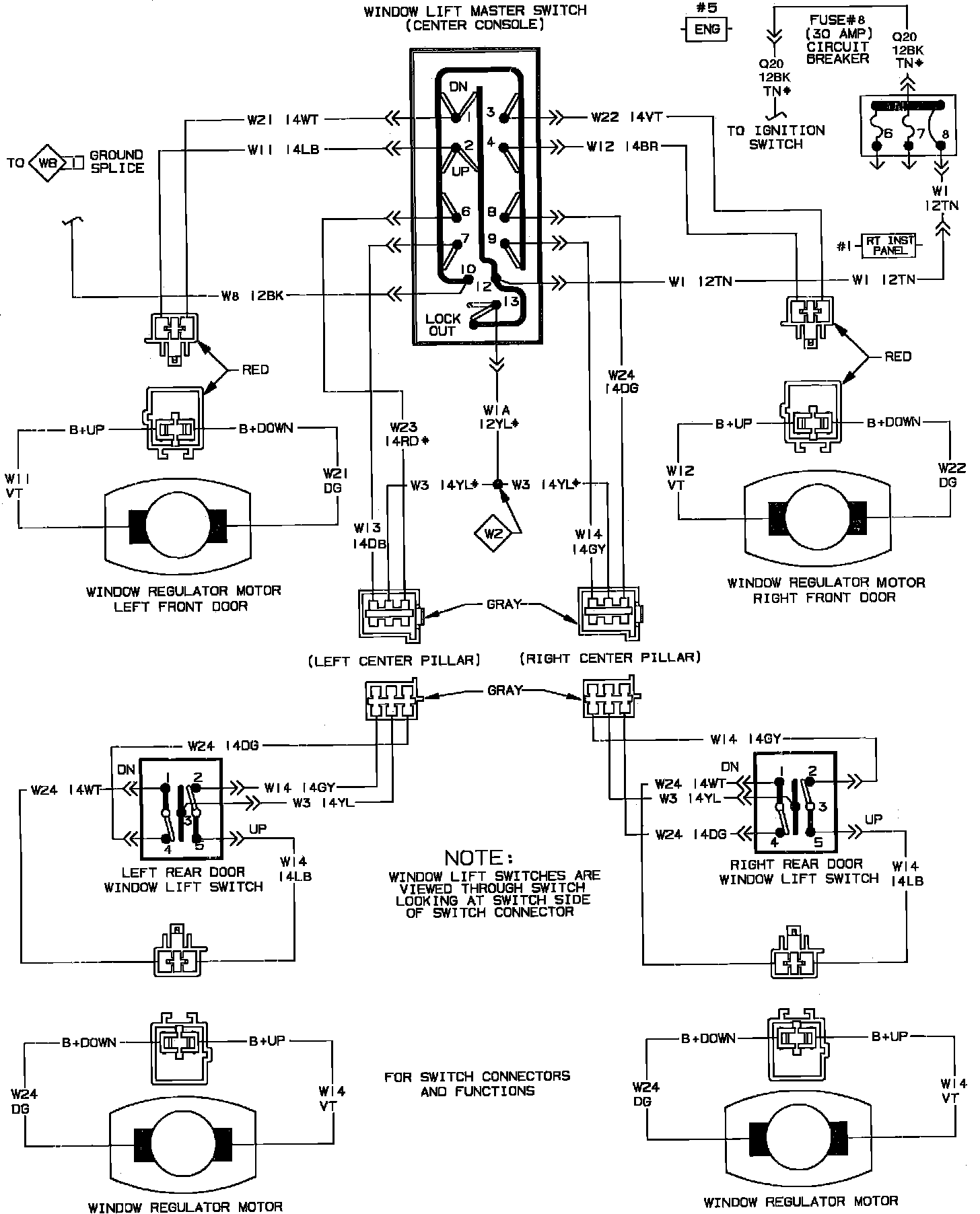

Power Window System Wiring Circuit (4 Door). Instrument Panel:
