Cooling System
>>
System Diagram
>>
With Air Conditioning
With Air Conditioning
Air Conditioning & Heater Wiring Circuit.(Part 1 of 2):

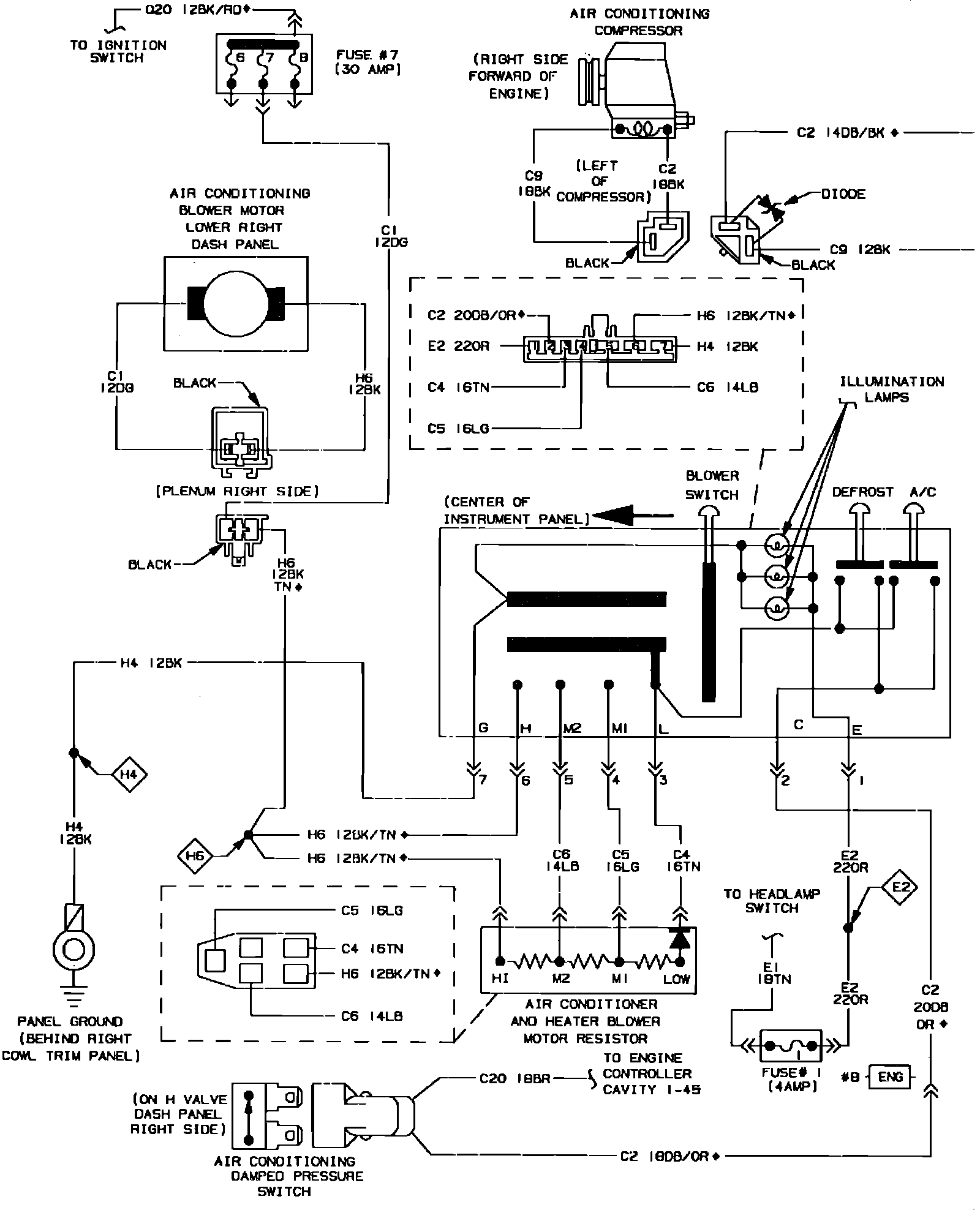

Air Conditioning & Heater Wiring Circuit. (Part 2 of 2):
